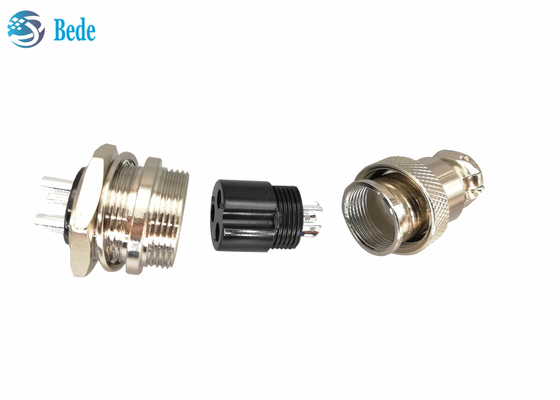

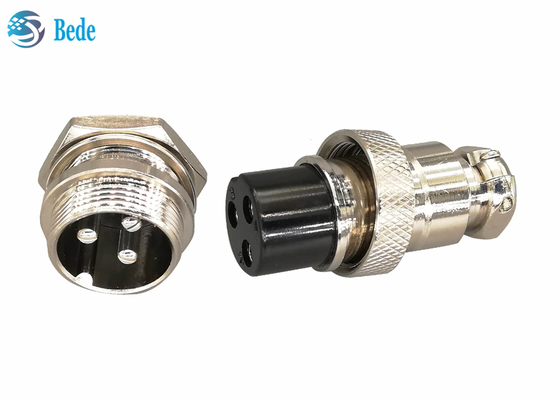

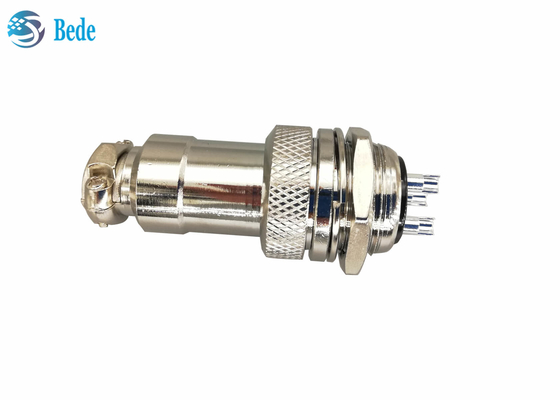

Front Mounting Circular Gx20 Connector Male & Female Kits 2~10 / 12/ 14 / 15 Pins

Front Mounting Circular Gx20 Connector Male & Female Kits 2~10 / 12/ 14 / 15 Pins
Front Mounting Circular Gx20 Connector Male & Female Kits 2~10 / 12/ 14 / 15 Pins Front Mounting Circular Gx20 Connector Male & Female Kits 2~10 / 12/ 14 / 15 Pins Front Mounting Circular Gx20 Connector Male & Female Kits 2~10 / 12/ 14 / 15 Pins Front Mounting Circular Gx20 Connector Male & Female Kits 2~10 / 12/ 14 / 15 Pins

Large Image :  Front Mounting Circular Gx20 Connector Male & Female Kits 2~10 / 12/ 14 / 15 Pins

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: CE
Model Number: GX-20-2~10/12/14/15
Payment & Shipping Terms:
Minimum Order Quantity: 200sets
Price: negotiation
Packaging Details: PE bags, 200 stes per carton
Delivery Time: 2 days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 8000 sets per day
Contact Now
Detailed Product Description
Housing Material: Zinc Alloy Insulation Materials: Bakelite
Contact Material: Copper, Silver Plated Fastener Material: Stainless Steel
Operating Temperature: -20 ~ +85℃ Mounting Holes: M16
Wiring Type: Welding Application: Aviation Navigation
Highlight:

Gx20 Connector 14 Pins

,

Gx20 Connector 15 Pins

,

Gx20 12 pin circular connectors

Front Mounting Circular Gx20 Connector Male & Female Kits 2~10 / 12/ 14 / 15 Pins​

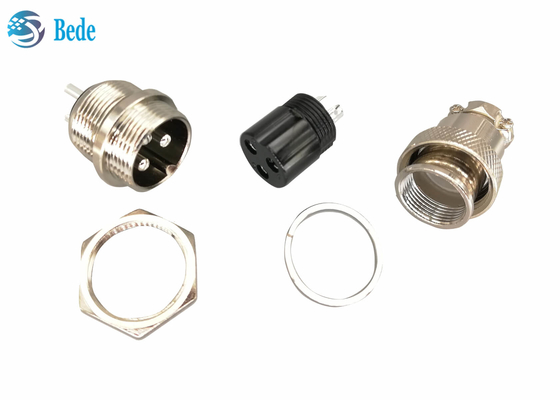

Structure

  1. nut, stainless steel, for installing male plug on panel
  2. spring washer, stainless steel
  3. male plug, mounted on the panel after soldering the wires
  4. bakelite,
  5. housing for female end
  6. nut, fixed plug and socket after connection
  7. contacter, brass material, silver plated,

Front Mounting Circular Gx20 Connector Male & Female Kits 2~10 / 12/ 14 / 15 Pins 0

Electricity data

poles 2 pin 3 4 5 pins 6 7 8 9 10 12 14 15 pins
Rated voltage 250V 250V 150V
Rated current 10A 7A 5A
Operating Voltage 200V 200V 200V
Insulation resistance 1000MΩ
Contact resistance 3mΩ





Front Mounting Circular Gx20 Connector Male & Female Kits 2~10 / 12/ 14 / 15 Pins 1



Similar product

Other types of GX20 products in stock, please contact us or back to the product catalog to know more

Front Mounting Circular Gx20 Connector Male & Female Kits 2~10 / 12/ 14 / 15 Pins 2
