Right Angle Gx12 3 Pin Connector PCB Soldering 90 Degree Pins 3A 200V

  • Right Angle Gx12 3 Pin Connector PCB Soldering 90 Degree Pins 3A 200V
  • Right Angle Gx12 3 Pin Connector PCB Soldering 90 Degree Pins 3A 200V
  • Right Angle Gx12 3 Pin Connector PCB Soldering 90 Degree Pins 3A 200V
Place of Origin China
Brand Name BEDE
Certification CE RoHS
Model Number GX12-BP-2 3 4
Minimum Order Quantity 200 sets
Price negotiation
Packaging Details 100sets per carton
Delivery Time 5 days after payment
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 10000 sets per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Zinc Alloy With Nickel Plated Pins Type 90 Degree
Rated Current 3A Rated Voltage 200V
Applicable Temperature -50~+70℃ Contact Resistance 0.003Ω
High Light

Gx12 3 Pin Connector

,

Right Angle m12 circular connector

,

200V m12 aviation connector
Leave a Message
Product Description

GX12 Aviation Connector 2 3 4 Pin PCB Soldering connector 90 Degree Pins 3A 200V

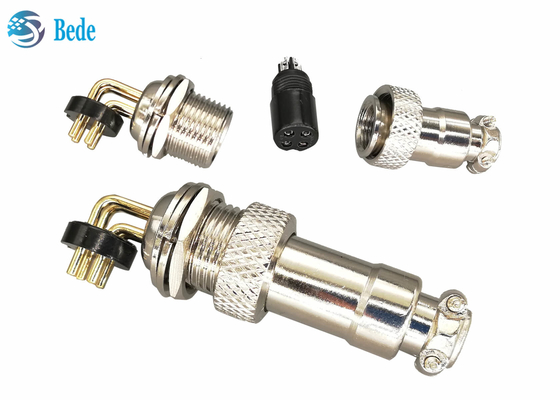

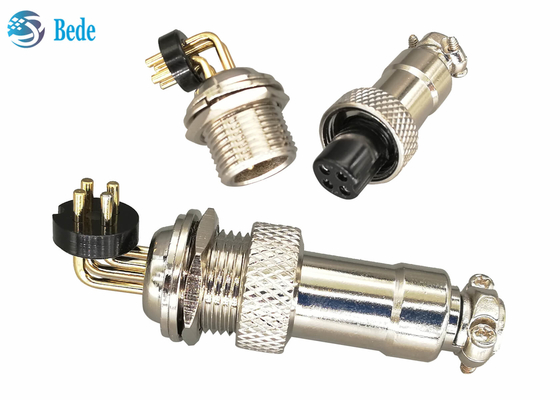

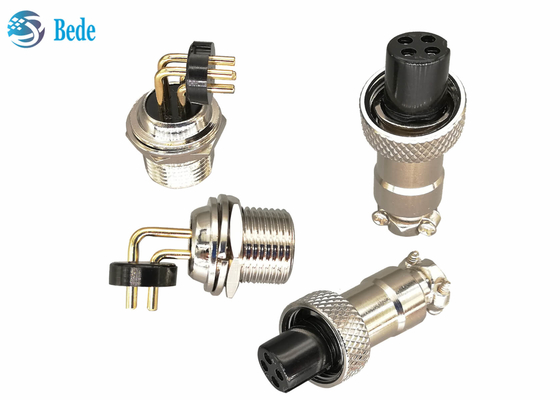

Product composition



1. male connector with right angle pins, housing material is zinc alloy with nickel plated, pins material is brass and insulator material is bakelite

2&3. spring washer and nut, stainless steel material, used for panel mounting

4. Female connector, bakelite material , black color

5, nut, zinc alloy with nickel plated, used for fixing male and female after connection

6, housing for female connecor, zinc alloy material with nickel palted



Right Angle Gx12 3 Pin Connector PCB Soldering 90 Degree Pins 3A 200V 0

Description

  • pins: 2 3 4 pin
  • male and female kits, buy male connector or female only is available
  • gx12, panel mounting hole should be 12mm
  • suitale for wire diameter 6 millimeters
  • applicable temperature -50 ~ +70 ℃
  • Rated current: 3A    Rated voltage: 200V

Right Angle Gx12 3 Pin Connector PCB Soldering 90 Degree Pins 3A 200V 1

Similar products

   GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and elbow pins, GX12 waterproof type, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking type, GX12 docking type waterproof

Right Angle Gx12 3 Pin Connector PCB Soldering 90 Degree Pins 3A 200V 2



Our Advantages

  1. 100% high quality, all failed parts get free warranty within 30 days after received.

    2. Accept 10 years warranty upon customer requirement.

    3. Repairs parts are available within 10years; we will inform the EOL products to you from time to time

    4. Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.

    5. Unique designed package for you can be provided upon customer requirement.

    6. Special feature and service can be provided upon requirement.





FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer, Our company's main product is Aviation Connector.
Q2: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q3: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q4: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q5: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
