8 9 10 12 14 15 Pins 200V 5A Gx20 Connector Docking Type Plug And Socket Kits

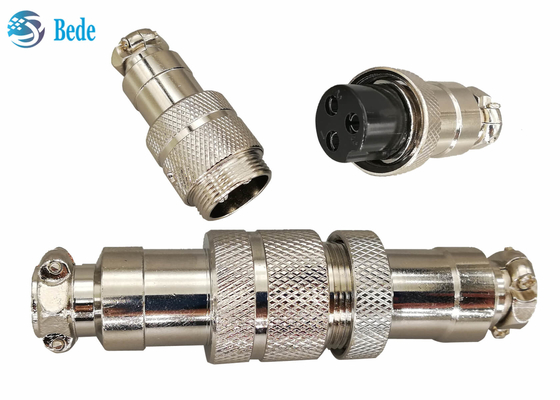

Large Image : 8 9 10 12 14 15 Pins 200V 5A Gx20 Connector Docking Type Plug And Socket Kits

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE, RoHS
Model Number:	GX-20-D-8/9/10/12/14/15

Payment & Shipping Terms:

Minimum Order Quantity:	80sets
Price:	negotiation
Packaging Details:	packing with PE bags, 100sets per carton
Delivery Time:	within 2 days after payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	4000 sets per day

Contact Now

Detailed Product Description

Housing Material:	Zinc Alloy	Contact Material:	Copper With Silver Plated
Poles:	8 9 10 12 14 15 Pins	Operating Voltage:	200V
Rated Current:	5A	Insulation Resistance:	1000MΩ
Contact Resistance:	0.003Ω	Applicable Temperature:	-50 ~ +70 ℃
Highlight:	Gx20 Connector 14Pins , Gx20 Connector 15Pins 5A , Gx20 aviation connector 8 pin

GX 20 Connector Docking Type Plug And Socket Kits 8 9 10 12 14 15 Pins 200V 5A

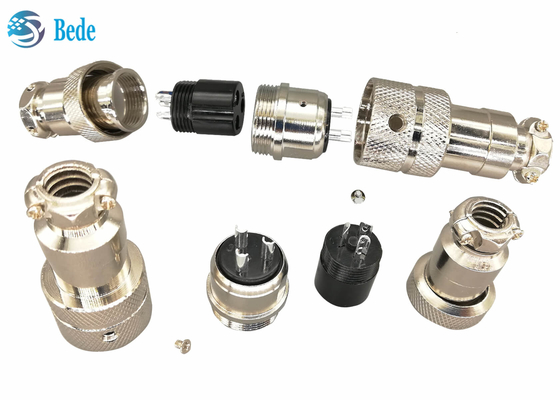

Structure

1. Housing for male end, zinc alloy materials,

2. Contacter, copper material, silver plated, good electrical conductivity and low contact resistance(0.003Ω).

3. Nut for locking male end and female end

4. Nut for fixing male end and housing

5. Male part, Solder one end of the wire, and connect the other end with the female part

6. Bakelite, main bady of female end,Insulation resistance 1000MΩ

7. Housing for female end, zinc alloy materials

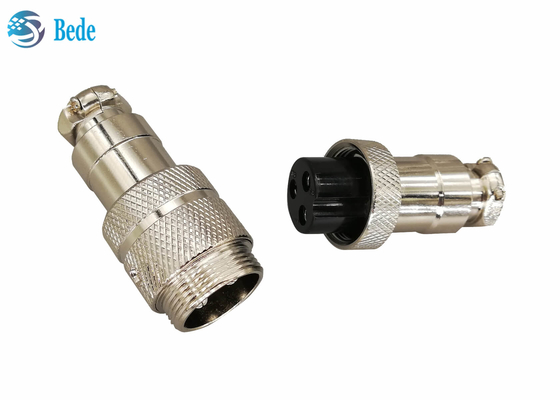

8 9 10 12 14 15 Pins 200V 5A Gx20 Connector Docking Type Plug And Socket Kits 0

Description

1. 8/9/10/12/14/15 pins for your opinion

2. Applicable temperature: -50℃ ~ +70℃

3.Widely used in aviation, navigation, industrial control, testing instruments and other fields

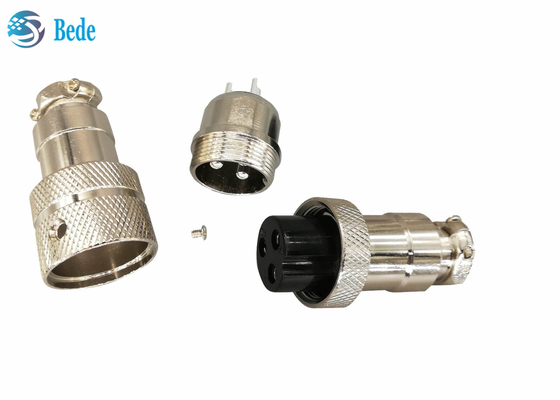

8 9 10 12 14 15 Pins 200V 5A Gx20 Connector Docking Type Plug And Socket Kits 1

Electrical parameters

Rated current	Rated voltage	Insulation resistance	Operating temperature
5A	150V	1000MΩ	-40 ~ +70 ℃

Similar product

Other types of GX20 products in stock, please contact us or back to the product catalog to know more

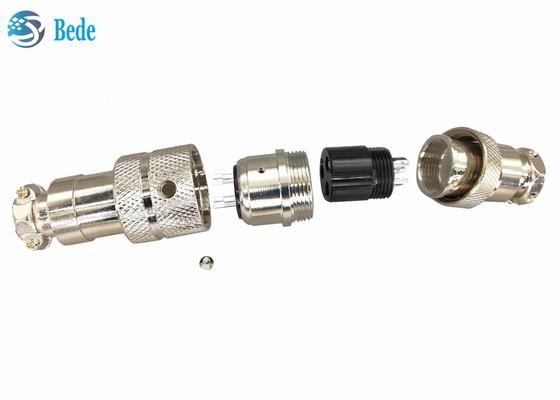

8 9 10 12 14 15 Pins 200V 5A Gx20 Connector Docking Type Plug And Socket Kits 2
