PCB Welding Model Gx12 Aviation Connector 2~7 Pin Panel Mount Connector 3A 200V

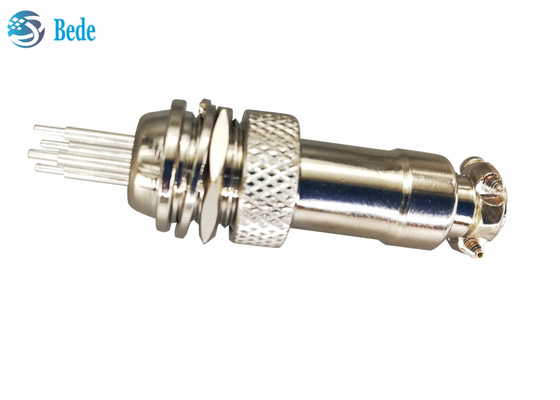

Large Image : PCB Welding Model Gx12 Aviation Connector 2~7 Pin Panel Mount Connector 3A 200V

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	GX12-SP-2~7

Payment & Shipping Terms:

Minimum Order Quantity:	100 sets
Price:	negotiation
Packaging Details:	100 sets per carton
Delivery Time:	within 4 days after payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	8500 sets per day

Contact Now

Detailed Product Description

Style:	PCB Welding	Rated Current:	3A
Rated Voltage:	200V	Pins:	2 3 4 5 6 7
Applicable Wire:	Φ≤6mm	Applicable Temperature:	-50℃ ~ +70℃
Highlight:	Gx12 Aviation Connector , Gx12 Aviation Connector , Gx12 panel mount connector

GX12 aviation connector PCB welding model 2~7 pin panel mount connector 3A 200V

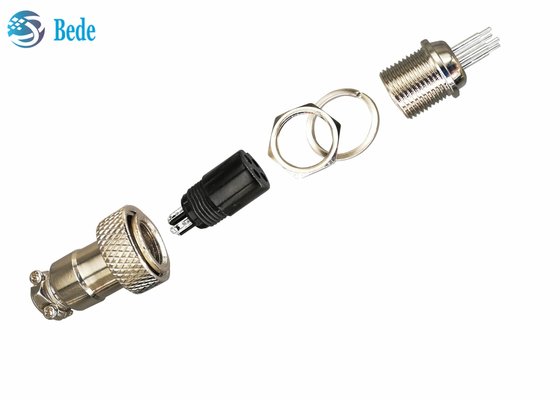

Structure

1. housing for female connector, zinc alloy material with nickel plated

2. Nut for fixing female and male after connection, zinc alloy material with nickel plated

3. contace pins, brass material with silver plated

4. bakelite, black color

5. nut and spring washer, stainless steel material, for mounting the male connector in the panel

6. male connector, panel mounting and PCB welding

Description

Military quality connectors for PCB welding
Panel mount type, mounting hole 12mm
pins 2 3 4 5 6 7
Applicable temperature -50~+70℃
Applicable cable Φ≤6mm

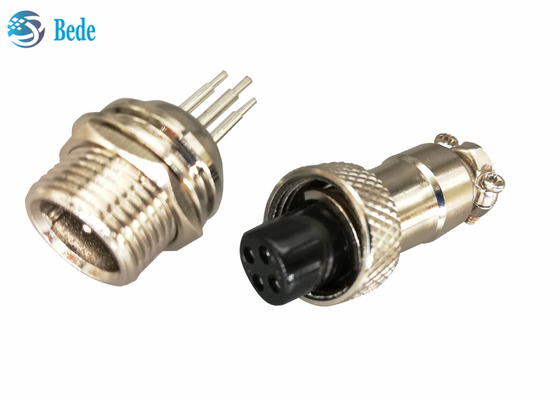

PCB Welding Model Gx12 Aviation Connector 2~7 Pin Panel Mount Connector 3A 200V 1

Similar Product

GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and right angle pins, GX12 waterproof type, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking type

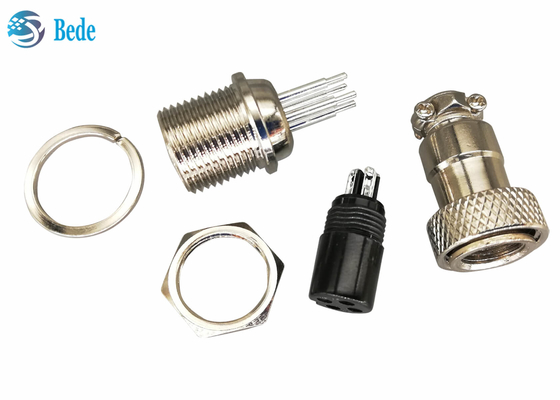

PCB Welding Model Gx12 Aviation Connector 2~7 Pin Panel Mount Connector 3A 200V 2
