Right Angle 3A 200V Gx12 Aviation Connector Zinc Alloy With Nickel Plated
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | CE RoHS |
| Model Number | GX12-BP-2/3/4/5/6/7 |
| Minimum Order Quantity | 100 sets |
| Price | negotiation |
| Packaging Details | 100sets per carton |
| Delivery Time | 5 days after payment |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 9000 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Zinc Alloy With Nickel Plated | Pins Style | Brass, Right Angle |
|---|---|---|---|
| Rated Current | 3A | Rated Voltage | 200V |
| Wire Diamete | 6 Millimeters | Contact Resistance | 0.003Ω |
| High Light | 200V Gx12 Aviation Connector,Right Angle Gx12 Aviation Connector,gx12 4 pin connector |
||
Product Description

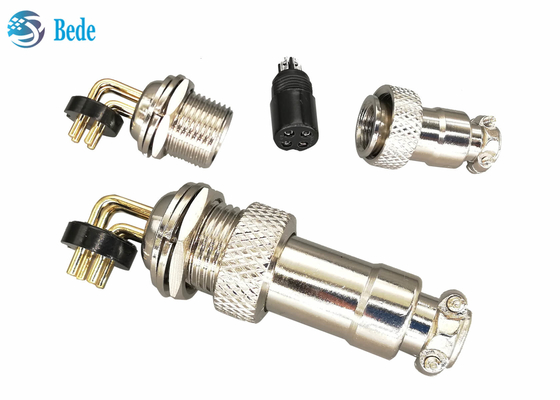

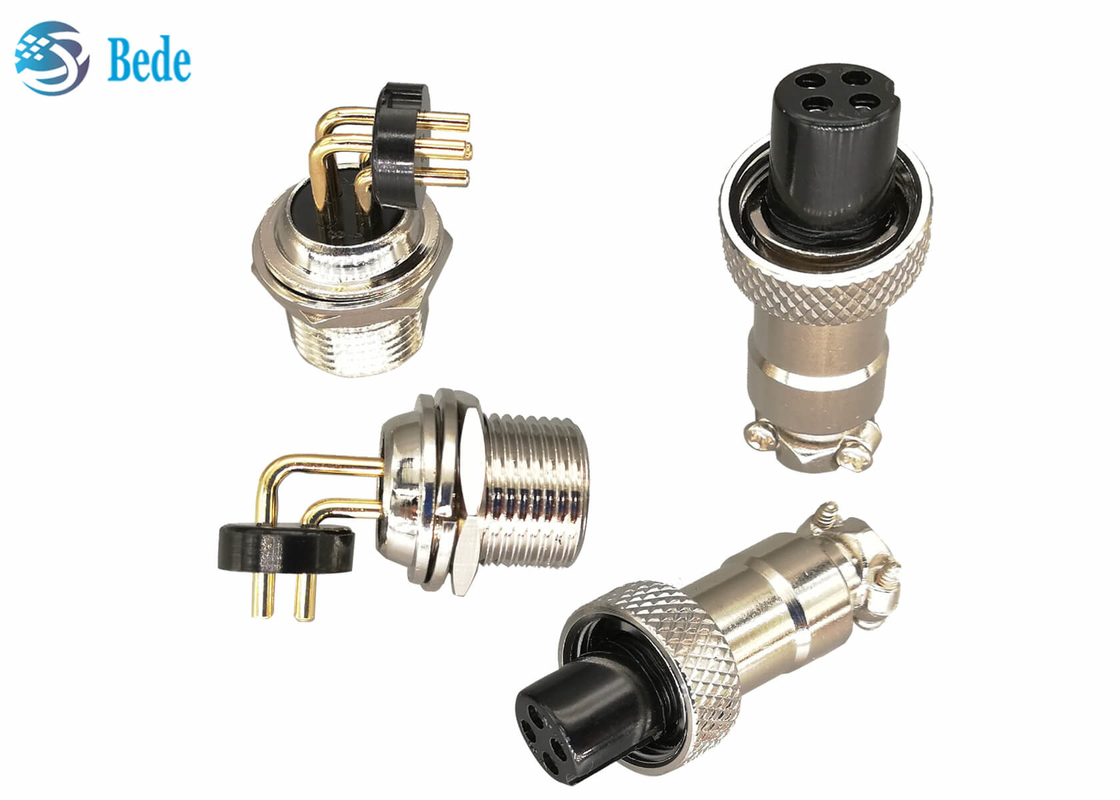

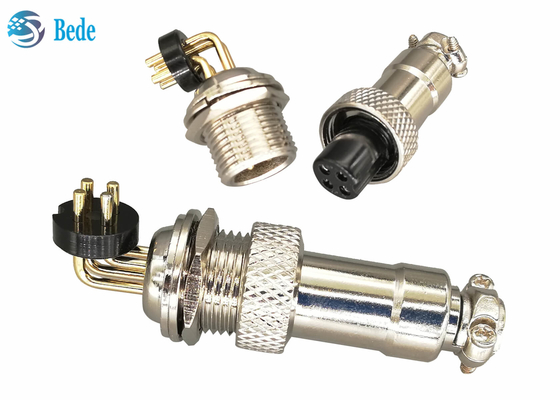

Right Angle 3A 200V Gx12 Aviation Connector Zinc Alloy With Nickel Plated
Product composition
1. male connector with right angle pins, housing material is zinc alloy with nickel plated, pins material is brass and insulator material is bakelite
2&3. spring washer and nut, stainless steel material, used for panel mounting
4. Female connector, bakelite material , black color
5, nut, zinc alloy with nickel plated, used for fixing male and female after connection
6, housing for female connecor, zinc alloy material with nickel palted
Description
This is a military grade connector for PCB soldering. Its housing is a zinc alloy material, nickel-plated, and the contact material is brass. The kit includes a female head and a male head, which are locked with a nut after connection, and are suitable for the external environment of -50~+70 degrees Celsius. The wiring method is welding; the size of the mounting hole is 12mm, and the applicable wire is 6mm.
Buyers can buy the whole set of products, or buy male connectors or female connectors separately, there are 2 3 4 5 6 7 pins to choose from, but we are factory direct sales, not retail, please pay attention to our minimum order quantity
Similar products
GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and elbow pins, GX12 waterproof type, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking type, GX12 docking type waterproof
Feature Of Aviation Connector
- Safe use in the field, thanks to a high degree of protection,high tensile strength, abrasion and notch resistance
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3. Soldering connection: proven connection technology for a large selection of different conductors
4. M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
5. High temperature 260 degree ,solder reflowing
6. 90 degree angled or straight(180 degree) overmolded M8 connector with PUR or PVC cable
7. Cable jacket with different colors,grey,black,orange,yellow,blue,overmolded color can be customized.
8. Connector Screw/Nut:Plastic/Brass/Stainless steel
9. A-coding/B-coing/D-coding - 2 pin 3 pin 4 pin 5 pin 6 pin 7 pin
