Brand Name: | BEDE |
Model Number: | AISG-3342 |
MOQ: | 120pcs |
Price: | negotiation |
Packaging Details: | packing in PE bag each and 120pcs per carton |
Payment Terms: | T/T, Western Union, |

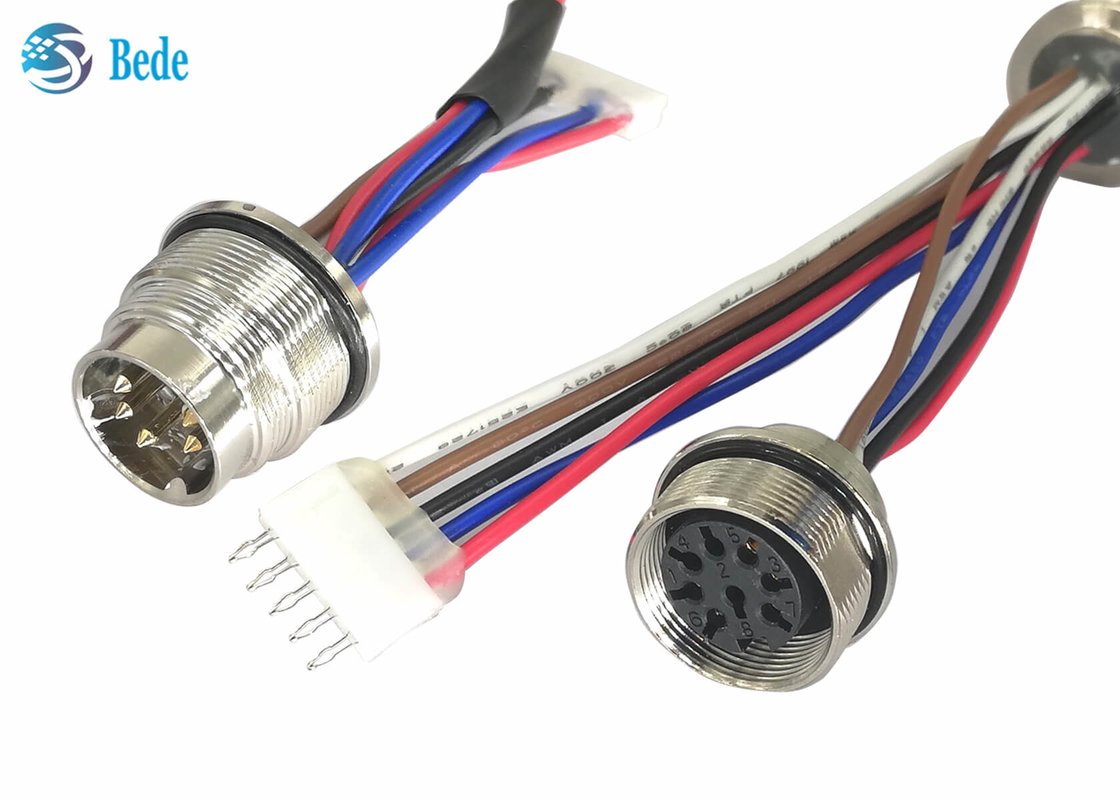

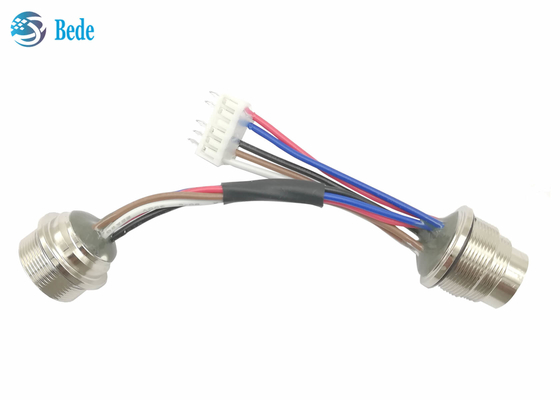

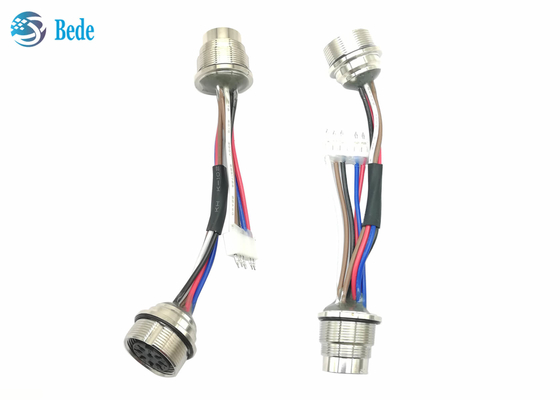

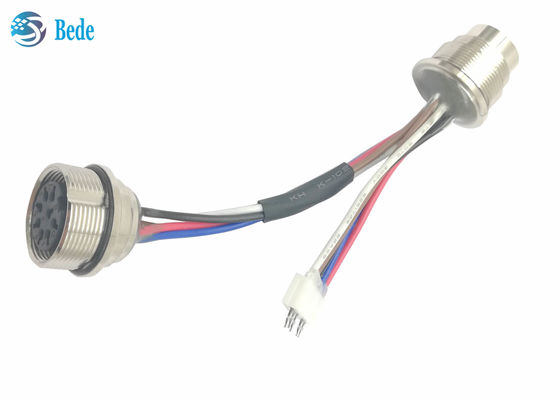

AISG RET control cable connector customized AISG inner cables waterproof IP68
Structure
1. contact pins, brass with silver plated,
2. male connector, this end can be customized as your needed
3. 18AWG wire, length 85 105 mm in stock, can be customized
4. O-ring, rubber ring for waterproof
5 AISG male connector, AISG C485 fixed connector style A1, housing material is copper with nickel palted
6. Contact pins, brass material with gold plated
7. insulator, PBT material
8. AISG female connector, Fixed connector, rear panel mounting, AISG C485 style A3
Remark:
1. the wire between 2 AISG connector length 60mm in stock, customization available
2. The positions marked ①②③ need to be sealed with hot melt glue or epoxy glue
3. Wires can be shielded or heat shrinkable as required, know more please feel free to contact us
4. About more infomation of AISG male and female connector, refer to AISG C485
Connection Pin Location
PIn No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
wire color | blue | / | white | / | brown | red | black | / |
