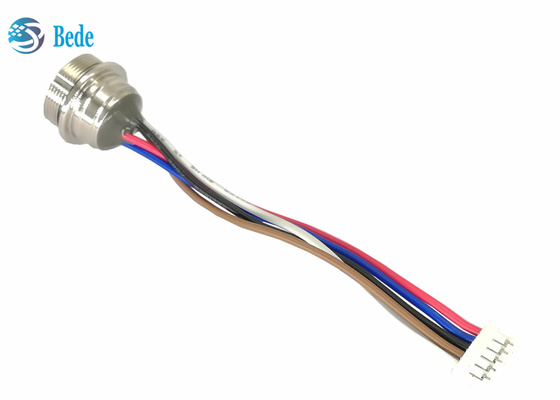

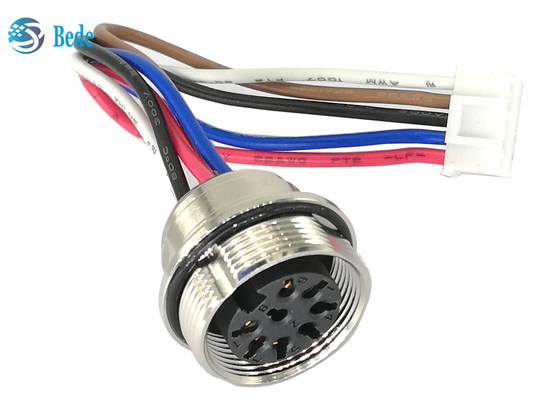

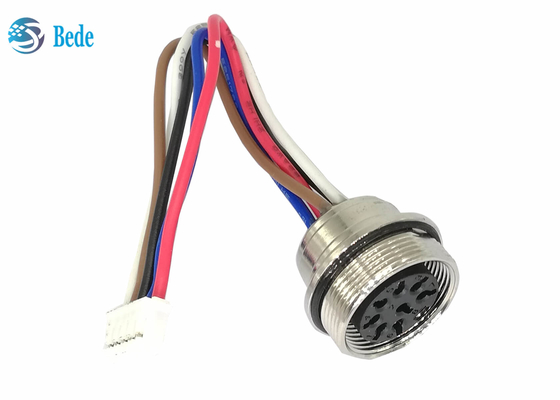

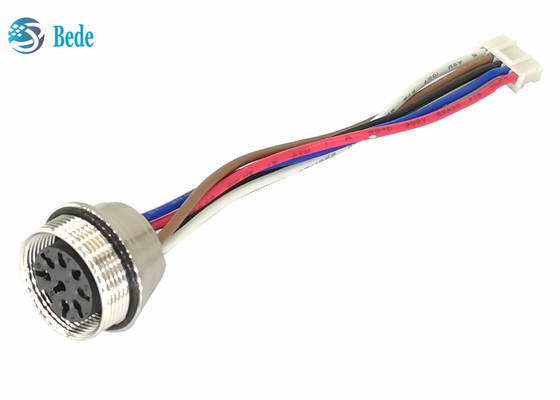

Female Contacts To 5 Pins Crimp Terminal AISG RET Cables AISG IP67 Rear Panel Mounting
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | CE RoHS |
| Model Number | AISG-0140 |
| Minimum Order Quantity | 100pcs |
| Price | negotiation |
| Packaging Details | 120pcs per carton, packing in PE bag each |
| Delivery Time | 3days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 5500pcs per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pins | 8pin | Wire Gauge | 18AWG |
|---|---|---|---|
| Waterproof | IP67 | Rated Current | 3A |
| High Light | RET Cables 18AWG,RET Cables IP67 |
||
Product Description
AISG RET Cables AISG rear panel mounting female contacts to 5 pins crimp terminal
Structure
1. crimp terminal, 5 pin, or customized
2. 22AWG wires, length 80 / 100mm in stock, length customization available
3. Sealing with Epoxy glue for waterproof
4. housing for female connector, brass with nickel plated
5. O-ring, rubber, for waterproof
6. PBT materials,insulator,
7. With mounting nut and dust cover, according to AISG C485 standard
Pin location
Female pin layout is based on DIN EN 61076-2-106:2012-04 variant 08-a. The female pins 2, 4 and 8 are not in
use for AISG applications, but it must be ensured that fully loaded male connectors according DIN EN 61076-2-
106:2012-04 variant 08-a are pluggable.
Size
size of the female connetor according AISG C485 4.1.1.3 style A3
