22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals

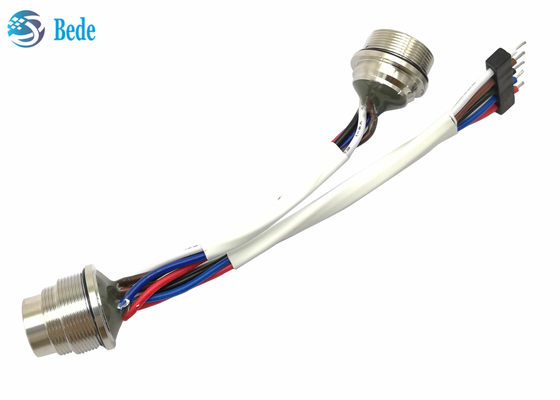

Large Image : 22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	AISG-0081

Payment & Shipping Terms:

Minimum Order Quantity:	120pcs
Price:	negotiation
Packaging Details:	120pcs per carton, connector cables with protective cap and mounting nuts in PE bag
Delivery Time:	3 days after payment
Payment Terms:	T/T, Western Union
Supply Ability:	5500pcs per day

Contact Now

Detailed Product Description

Wiring Method:	Welding	Wire Gauge:	22AWG
Contact Pins:	Brass With Gold Plated	Waterproof:	IP67
Insulation Resistance:	5MΩ Min	Contact Resistance:	3Ω Max
Highlight:	22AWG ret control cable , ret control cable IP67 , IP67 22AWG RET Cables

RET cables AISG inner control cables male to female with customzed Terminals

Structure

1. Female connector, AISG C485 4.1.1.3 A3 style rear mounting female connector, housing material is copper with nickel plated, insulator material is PBT platic, contact pins material is brass with silver plated

2. O-ring, rubber material, for waterproof

3. Epoxy glue for sealing and waterproofing

4. Heat shrink tube for protecting the wires, length and color can be customized

5. wires, wire gauge 22AWG

6. Housing of male connector, material is copper with nickel plated, size according AISG C485

7. Contact pins, brass with gold plated

8. Custom Terminal Blocks

9.Wire tails, tinned

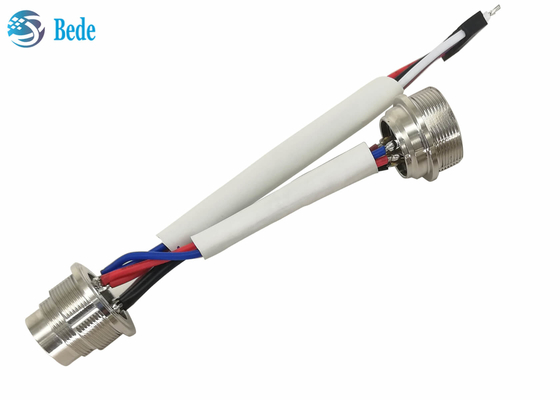

22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals 1

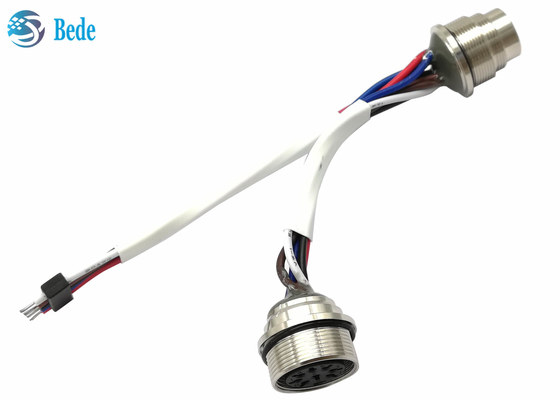

22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals 2

Connector pins location

Pins No.	1	2	3	4	5	6	7	8
Wire color	blue	not connect	white	not connect	brown	red	black	not connect

Tag:

Contact Person: Chu

Tel: 18938686395
