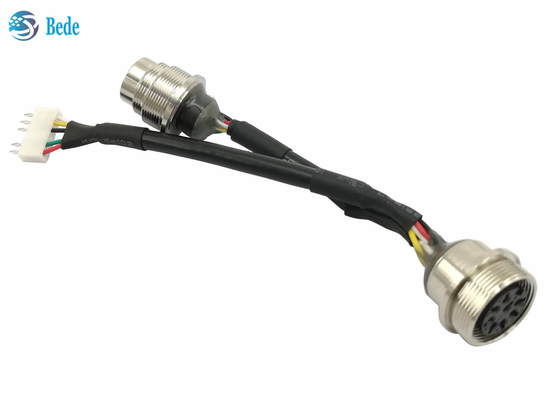

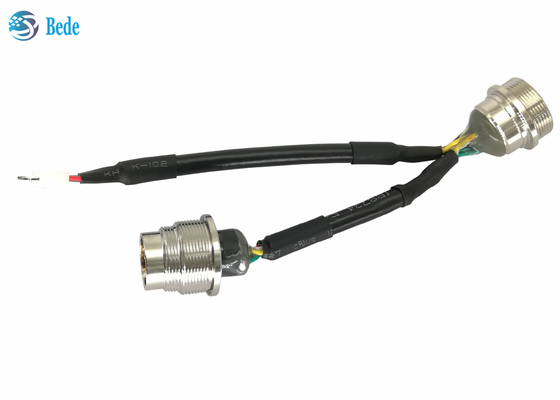

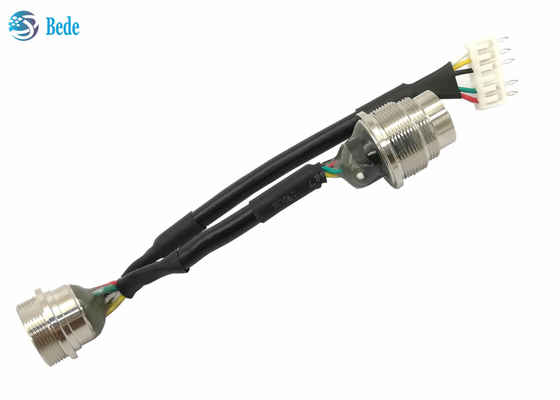

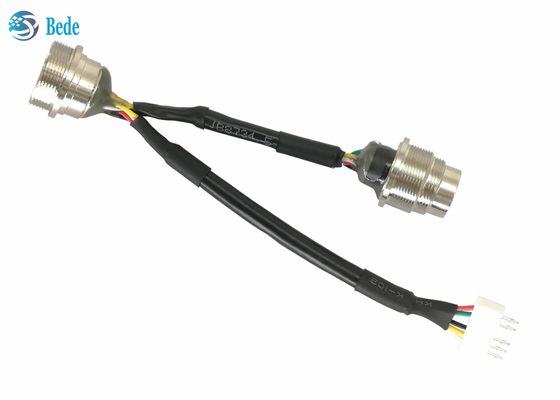

22AWG Wire Gauge RET Cables Male To Female AC 500V With SCN2.54-6P Plug

22AWG Wire Gauge RET Cables Male To Female AC 500V With SCN2.54-6P Plug

Brand Name: BEDE
Model Number: AISG-0016
MOQ: 150 pcs
Price: negotiation
Packaging Details: packing in PE bag with mounting nut and protective cap, 150pcs per carton
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS
Wire Gauge:
22AWG
Rated Current:
3A
Withstand Voltage:
AC 500V
Contact Resistance:
3Ω Max
Insulation Resistance:
5MΩ Min
Applicable Temperature:
-45 ~ + 80℃
Supply Ability:
5800 pcs per day
Highlight:

22AWG RET Cables

,

RET Cables AC500V

,

SCN2.54-6P Plug RET Cables

Product Description

AISG Panel Connector Cables RET Cables Male To Female With SCN2.54-6P Plug



Structure

1. Insulator, female connector, PBT plastic material,

2. housing of female connector, brass with nickel plated

3. Heat shrink tube for protecting cables, EVA material

4. cable jecket with Aluminum Magnesium alloy shielding layer, wire gauge 22AWG,

5. Male connector, housing material is brass with nickel plated, contact pins material is brass with gold plated

6. Epoxy, sealed wires and waterproof

7. contact pins, brass with silver plated

8. SCN2.54-6P connector, this end can be customized on request

22AWG Wire Gauge RET Cables Male To Female AC 500V With SCN2.54-6P Plug 0

Contact pin location



Pin No. 1 2 3 4 5 6 7 8
color blue not contact white not contact brown red black not contact



Notice

The AISG connector male and female is made according AISG C485, fixed connector, rear panel mounting, A1 style and A3 style

22AWG Wire Gauge RET Cables Male To Female AC 500V With SCN2.54-6P Plug 1
