M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin

M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin
M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin

Large Image :  M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: CE RoHS
Model Number: 1310P-1311S
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: negotiation
Packaging Details: packing in PE bag each and 100sets per carton
Delivery Time: within 4 days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4500sets per day
Contact Now
Detailed Product Description
Shell Material: PA66 UL94V-0 Pins Material: Brass With Gold Plated
Insulator: PPS Applicabel Wire: 4~6.5mm / 5~8mm
Applicable Temperatrue: -25~+85℃ Wiring Method: Soldering
Highlight:

M13 cable docking connector

,

cable docking connector 9Pin

,

m13 connector 7Pin

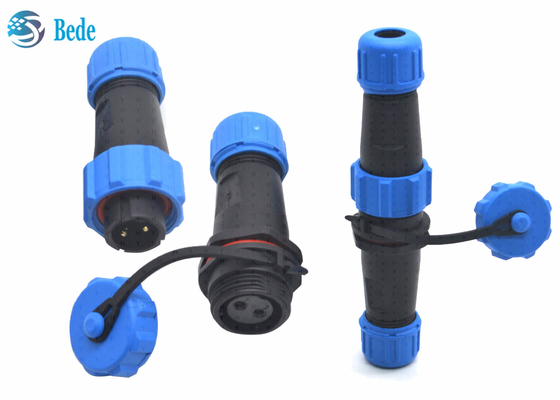

M13 Waterproof Cable Connector cable to cable docking Connector 2 3 4 5 6 7 9 Pin



Description

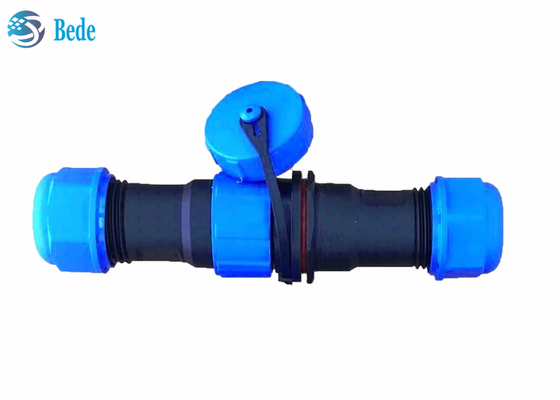

1. cable to cable docking connetors, male and female sets,

2.shells material is PA66, flame retardant UL94V-0

3.insulator meterial is PBT, temperature resistance up to 260°C and high insulation resistance

4.pins: 2 3 4 5 6 7 9

5.suitable cable diameter: Φ4~6.5mm or 5~8mm,

6.applicable temperatrue: -25~+85℃

M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin 0

Electrical data



pins 2 3 4 5 6 7 9
Rated current 13A 13A 5A 5A 5A 5A 3A
contact hole size Φ1.6x2 Φ1.6x3 Φ1.0x4 Φ1.0x5 Φ1.0x6 Φ1.0x7 Φ0.7x9
working voltage 250V 250V 200V 180V 125V 125V 125V



M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin 1

All family

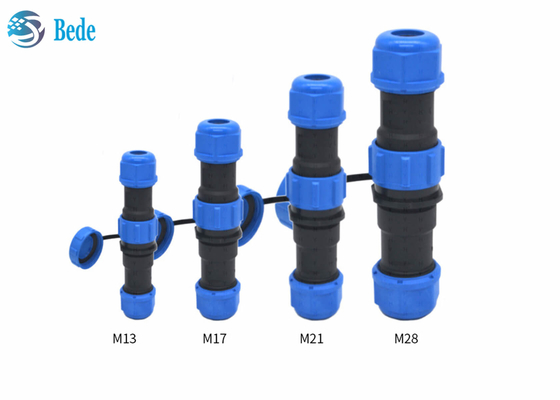

  M13 M17 M21 are in stock, all of them have  cable-to-cable docking model  and cable to panel mounting models

M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin 2
