| Brand Name: | BEDE |
| Model Number: | 1710P-1712S |
| MOQ: | 160 sets |
| Price: | negotiation |
| Packaging Details: | packing in PE bag each and 80sets per carton |
| Payment Terms: | T/T, Western Union, MoneyGram |

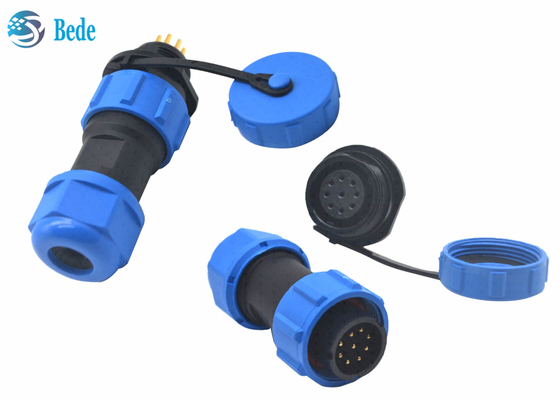

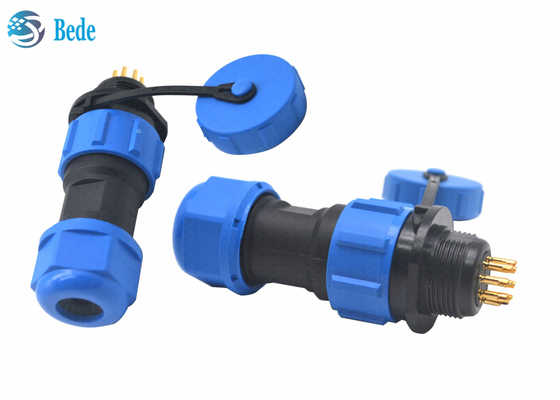

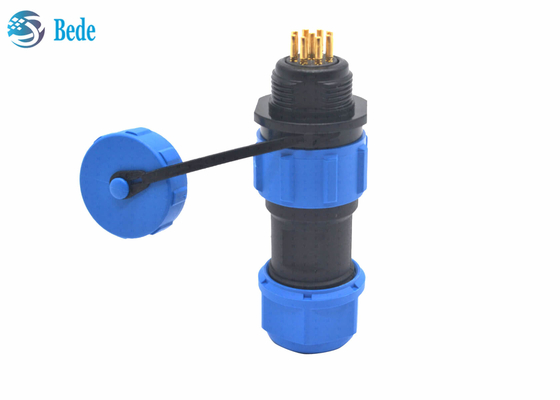

M17 Waterproof Connector Panel Mounting Connector 2 3 4 5 6 7 9 Pin Cable To Panel
Structure
1. Female connector for panel mounting, housing merterial is PPS(Temperature resistance 260℃), pins merterial is brass with gold plated
2.Protactive cap, protect the socket when not connected
3.O-ring for waterproofing, rubber material
4.Male connector, material as the same as female
5.Nut for fixing male and female after connection
6.Housing, fix male connector and cable
7/8.Screw claw and nut for waterproof of cable end
Electrical data
| pins | 2 | 3 | 4 | 5 | 6 | 7 | 9 |
| Rated current / A | 10 | 10 | 5 | 5 | 5 | 55 | |
| contact hole size / mm | Φ1.5x2 | Φ1.5x3 | Φ1.0x4 | Φ1.0x5 | Φ1.0x6 | Φ1.0x7 | Φ1.0x9 |
| working voltage / V | 500 | 500 | 500 | 500 | 400 | 400 | 400 |
All family
M13 M17 M21 are in stock, all of them have cable-to-cable docking model and cable to panel mounting models
|
|
| Brand Name: | BEDE |
| Model Number: | 1710P-1712S |
| MOQ: | 160 sets |
| Price: | negotiation |
| Packaging Details: | packing in PE bag each and 80sets per carton |
| Payment Terms: | T/T, Western Union, MoneyGram |
M17 Waterproof Connector Panel Mounting Connector 2 3 4 5 6 7 9 Pin Cable To Panel
Structure
1. Female connector for panel mounting, housing merterial is PPS(Temperature resistance 260℃), pins merterial is brass with gold plated
2.Protactive cap, protect the socket when not connected
3.O-ring for waterproofing, rubber material
4.Male connector, material as the same as female
5.Nut for fixing male and female after connection
6.Housing, fix male connector and cable
7/8.Screw claw and nut for waterproof of cable end
Electrical data
| pins | 2 | 3 | 4 | 5 | 6 | 7 | 9 |
| Rated current / A | 10 | 10 | 5 | 5 | 5 | 55 | |
| contact hole size / mm | Φ1.5x2 | Φ1.5x3 | Φ1.0x4 | Φ1.0x5 | Φ1.0x6 | Φ1.0x7 | Φ1.0x9 |
| working voltage / V | 500 | 500 | 500 | 500 | 400 | 400 | 400 |
All family
M13 M17 M21 are in stock, all of them have cable-to-cable docking model and cable to panel mounting models
