2 Channel M25 Waterproof Cable Connectors 2 3 4 5 Pins 450V 40A
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | RoHS,CE |
| Model Number | EW-M25-2T~5T |
| Minimum Order Quantity | 100pcs |
| Price | negotiation |
| Packaging Details | packing with PE bag, 100 pcs per carton |
| Delivery Time | Within 3 days after payment |
| Payment Terms | T/T,Western Union,MoneyGram |
| Supply Ability | 5000 pcs per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shell Material | PA 66 | Contact Material | Nickel Plated Copper |
|---|---|---|---|
| Poles | 2pin,3pin,4pins | Rated Voltage | DC 450V |
| Rated Current | 40A | Applicable Temperature | -40 ~ +105℃ |
| High Light | M25 Waterproof Cable Connectors,40A Waterproof Cable Connectors,40A ip68 3 pin connector |
||
Product Description

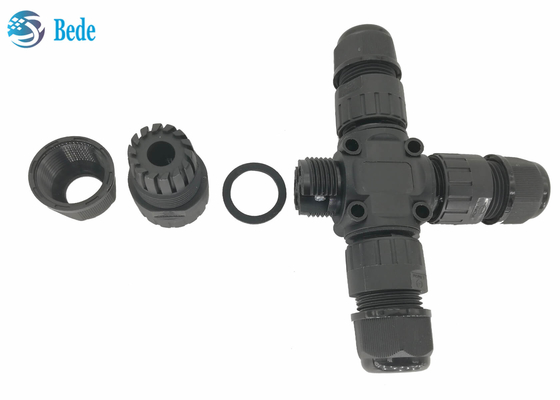

M25 Quick Wiring Screwless Waterproof Cable Connector 2 3 4 5 Pins 2 Channel 450V 40A
Description Of Waterproof Cable Connectors
Aviation Connector adopts fluid dynamic design, and the one-button device is pressed and fast-swapped to prevent the case failure factor caused by improper manual operation at the use end, which effectively increases the service life of the product.
Product structure
1. Nut, it is very important for waterproofing, make sure to tighten them after wiring
2. Grip bushing, grip the cable together with the nut and the sealing ring
3.Quick connection terminal, no need for screws or screwdrivers, saving wiring time by 50%: pull up the crimping handle, insert the wire, press the crimping handle, done
4,O-ring, silicone, waterproof part between grip bushing and terminal block
5,Bushing,
6.Sealing Rings, silicone, 3 colors for your opinion, 3 sizes for different cable diameter.
Description
IP68 waterproof, Suitable for connection to the outdoor lighting, underfloor heating, solar photovoltaic, etc, its also a DIY tool for repairing and delaying electrical wiring indoors. The shell is made of PA66 material, flame retardant grade UL94-V0, it is suitable for the ambient temperature of -40~+105℃, so it can be used with confidence at any time
Electrical Data
| Rated voltage | Rated current | Wire Section | cable OD | ||
| 450V | 40A |
0.5mm2~6mm2(2.3.4 pins) 0.5mm2~2.5mm2 (5 pins) |
5~9mm / 9 ~12mm / 10~14mm | ||
Feature Of Aviation Connector
Safe use in the field, thanks to a high degree of protection,high tensile strength, abrasion and notch resistance
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3. Soldering connection: proven connection technology for a large selection of different conductors
4. M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
5. High temperature 260 degree ,solder reflowing
Advantage
● good performance: use standard super five pure copper four stranded double wire and crystal head
● easy connection: no welding work, no installation tools, the standard crystal head can be directly inserted, can achieve rapid installation and use.
● waterproof and dustproof meet the requirements of IP67 standard.
● threaded connection, safe and reliable, impact, vibration, tensile
● anti-electromagnetic interference protection
