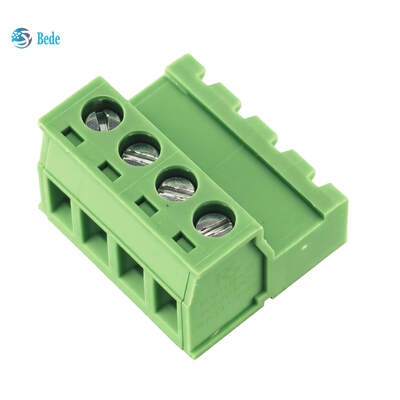

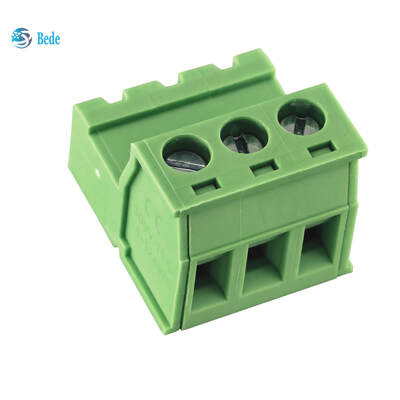

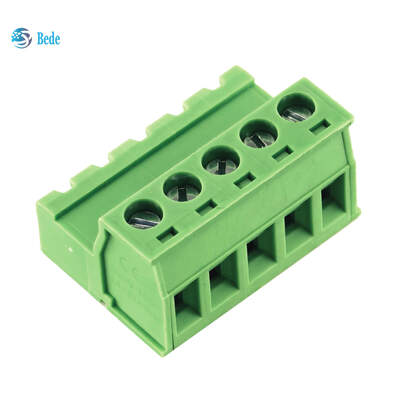

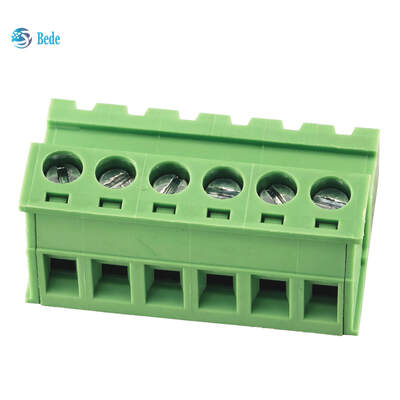

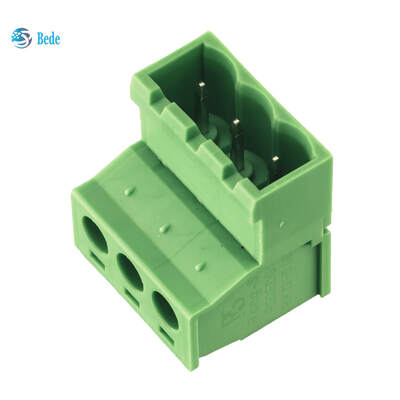

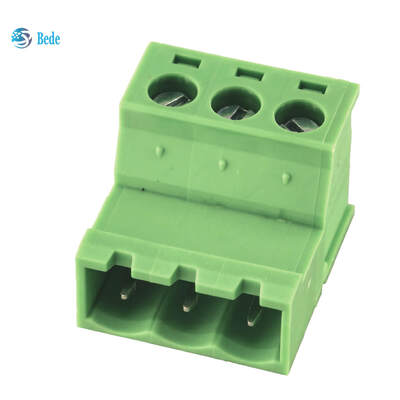

Plug-in Terminal Block Wire To Wire Male 300V 10A Alternative DFK-MSTB 2.5/x-G-5.08

Plug-in Terminal Block Wire To Wire Male 300V 10A Alternative DFK-MSTB 2.5/x-G-5.08

Description of the plug-in terminal blocks

    Bede mold and plastic Products CO.,Ltd manufactures high-performance male plug terminal blocks to pair with MSTB 2.5/xx-STF-5.08 female connectors. This 5.08mm pitch screw-clamp plug is built for wire-to-wire field interconnection.

    It maintains the exact mating profile and pin layout to form a seamless male-female assembly. No mechanical rework or wiring redesign is required when replacing the original imported male component. The plug uses PA66 UL94-V0 flame retardant housing and tin-plated copper pin contacts, ensuring low contact resistance and stable electrical performance in harsh industrial conditions. It reliably operates within -40℃ to +105℃ and holds UL, CE and RoHS certifications.

    We offer competitive pricing and steady inventory for industrial wiring applications.

Key Features of the plug-in terminal blocks

• Matching male plug compatible with MSTB 2,5/xx-STF-5,08 female terminal block
• 5.08mm pitch, screw-clamp wire termination
• PA66 UL94-V0 flame retardant housing, tin-plated copper pins
• Wide working temperature: -40℃ ~ +105℃
• Produced by Bede mold and plastic Products CO.,Ltd, cost-effective with stable supply
• Matching male terminals are available: cable female terminal MSTB 2.5/xx-STF-5.08,
• Similar male terminal blocks for PCB are available: straight pins terminal MSTB 2.5/xx-G-5.08 and PCB angle pins terminal block MSTB 2.5/xx-GF-5.08

Electrical performance of the Plug-in Terminal Block
