Male To Female Aviation Plug 4 Pin Kits GX16 PCB Welding Style 2 3 4 5 6 Pin

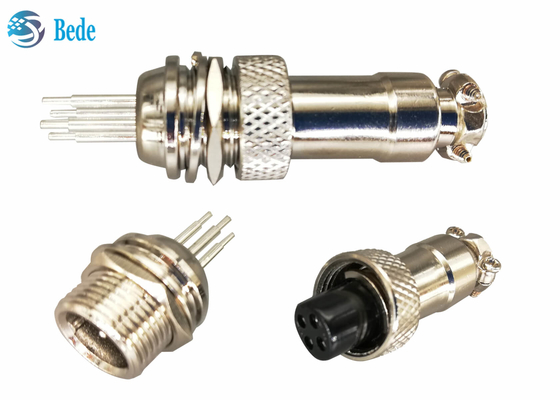

Large Image : Male To Female Aviation Plug 4 Pin Kits GX16 PCB Welding Style 2 3 4 5 6 Pin

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	GX16-PW-S-2 3 4 5 6

Payment & Shipping Terms:

Minimum Order Quantity:	150pcs
Price:	negotiate
Packaging Details:	packing with PE bag, 150pcs per carton
Delivery Time:	5 days after payment
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	5000pcs per week

Contact Now

Detailed Product Description

Shell Material:	Zinc Alloy With Nickel Plated	Insulator Material:	Black Bakelite
Pins Material:	Silver Plated Brass	Applicable Wire:	Φ7.5mm
Applicable Temperatrue:	-55~+75℃	Pins:	2~6
Highlight:	GX16 aviation plug 4 pin , aviation plug 4 pin 6 Pin , GX16 aviation connector 2 pin

Male To Female Aviation Connector Kits GX16 PCB Welding Style 2 3 4 5 6 Pin

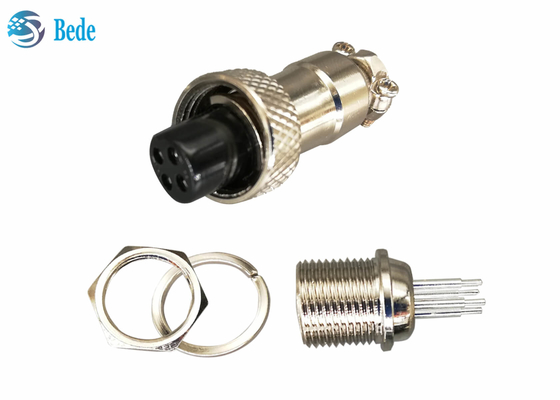

Product Structure

1.contact pins for PCB welding, brass material with silver plated

2. Male connector, rear mounting type, panel cutout 16mm

3.Washer and Nut for fixing male connector in panel

4.Bakelite insulator

5.Housing for female connector

Male To Female Aviation Plug 4 Pin Kits GX16 PCB Welding Style 2 3 4 5 6 Pin 0

Electrical date

pins	2	3	4	5	6
Rated current	7A	7A	5A	5A	4A
working voltage	200V	200V	200V	200V	200V
Insulation resistance	1500V	1500V	1500V	1500V	1500V
Contact resistance	3mΩ
Contact hole size	2.45mm	2.45mm	2.45mm	2mm	1.15mm

Materials and Surface Treatment

Parts	material	surface treatment
Shell	Zinc alloy	nickel plated
insulator	bakelite	non
Contact pins	brass	silver plated

Male To Female Aviation Plug 4 Pin Kits GX16 PCB Welding Style 2 3 4 5 6 Pin 1

All familier

About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.

1.Panel mounting model-- front mounting

2.Cable docking model

3.Panel mounting model--Rear mounting

4.Panel mounting model with round flange

5.Panel mounting model with square flange

6.Panel mounting model with rhombus flange

7.PCB welding model with elbow pins

8.PCB welding model with straight pins

9.Panel mounting model with right angle--front mounting

10.Waterproof cable docking model

11.Waterproof panel mount model

12.Panel mounting model with right angle--rear mounting

Male To Female Aviation Plug 4 Pin Kits GX16 PCB Welding Style 2 3 4 5 6 Pin 2
