Aviation Connector Plug
>
Aviation Gx16 5 Pin Right Angle Connector Male And Female Sets With All Accessories

Aviation Gx16 5 Pin Right Angle Connector Male And Female Sets With All Accessories

Brand Name: BEDE
Model Number: gx-16-5-l
MOQ: 100pcs
Price: negotiate
Packaging Details: packing with PE bag, 80 pcs per carton
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Detail Information
Place of Origin:
China
Certification:
RoHS
Supply Ability:
3000 set per day
Highlight:

Aviation gx16 5 pin connector

,

Aviation gx16 connector 5 pin

,

L Type aviation connector 5 pin

Product Description

Aviation Gx16 5 Pin Right Angle Connector Male And Female Sets With All Accessories ​





   Aviation connectors are widely used in Aviation and Navigation, industrial control, outdoor lighting, oil extraction because of their reliable connection, insulation and withstand voltage.

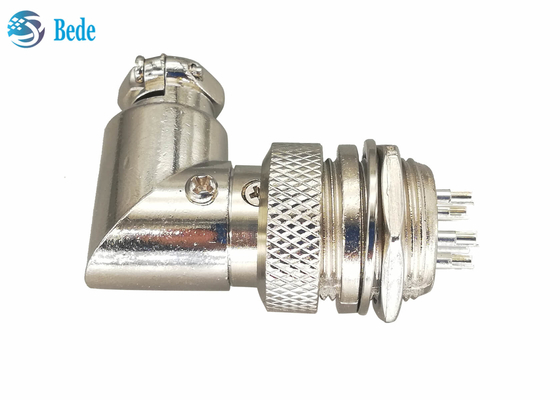

Aviation Gx16 5 Pin Right Angle Connector Male And Female Sets With All Accessories 0



Quickly details

  1. Male and female set,  L type, panel mounting connector
  2. a16mm mounting hole needs to be reserved on the panel
  3. wire number: 5pin, wire welding modle,

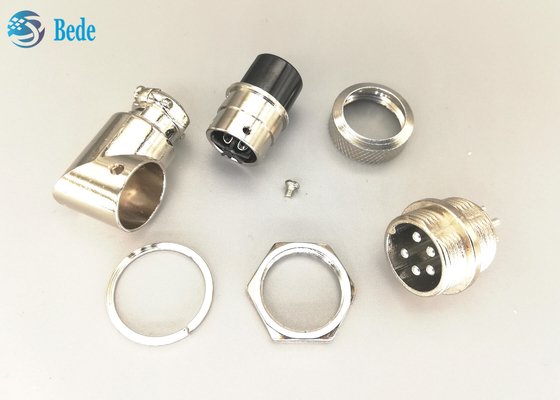

  4. with all accessories such as the screw,nuts, spring washer
  5. shell material: Zinc alloy, nickel plated
  6. Contact material: copper, silver plated for low contact resistance
  7. Use in the temperature range of -50 ~ +70 ℃

Electrical parameters



Rated current Rated voltage Withstand voltage test Insulation resistance Contact resistance
5A 200V AC1500V*1min ≥1500 MΩ ≤0.005Ω

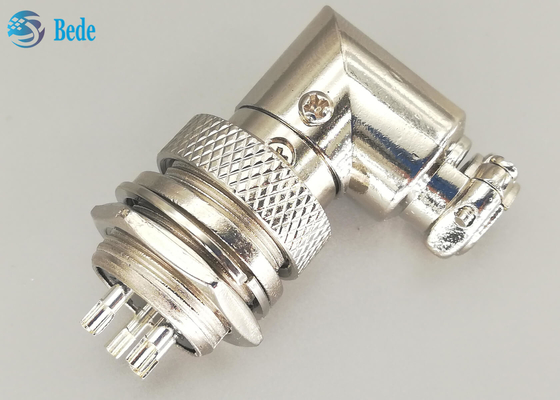

Aviation Gx16 5 Pin Right Angle Connector Male And Female Sets With All Accessories 1



other families



Series products are in stock, 2 pins, 3 pins ... 10 pins, and straight gx12 gx16 gx20 aviation connector also, back to product catalog to know more or contact us directly

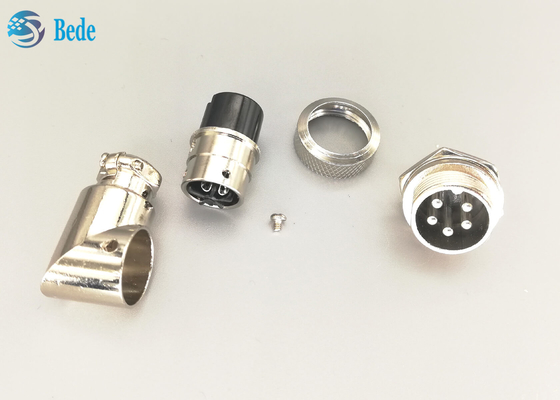

Aviation Gx16 5 Pin Right Angle Connector Male And Female Sets With All Accessories 2
