Silver Plated Aviation Connector Plug gx16 6 Pins Male And Elbow Female Connector Sets

Large Image : Silver Plated Aviation Connector Plug gx16 6 Pins Male And Elbow Female Connector Sets

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	RoHS
Model Number:	gx-16-6-l

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	negotiate
Packaging Details:	packing with PE bag, 80 pcs per carton
Delivery Time:	within 3days after payment
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	3000 set per day

Contact Now

Detailed Product Description

Highlight:

L Type Aviation Connector Plug

gx16 6 Pin Aviation Connector Plug

L Type gx16 6 pin connector

Silver Plated Aviation Connector Plug gx16 6 Pins Male And Elbow Female Connector Sets

Description

Aviation connectors are widely used in Aviation and Navigation, industrial control, outdoor lighting, oil extraction because of their reliable connection, insulation and withstand voltage.

Number of wires	wire connection	Shell material	Contact material	Operating temperature
6 pins	welding	Zinc alloy nickel plated	Silver plated copper	-50 ~ +70 ℃

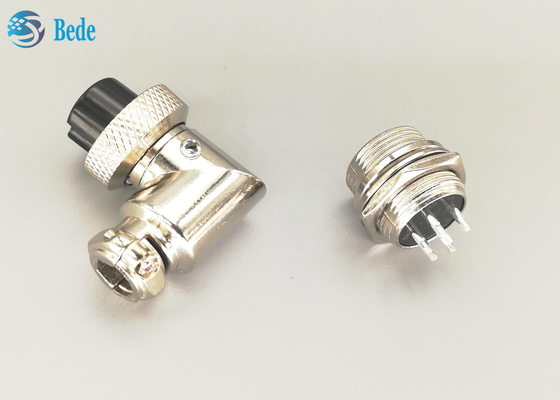

Silver Plated Aviation Connector Plug gx16 6 Pins Male And Elbow Female Connector Sets 0

Quickly details

Male and female set, L type, wire welding mode
with all accessories such as the screw,nuts, spring washer
Mounting holes: Φ 16mm
Rated current: 4A
Rated voltage: 125V
Operating Voltage: 200V
Withstand voltage test: AC1500V*1min
Insulation resistance:DC500V ≥1500 MΩ
Contact resistance: DC1A ≤0.005Ω

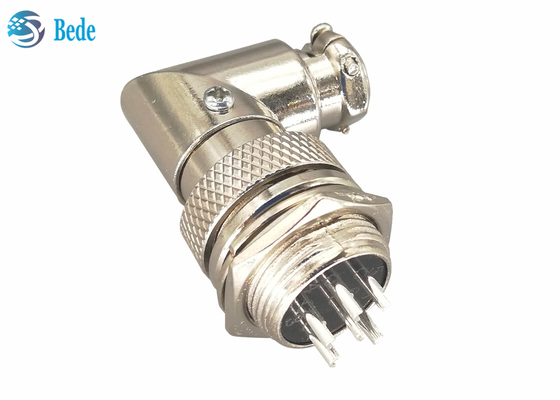

Silver Plated Aviation Connector Plug gx16 6 Pins Male And Elbow Female Connector Sets 1

other families

Series products are in stock, 2 pins, 3 pins ... 10 pins, and straight gx12 gx16 gx20 aviation connector also, back to product catalog to know more or contact us directly

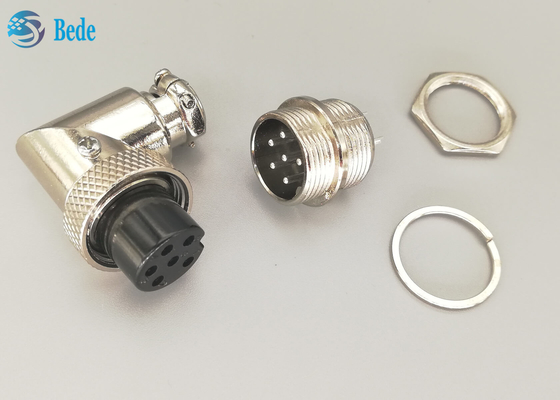

Silver Plated Aviation Connector Plug gx16 6 Pins Male And Elbow Female Connector Sets 2
