Gx16 Aviation Connector
>
7 Pin Gx16 Aviation Connector M16 Connectors Plug And Socket Sets For Rail Transit

7 Pin Gx16 Aviation Connector M16 Connectors Plug And Socket Sets For Rail Transit

Brand Name: BEDE
Model Number: GX-15-S-7
MOQ: 80pcs
Price: negotiation
Packaging Details: PE bags each and 80pcs per carton
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Detail Information
Place of Origin:
China
Certification:
CE RoHS
Supply Ability:
5000pcs per week
Highlight:

7 Pin Gx16 Aviation Connector

,

M16 Gx16 Aviation Connector

,

7 Pin M16 Connectors Plug

Product Description

7 Pin Gx16 M16 Connectors Plug And Socket Sets For Aviation Navigation And Rail Transit



Description

  1.  7 pins aviation connector,  the male end bolted to the panel, a 16mm mounting hole needs to be reserved on the panel
  2.  wire welding model, coming with a plug and a socket, screws and spring washer
  3. Application temperature: -20 ~ +85℃
  4. Shell material: Zinc alloy, nickel plated
  5. Contact material: copper,Silver plated
  6. Rated current: 4A
  7. Operating Voltage: 200V
  8. Insulation resistance: ≥1500MΩ
  9. Contact resistance: ≤0.005Ω

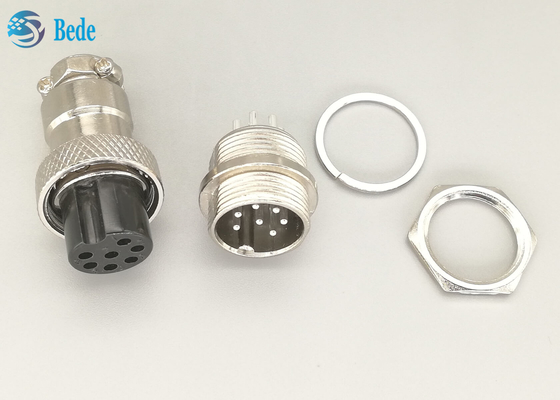

7 Pin Gx16 Aviation Connector M16 Connectors Plug And Socket Sets For Rail Transit 0



Application

  1. Circuit connections for aviation and marine equipment
  2. Industrial equipment, quick connections for control panels
  3. Power Connections for Test Instruments

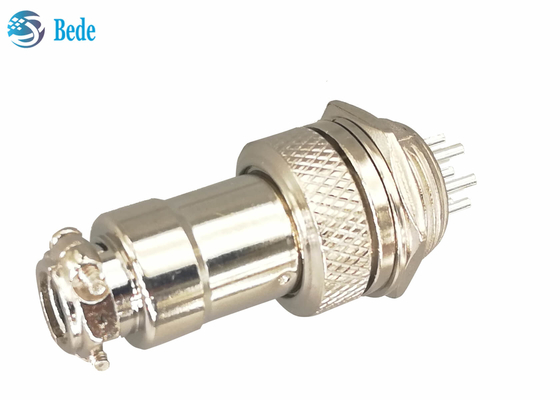

7 Pin Gx16 Aviation Connector M16 Connectors Plug And Socket Sets For Rail Transit 1




Product Size

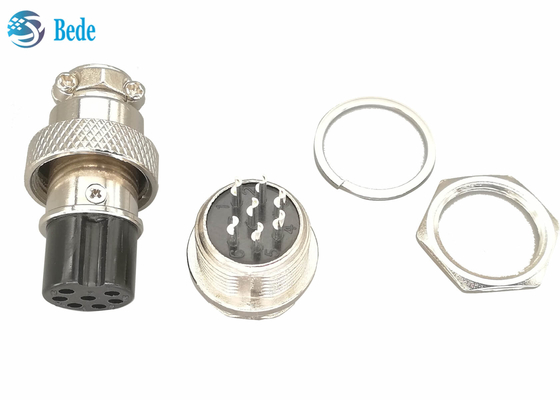

7 Pin Gx16 Aviation Connector M16 Connectors Plug And Socket Sets For Rail Transit 2



Other familier

Series products are in stock, 2 pins, 3 pins ... 10 pins, and gx12 / gx20 aviation connector also, back to product catalog to know more or contact us directly

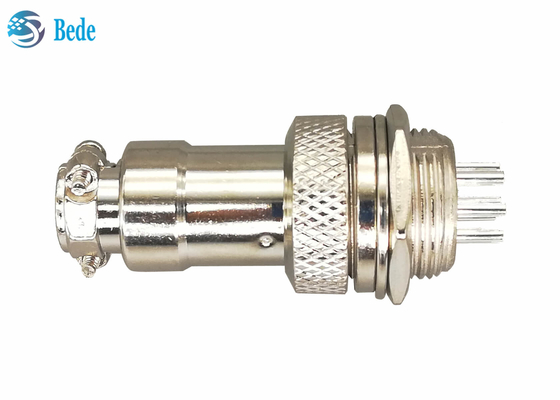

7 Pin Gx16 Aviation Connector M16 Connectors Plug And Socket Sets For Rail Transit 3
