| Brand Name: | BEDE |
| Model Number: | g×16-7-1 |
| MOQ: | 100pcs |
| Price: | negotiation |
| Packaging Details: | packing with PE bag,80 pcs per carton |
| Payment Terms: | T/T, Western Union, MoneyGram, D/A, D/P |
Silver Plated 7 Pins gx16 90 Degree aviator connector Male And Female Sets
Description
Aviation connectors are widely used in Aviation and Navigation, industrial control, outdoor lighting, oil
extraction because of their reliable connection, insulation and withstand voltage.

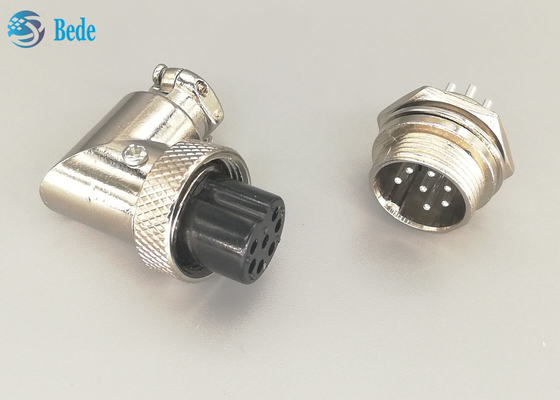

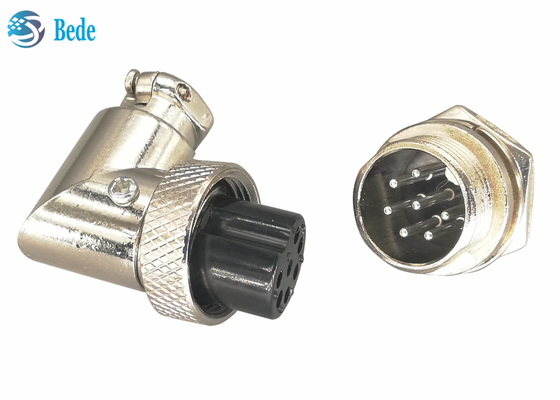

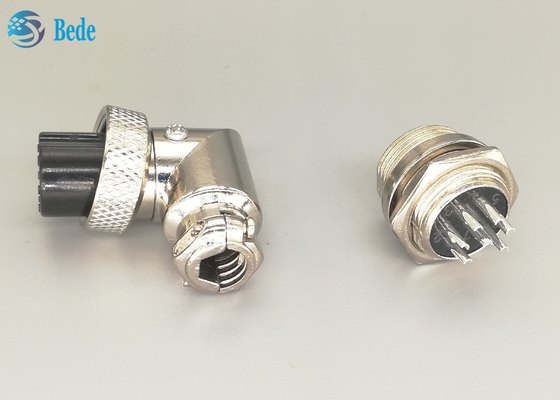

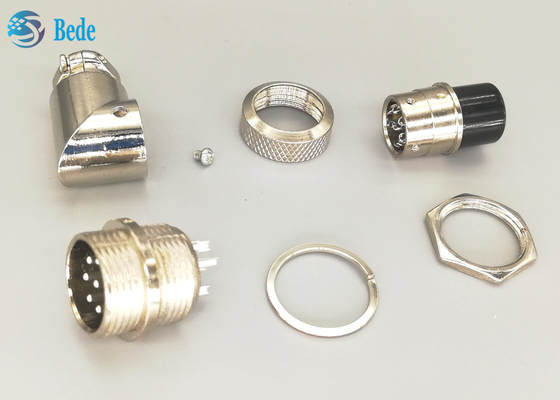

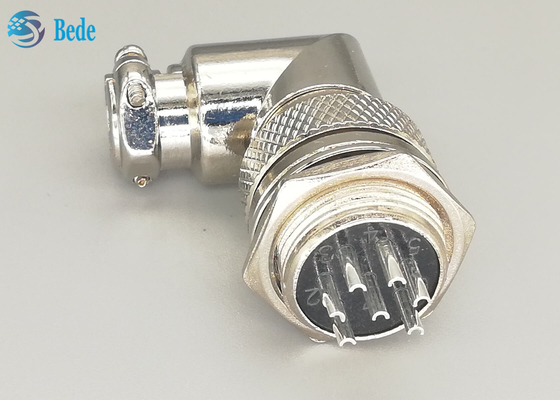

This page is about g×16 7pins aviation connector set, including 1 male plug, 1 female socket, and matching lock screws and nuts.
Material data:
| Number of wires | Wire connection | Shell material | Contact material | Opration temperature |
| 7 pins | welding | Zinc alloy | Copper plating silver | -50~+70℃ |
Electricity data
| Rated current | Rated voltage | Operating Voltage(AC V) | Withstand voltage(AC V) 1min | Insulation impedance(MΩ)DC500V | Contact resistance |
| 4A | 125V | 200 | 1500 | 1500 | ≤0.005Ω |
|
|
| Brand Name: | BEDE |
| Model Number: | g×16-7-1 |
| MOQ: | 100pcs |
| Price: | negotiation |
| Packaging Details: | packing with PE bag,80 pcs per carton |
| Payment Terms: | T/T, Western Union, MoneyGram, D/A, D/P |
Silver Plated 7 Pins gx16 90 Degree aviator connector Male And Female Sets
Description
Aviation connectors are widely used in Aviation and Navigation, industrial control, outdoor lighting, oil
extraction because of their reliable connection, insulation and withstand voltage.
This page is about g×16 7pins aviation connector set, including 1 male plug, 1 female socket, and matching lock screws and nuts.
Material data:
| Number of wires | Wire connection | Shell material | Contact material | Opration temperature |
| 7 pins | welding | Zinc alloy | Copper plating silver | -50~+70℃ |
Electricity data
| Rated current | Rated voltage | Operating Voltage(AC V) | Withstand voltage(AC V) 1min | Insulation impedance(MΩ)DC500V | Contact resistance |
| 4A | 125V | 200 | 1500 | 1500 | ≤0.005Ω |
