Aviation Connector Plug G×16 9 Pins Male And Female Sets L Type Silver Plated Plug

Large Image : Aviation Connector Plug G×16 9 Pins Male And Female Sets L Type Silver Plated Plug

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	RoHS
Model Number:	g×16-9-1

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	negotiation
Packaging Details:	packing with PE bag,80 pcs per carton
Delivery Time:	Within 3 days after payment
Payment Terms:	T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability:	3000 sets per day

Contact Now

Detailed Product Description

Highlight:

Aviation Connector Plug g×16

gx16 9 pin Aviation Connector Plug

gx16 connector L Type

Aviation Conntectors g×16 9 Pins Male And Female Sets L Type Silver Plated Plug

Aviation connectors are widely used in Rail transportation, navigation and aviation, test instruments, industrial control, outdoor lighting, oil exploration and other fields, because of their reliable connection, insulation and withstand voltage. Aviation Connector Plug G×16 9 Pins Male And Female Sets L Type Silver Plated Plug 0

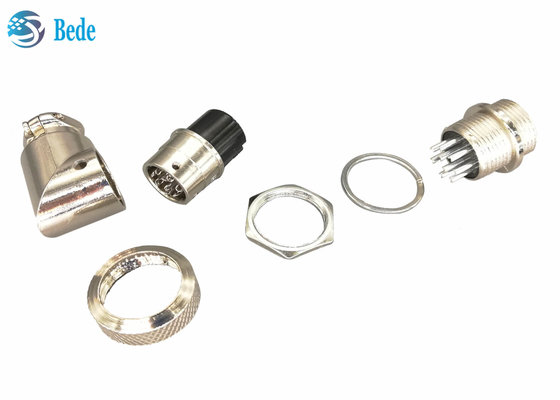

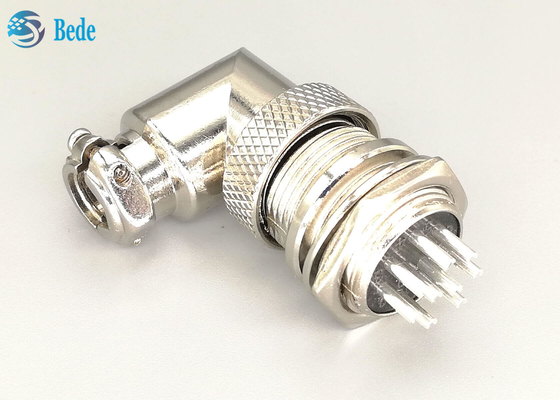

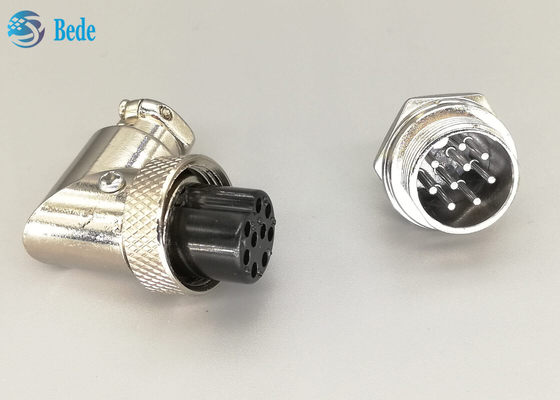

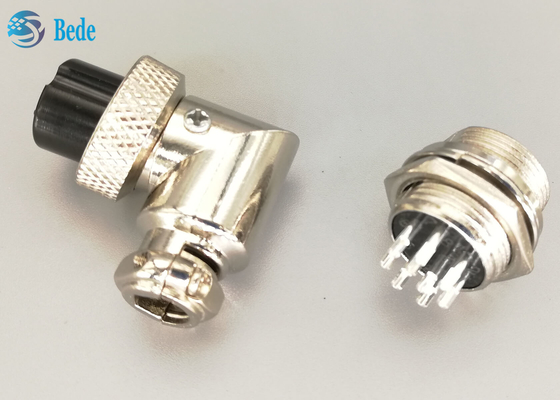

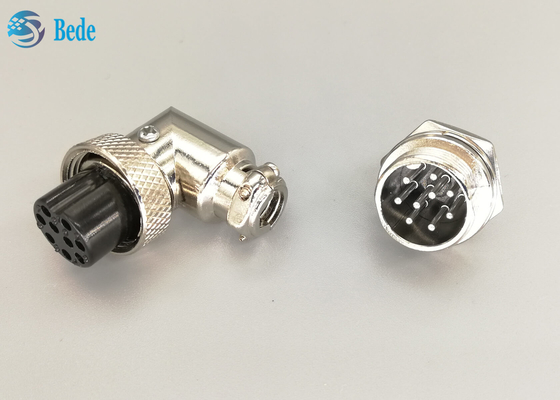

This page is about g×16 9pins aviation connector set, including 1 male plug, 1 female socket, and matching lock screws and nuts.

Related Details:

Number of wires	Wire connection	Shell material	Contact material	Opration temperature
9 pins	welding	Zinc alloy	Copper plating silver	-50~+70℃

Rated current	Rated voltage	Operating Voltage(AC V)	Withstand voltage(AC V) 1min	Insulation impedance(MΩ)DC500V	Contact resistance
4A	125V	200	1500	1500	≤0.005Ω

other families:

Series products are in stock, 2 pins, 3 pins ,4 pins,5 pins,6 pins,7 pins,8 pins,10 pins, and straight g×12,g×16,g×20 aviation connector also, back to product catalog to know more or contact us directly.
