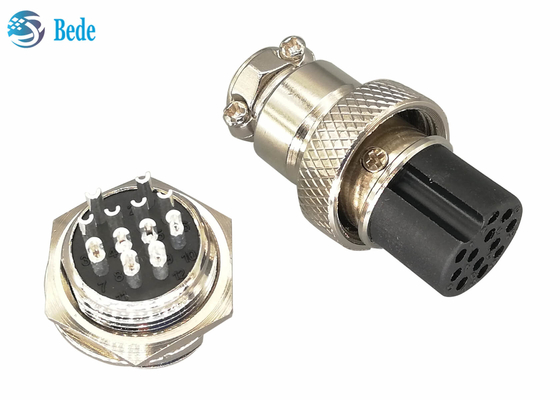

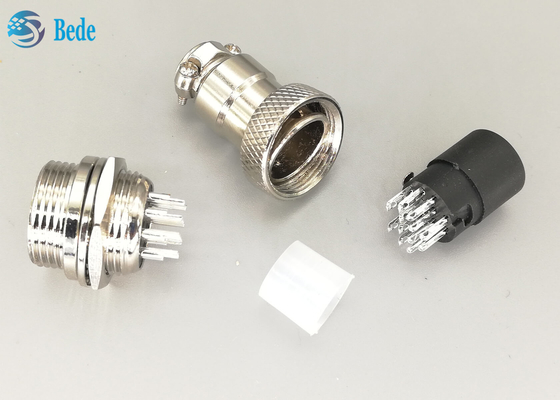

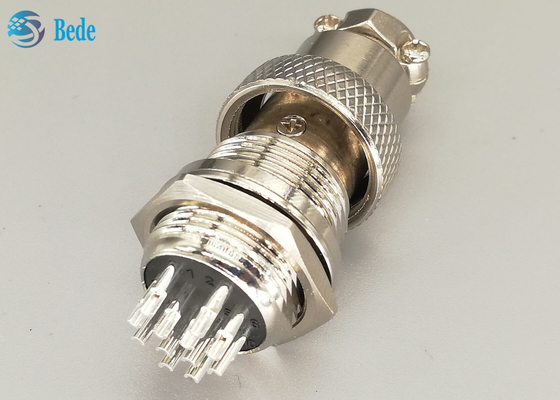

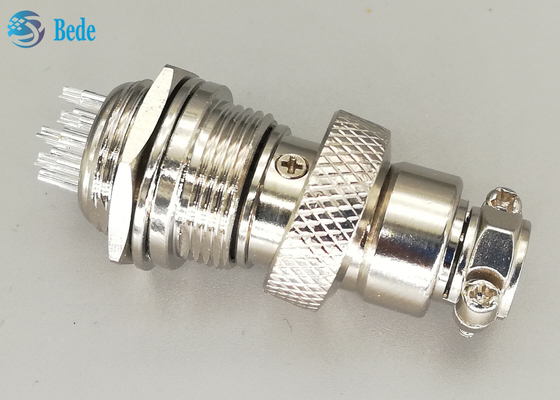

12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug

12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug
12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug 12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug 12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug 12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug

Large Image :  12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: RoHS
Model Number: g×16-S-12
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: negotiate
Packaging Details: packing with PE bag,80 pcs per carton
Delivery Time: within 3 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 sets per day
Contact Now
Detailed Product Description
Highlight:

12 Pin Gx16 Aviation Connector

,

Gx16 Aviation Connector Straight

,

Gx16 12 pin aviation connector

Aviation Conntectors g×16 12 Pin Male And Female Straight Silver Plated Plug



Product parameters

  1. 12 pins aviation connector, a 16mm mounting hole needs to be reserved on the panel,coming with a plug and a socket, screws and spring washer
  2. Terminal connection mode :welding
  3. The plug connect method:Threaded connections
  4. Shell material: Zinc alloy, nickel plated
  5. Contact material: Copper plating silver
  6. Cable diameter :φ≤7mm
  7. Contact pin diameter:φ=1.15mm
  8. Rated current: 4A
  9. Rated voltage:125V
  10. Operating Voltage: 200V
  11. Insulation resistance: ≥1500MΩ
  12. Contact type:Plug/socket
  13. Times of pull out and inserts:500







Application Field

  • Industrial control
  • Testing center
  • Rail transportation
  • Testing instruments
  • Outdoor lighting
  • Instrument and meter
  • Aviation and navigation
  • And so on

12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug 0
