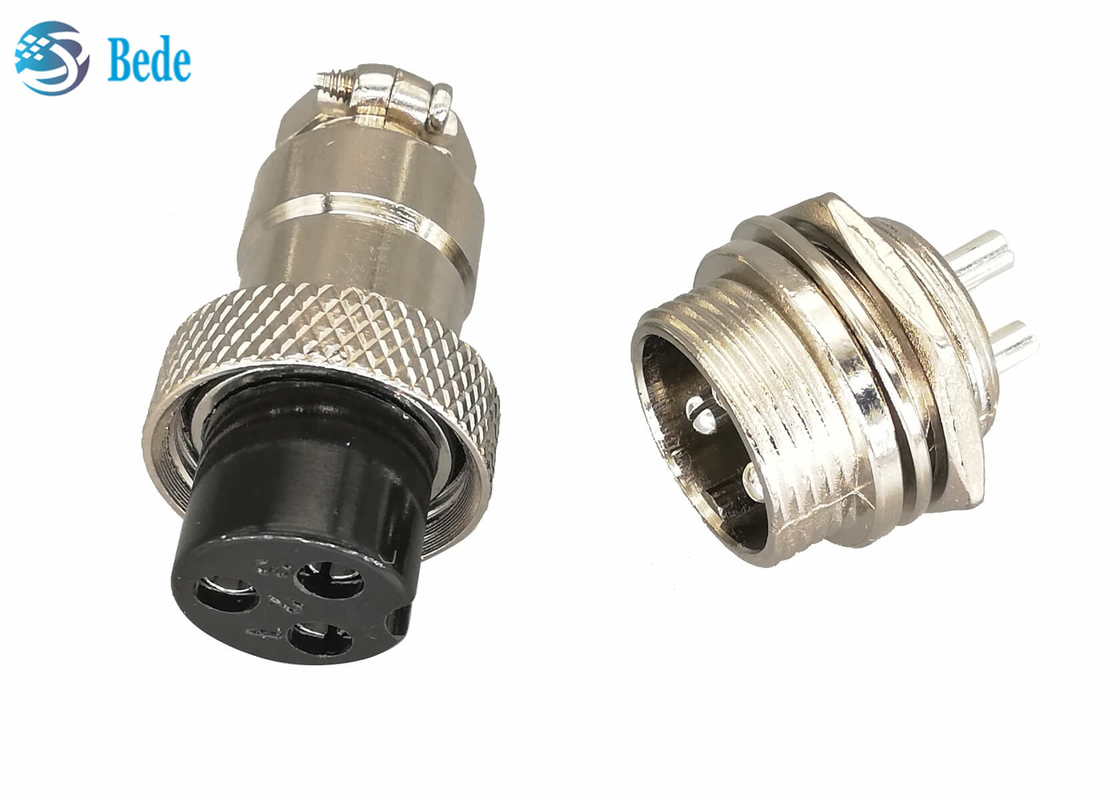

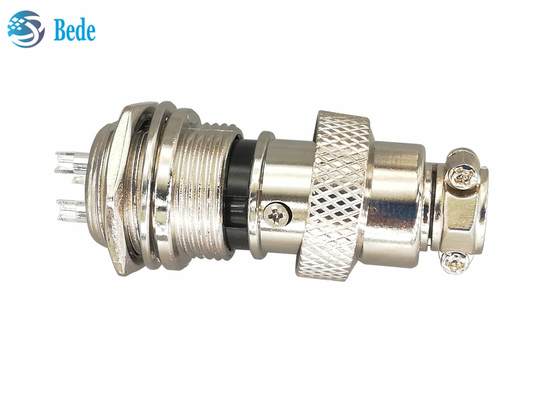

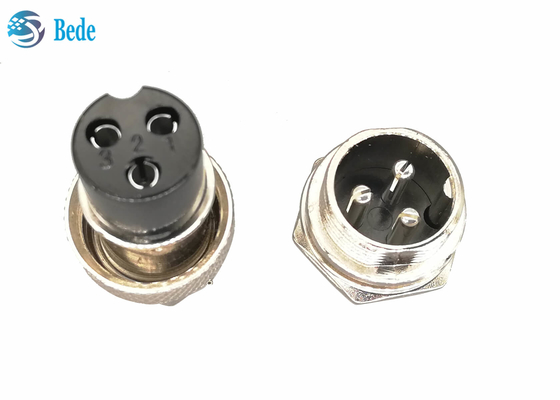

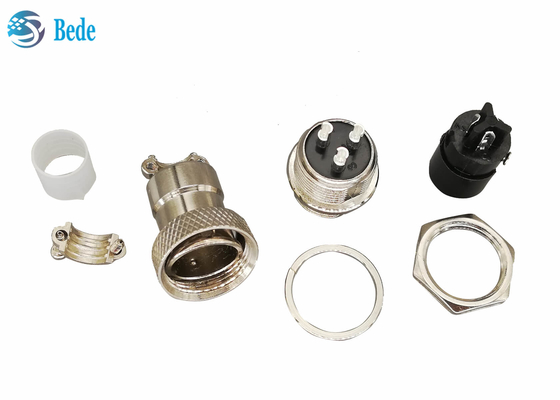

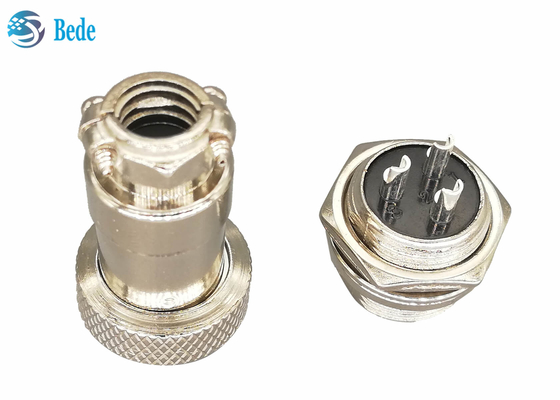

Circular Gx16 3 Pin Connector Plug And Socket Kits 16MM Front Mounting
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | RoHS |
| Model Number | gx-16-3-s |
| Minimum Order Quantity | 100pcs |
| Price | negotiate |
| Packaging Details | packing with PE bag, 80 pcs per carton |
| Delivery Time | within 3days after payment |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 3000 set per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | Circular gx16 3 pin connector,gx16 3 pin connector 16MM,Circular gx16 connector 3 pin |
||
|---|---|---|---|
Product Description
Circular Connector Plug And Socket Kits 3 Pin 16MM Wire Panel Metal Connector
Description
- Widely used in data acquisition systems, computer automation measurement and control systems, mechnical equipment, audio/video communications, automotive and electronic connector of aviation, space light, post and telecommunications, computer, navigation and various kinds of instruments, CNC machine
- Male and Female, hard plastic end cable connector, straight metal plug
- High quality black rubber bakelite makes it Insulation and flame retardant.
- The contact pin is made of silver plated copper, It has good conductivity.
- Exterior material: Zinc Alloy, nickel plated,looks shiny and not easy to rust, corrosion resistance
- Product bottom is equipped with a connecting head,using two screws fixed, stable and firm, easy disassembly
- Rated Current Voltage: 200V; Rated Current Amp: 7A;
- Wiring Method: welding.
- Number of pins: 3 pins;
- Size of plug / Panel Mounting Holes: 16 mm / M 16 ;
- Ambient temperature: -50 °C ~ + 70 °C.
Electrical parameters
| Rated current | Rated voltage | Withstand voltage test | Insulation resistance | Contact resistance |
| 7A | 200V | AC1500V*1min | ≥1500 MΩ | ≤0.005Ω |
other families
Series products are in stock, 2 pins, 3 pins ... 10 pins, and straight gx12 gx16 gx20 aviation connector also, back to product catalog to know more or contact us directly
