Circular Flange Gx20 Plug Male And Female Set Panel Mount Connector

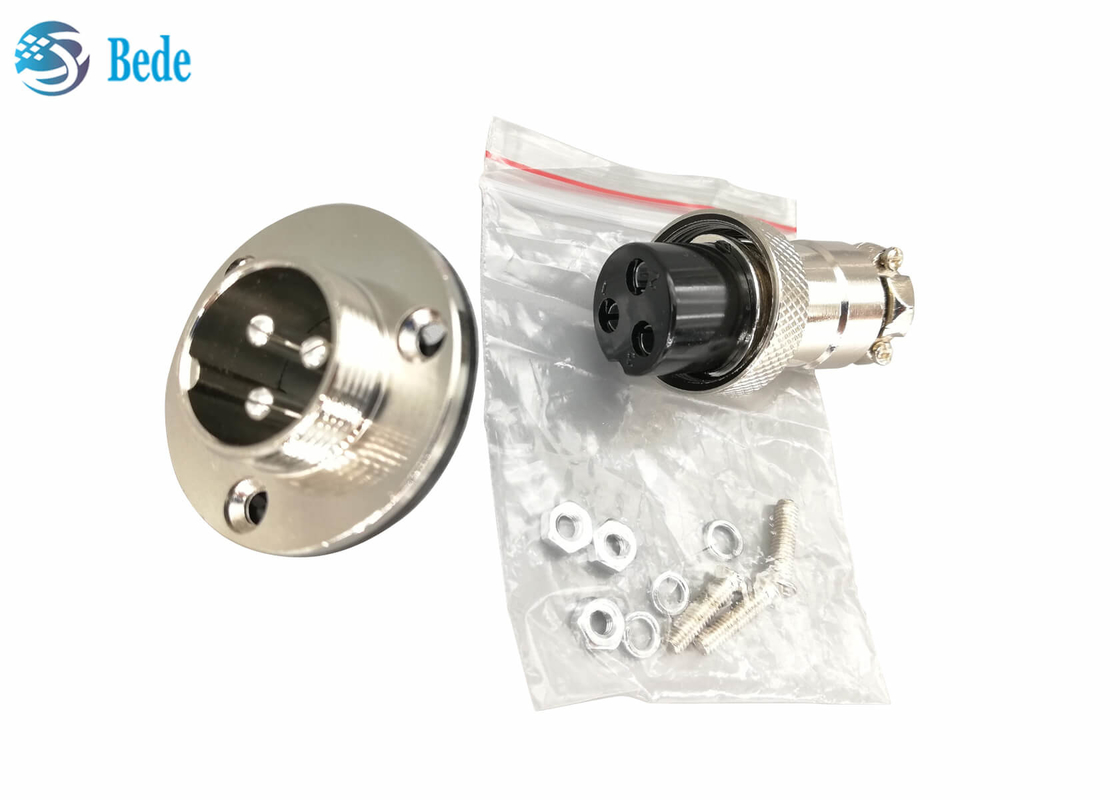

Large Image : Circular Flange Gx20 Plug Male And Female Set Panel Mount Connector

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE, RoHS
Model Number:	GX-20-CF

Payment & Shipping Terms:

Minimum Order Quantity:	200sets
Price:	negotiation
Packaging Details:	packing with PE bags, 100sets per carton
Delivery Time:	within 2 days after payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	3000 sets per day

Contact Now

Detailed Product Description

Housing Material:	Zinc Alloy	Contact Material:	Silver Plated Copper
Poles:	2/3/4/5/6/7/8 Pins	Withstand Voltage:	1500V
Contact Resistance:	≤0.005Ω	Insulation Resistance:	1000MΩ
Mounting Holes:	19mm	Applicable Temperature:	-50 ~ +70 ℃
Highlight:	Male Gx20 Connector , Female gx20 plug , Circular gx20 plug

GX 20 Connectors With Circular Flange Male And Female Set Panel Mount Connector

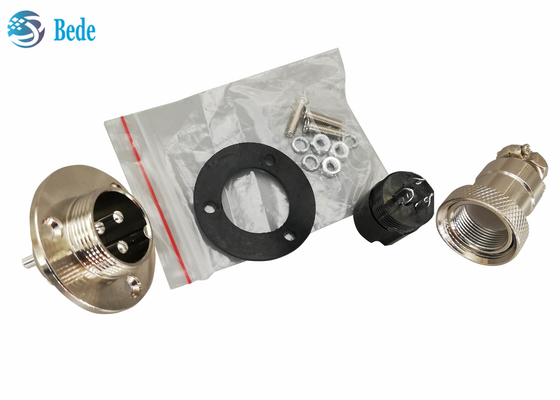

Structure

1. Silicone pad, used for waterproofing between the male end and the panel, you can choose whether it has a dust cover according to your needs

2. Male end, mounted on panel

3. spring washers, nut and screw, stainless steel material, for fixing male end to panels

4. Female end,

5. Housing, for fixing female end and cable, Zinc alloy material

6. Contacter, copper material, silver plated,

Circular Flange Gx20 Plug Male And Female Set Panel Mount Connector 0

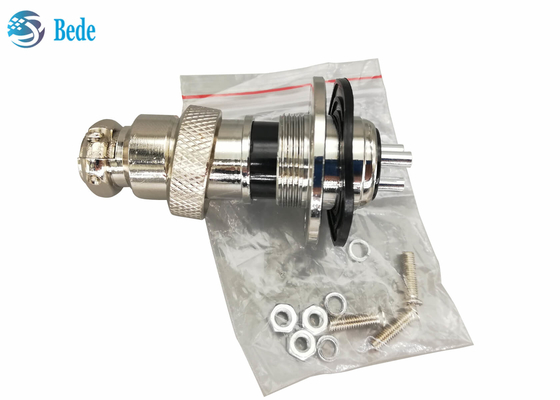

Description

1. 2/3/4/5/6/7/8 pins for your opinion

2. Mounting hole size: 19mm / M19

3. Applicable temperature: -50℃ ~ +70℃

4.Widely used in aviation, navigation, industrial control, testing instruments and other fields

Circular Flange Gx20 Plug Male And Female Set Panel Mount Connector 1

Electrical parameters

Rated current			Rated voltage
2 pins	3/4/5 pins	6/7/8 pins	2/34/5 pins	6/7/8 pins
10A	7A	5A	250V	150V

Similar product

Other types of GX20 products are available, please contact us or back to the product catalog to know more

Circular Flange Gx20 Plug Male And Female Set Panel Mount Connector 2
