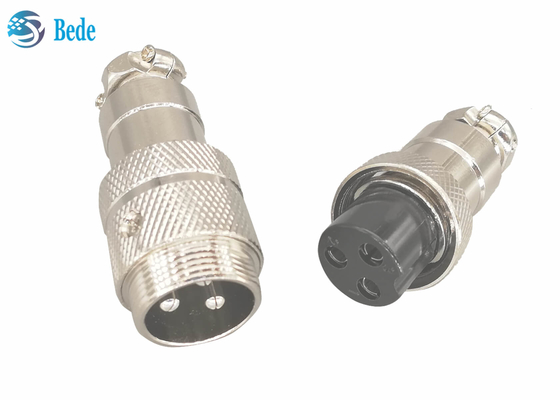

2 3 4 5 6 7 Pins GX20 Connector Male And Female Set Docking Connector

Large Image : 2 3 4 5 6 7 Pins GX20 Connector Male And Female Set Docking Connector

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE, RoHS
Model Number:	GX-20-2/3/4/5/6/7-D

Payment & Shipping Terms:

Minimum Order Quantity:	100sets
Price:	negotiation
Packaging Details:	packing with PE bags, 100sets per carton
Delivery Time:	within 2 days after payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	4000 sets per day

Contact Now

Detailed Product Description

Housing Material:	Zinc Alloy	Contact Material:	Silver Plated Copper
Poles:	2/3/4/5/6/7 Pins	Operating Voltage:	200V
Rated Current:	5~10A	Contact Resistance:	0.003Ω
Cable Diameter:	4~9mm	Applicable Temperature:	-50 ~ +70 ℃
Highlight:	7Pins Gx20 Connector , 6Pins Gx20 Connector , GX 20 aviation connector 5 pin

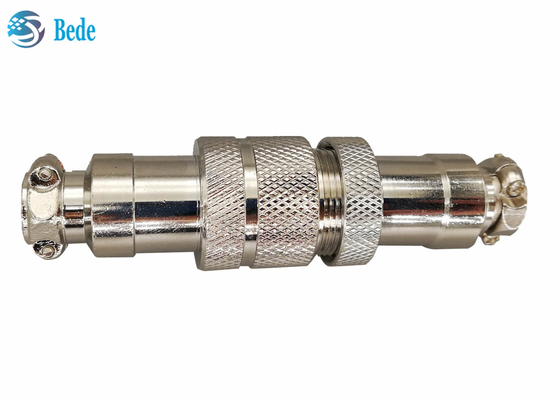

GX 20 Connector Male And Female Set Docking connector 2 3 4 5 6 7 Pins

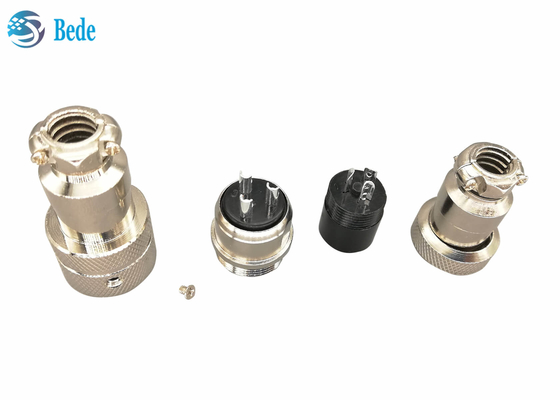

Structure

1. Housing for male end, zinc alloy materials,

2. Contacter, copper material, silver plated,

3. Nut for locking male end and female end

4. nut for fixing male end and housing

5. Male end, welding type

6. Bakelite, main bady of female end

7. Housing for female end, zinc alloy materials

2 3 4 5 6 7 Pins GX20 Connector Male And Female Set Docking Connector 0

Description

1. 2/3/4/5/6/7 pins for your opinion

2. Applicable temperature: -50℃ ~ +70℃

3.Widely used in aviation, navigation, industrial control, testing instruments and other fields

2 3 4 5 6 7 Pins GX20 Connector Male And Female Set Docking Connector 1

Electrical parameters

Rated current			Rated voltage
2 pins	3/4/5 pins	6/7 pins	2/34/5 pins	6/7 pins
10A	7A	5A	250V	150V

Similar product

Other types of GX20 products in stock, please contact us or back to the product catalog to know more

2 3 4 5 6 7 Pins GX20 Connector Male And Female Set Docking Connector 2
