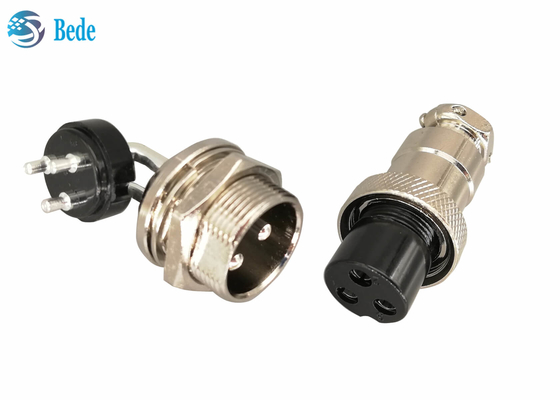

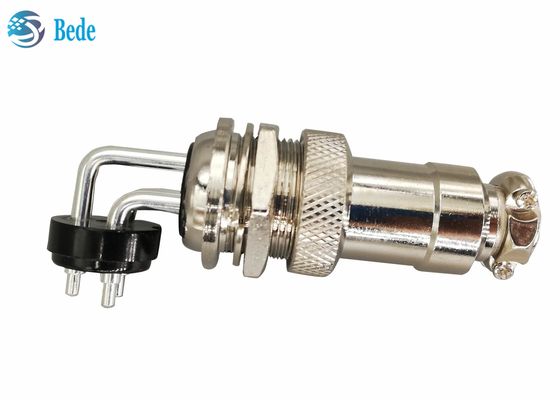

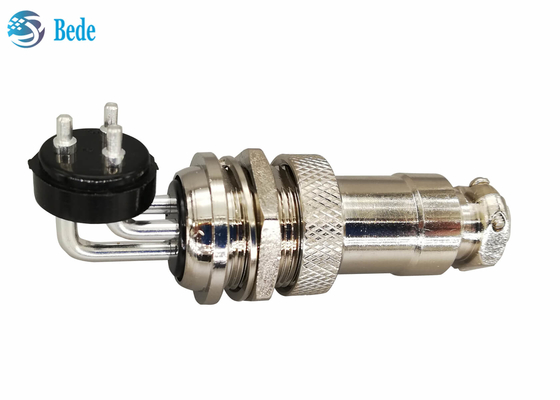

GX 20 2 3 4 Pin Aviation Connector Elbow Male And Straight Female Kits Panel Mount Connector

GX 20 2 3 4 Pin Aviation Connector Elbow Male And Straight Female Kits Panel Mount Connector
GX 20 2 3 4 Pin Aviation Connector Elbow Male And Straight Female Kits Panel Mount Connector GX 20 2 3 4 Pin Aviation Connector Elbow Male And Straight Female Kits Panel Mount Connector GX 20 2 3 4 Pin Aviation Connector Elbow Male And Straight Female Kits Panel Mount Connector GX 20 2 3 4 Pin Aviation Connector Elbow Male And Straight Female Kits Panel Mount Connector GX 20 2 3 4 Pin Aviation Connector Elbow Male And Straight Female Kits Panel Mount Connector

Large Image :  GX 20 2 3 4 Pin Aviation Connector Elbow Male And Straight Female Kits Panel Mount Connector

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: CE
Model Number: GX-20-ML-2/3/4
Payment & Shipping Terms:
Minimum Order Quantity: 300sets
Price: negotiation
Packaging Details: PE bags, 100 stes per carton
Delivery Time: 2 days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 9000 sets per day
Contact Now
Detailed Product Description
Housing Material: Zinc Alloy Insulation Materials: Bakelite
Contact Material: Copper, Silver Plated Fastener Material: Stainless Steel
Operating Temperature: -50 ~ +70℃ Mounting Holes: 19mm
Wiring Type: Soldering Application: Aviation Navigation
Highlight:

GX 20 4 pin aviation connector

,

2 3 4 pin aviation connector

,

4Pins Panel Mount Connector

GX 20 Connector Elbow​ Male And Straight Female Kits 2 3 4 Pins Panel Mount Connector

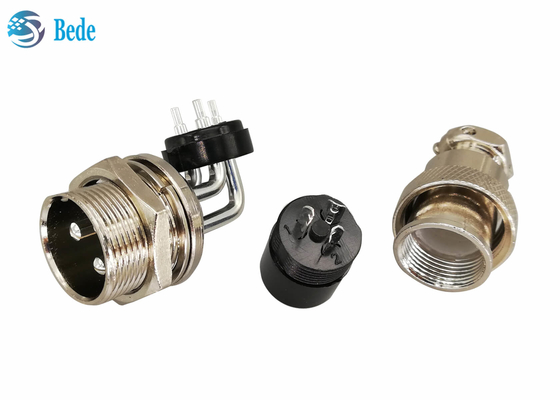

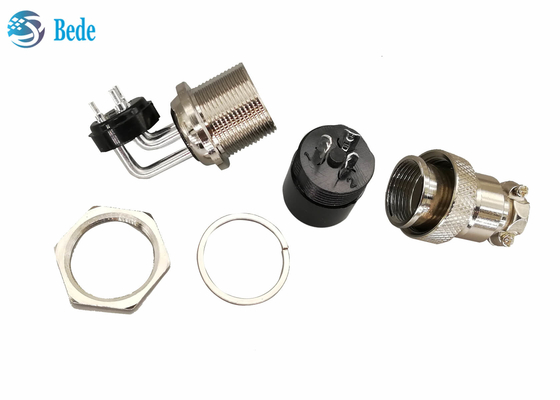

Structure

  1. L type male plug, housing is zinc alloy materials, contacter is silver plated copper materials
  2. Hex nut and spring washer, M19, stainless steel materials, for installing male plug on panel
  3. bakelite, insulator of female end
  4. nut, zinc alloy materials, fixed plug and socket after connection
  5. housing for female end, zinc alloy materials
  6. contacter, copper material, silver plated,

GX 20 2 3 4 Pin Aviation Connector Elbow Male And Straight Female Kits Panel Mount Connector 0

Electricity data

poles 2 pin 3  pins 4 pins
Rated voltage 250V 250V 250V
Rated current 10A 7A 7A
Operating Voltage 200V 200V 200V
Insulation resistance 1000MΩ
Contact resistance 3mΩ
Applicable temperature -50 ℃ ~ +70 ℃



Similar product

Other types of GX20 products in stock, please contact us or back to the product catalog to know more

GX 20 2 3 4 Pin Aviation Connector Elbow Male And Straight Female Kits Panel Mount Connector 1
