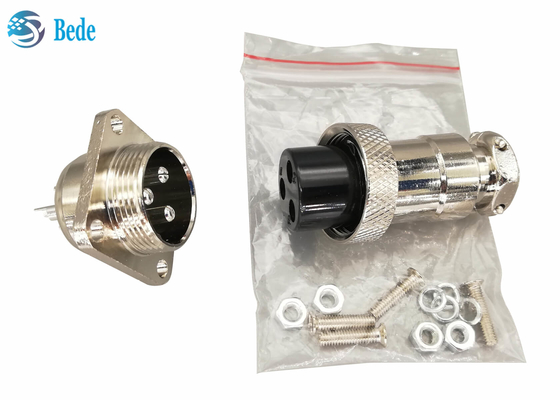

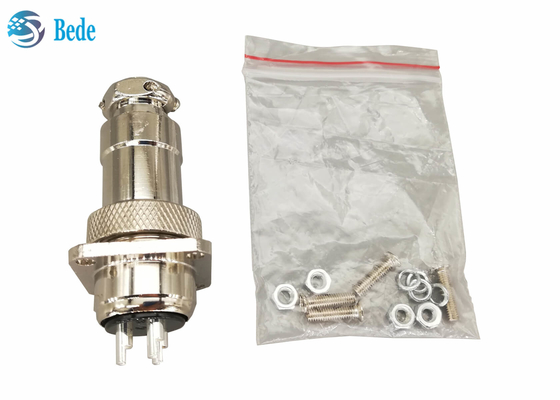

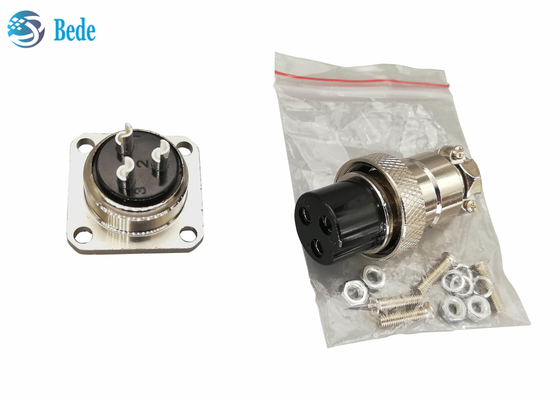

Panel Mount Circular 9 Pins - 2 Pin Aviation Connector GX20 With Square Flange M19 Male Female Set

Panel Mount Circular 9 Pins - 2 Pin Aviation Connector GX20 With Square Flange M19 Male Female Set

Brand Name: BEDE
Model Number: GX20-SF-2/3/4/5/6/7/89
MOQ: 150pcs
Price: negotiation
Packaging Details: PE bags,100pcs per carton
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
CHINA
Certification:
CE ROHS
Gender:
Male And Female
Application:
Automotive,Power,Military,Aviation
Color:
Metal
Shape:
Round
Ambient Temperature:
-40℃~+85℃
Pin:
2~9
Material:
Zinc Alloy
Rated Current:
5~10A
Supply Ability:
3000pcs pay day
Highlight:

2 pin aviation connector GX20

,

2 pin aviation connector M19

,

GX20 5 pin aviation connector

Product Description

Panel Mount Connector Circular Connector With Square Flange M19 Male Female Set 2~9 Pins



Product structure

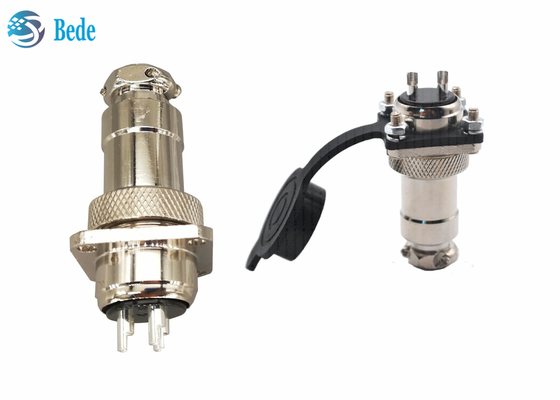

1. Silicone gasket, choose whether it contains the dust cover according to needs

2. Male end, installed on the panel, the mounting hole size is 19mm

3. Bakelite, female end,

4. Housing of female end, fixed wires and female end, zinc alloy materials,

5. Nut, for locking after connection

6. screws, nuts and washer, fix the male end to the panel, stainless steel materials

Panel Mount Circular 9 Pins - 2 Pin Aviation Connector GX20 With Square Flange M19 Male Female Set 0

Electricity data

Poles 2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin
Rated current 10A 7A 7A 7A 5A 5A 5A 5A
Rated voltage 250V 250V 250V 250V 150V 150V 150V 150V
Withstand voltage test  AC1500V *1min
Contact resistance  -50℃ ~ +70℃



Series products

We have series of GX20 products as follows, all of them are both male and female suits, it is also possible to buy only male and female, if you need, please contact our sales

Panel Mount Circular 9 Pins - 2 Pin Aviation Connector GX20 With Square Flange M19 Male Female Set 1
