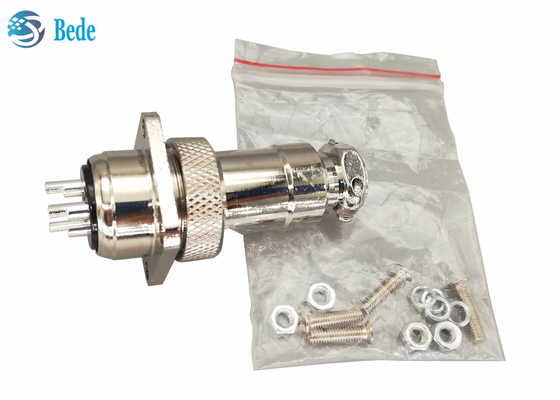

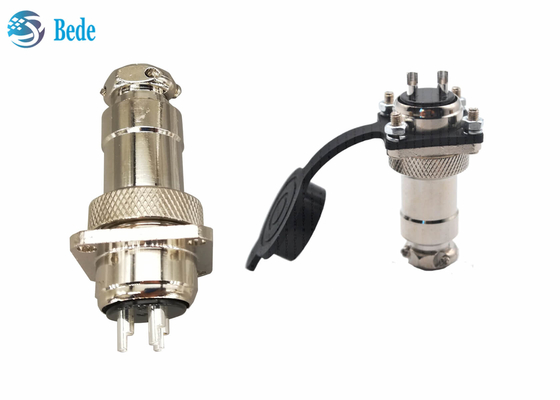

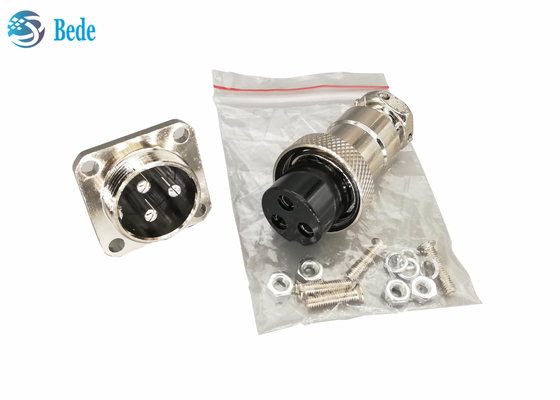

Square Flange Gx20 Connector M19 Male Female Set 10 12 14 15 pin

Square Flange Gx20 Connector M19 Male Female Set 10 12 14 15 pin
Square Flange Gx20 Connector M19 Male Female Set 10 12 14 15 pin Square Flange Gx20 Connector M19 Male Female Set 10 12 14 15 pin Square Flange Gx20 Connector M19 Male Female Set 10 12 14 15 pin

Large Image :  Square Flange Gx20 Connector M19 Male Female Set 10 12 14 15 pin

Product Details:
Place of Origin: CHINA
Brand Name: BEDE
Certification: CE ROHS
Model Number: GX20-SF-10/12/14/15
Payment & Shipping Terms:
Minimum Order Quantity: 180pcs
Price: negotiation
Packaging Details: PE bags，100pcs per carton
Delivery Time: within 48 hours after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000pcs pay day
Contact Now
Detailed Product Description
Gender: Male And Female Application: Automotive,Power,Military,Aviation
Color: Metal Shape: Round
Ambient Temperature: -40℃~+75℃ Pin: 10 12 14 15
Rated Current: 5A Mounting Holes: 19mm
Highlight:

Square Flange Gx20 Connector

,

Gx20 Connector 10pin

,

Gx20 12 pin aviation connector

Circular Connector With Square Flange GX20 M19 Male Female Set 10 12 14 15 Pin





Description

  • Connectors for panel mounting, male and female kits, the male end with square flange
  • Complete with accessories, coming with screws and nuts for panel mounting
  • The main material is zinc alloy, the insulator is bakelite, and the contact material is copper with silver plated





Square Flange Gx20 Connector M19 Male Female Set 10 12 14 15 pin 0

Electricity data

Poles 10pin 12pin 44pin 55pin
Rated current 5A 5A 5A 5A
Rated voltage 150V 150V 150V 150V
Withstand voltage test  AC1500V *1min
Contact resistance  -50℃ ~ +70℃



Series products

We have series of GX20 products as follows, all of them are both male and female suits, it is also possible to buy only male and female, if you need, please contact our sales

Square Flange Gx20 Connector M19 Male Female Set 10 12 14 15 pin 1
