Aviation Connector Plug
>
GX 20 Elbow Aviation Connector Plug Panel Mounting Connectors 90 Degrees Female And Male Kits

GX 20 Elbow Aviation Connector Plug Panel Mounting Connectors 90 Degrees Female And Male Kits

Brand Name: BEDE
Model Number: GX-20-L-8 9 10 12 14 15
MOQ: 100pcs
Price: negotiation
Packaging Details: PE bag, 100pcs per carton
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS
Type:
Aviation Connector
Applicable Temperature:
-45~70℃
Material:
Zinc Alloy
Pins:
8 9 10 12 14 15
Application:
Military Industry, Aviation
Wiring Type:
Welding
Size:
M19
Rated Current:
5A
Supply Ability:
5000 units per day
Highlight:

GX 20 Aviation Connector Plug

,

Elbow Aviation Connector Plug

,

GX20 panel mounting connectors

Product Description

Panel Mounting Connectors Sets GX 20 Elbow 90 Degrees Right Angle Connector



Description

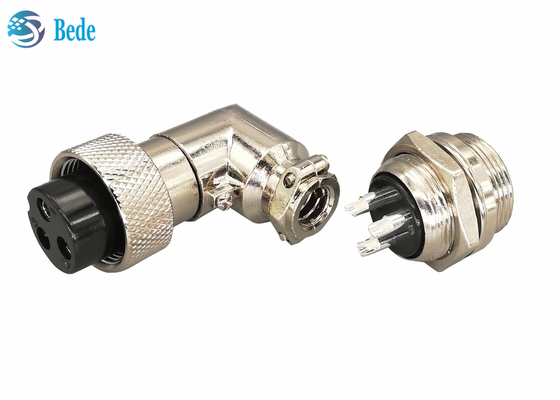

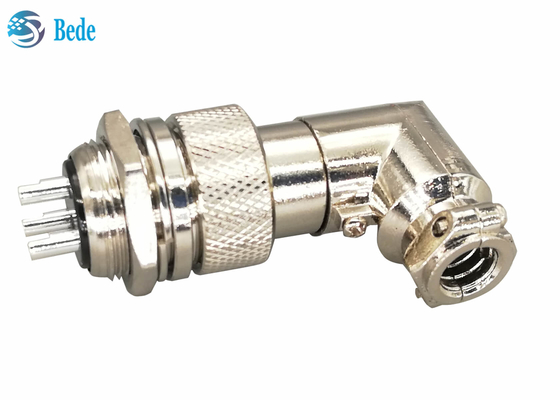

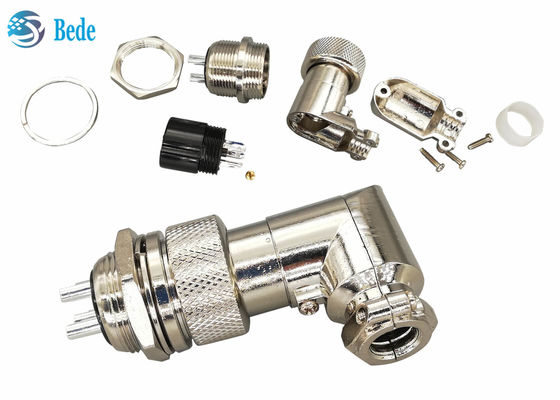

    This is a high-quality aviation connector, made of zinc alloy, including an elbow female connector  and an M19 male connector, the male end is installed on the panel, and the reserved hole of the panel is 19mm. The material of the contact is brass, silver plated, has excellent electrical conductivity and very low contact resistance. The insulating material is bakelite, which is heat-resistant and has high resistance, which ensures that this product can be used safely at -50~70℃.

  1. Factory outlet, buy male or female end only is available,
  2. Not retail, wholesale only
  3. Customized products are available, OEM ODM are welcome

GX 20 Elbow Aviation Connector Plug Panel Mounting Connectors 90 Degrees Female And Male Kits 0

Electricity data

pins 8 9 10 12 14 15
rated current 5A 5A 5A 5A 5A 5A
rated voltage 150V 150V 150V 150V 150V 150V
Withstand voltage 1500V 1500V 1500V 1500V 1500V 1500V
Insulation resistance(MΩ) 1000 1000 1000 1000 1000 1000



Similar product

GX20 right angle elbow connector 2 3 4 5 6 7 pins in stock

other GX20 panel mounting connector on sale also, please feel free to contact us via email

GX 20 Elbow Aviation Connector Plug Panel Mounting Connectors 90 Degrees Female And Male Kits 1
