Gx20 Connector
>
Zinc Alloy Gx20 Connector Rear Mounting Connector For Industrial Control Panel M19

Zinc Alloy Gx20 Connector Rear Mounting Connector For Industrial Control Panel M19

Brand Name: BEDE
Model Number: GX-20-2~10 12 14 15-R
MOQ: 100 kits
Price: negotiation
Packaging Details: PE bag,100 sets per carton
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS
Pins:
2~10, 12, 14,15
Application:
Automotive,Electrical Equipment
Connector:
M19 M/F
Rated Voltage:
150~250V AC/DC
Current Rating:
5~10A
Operating Temperature:
-50~70℃
Highlight:

Zinc alloy Gx20 Connector

,

Gx20 Connector M19

,

rear mounting connector M19

Product Description

Zinc Alloy GX20 Connectors Rear Mounting Connector For Industrial Control Panel M19

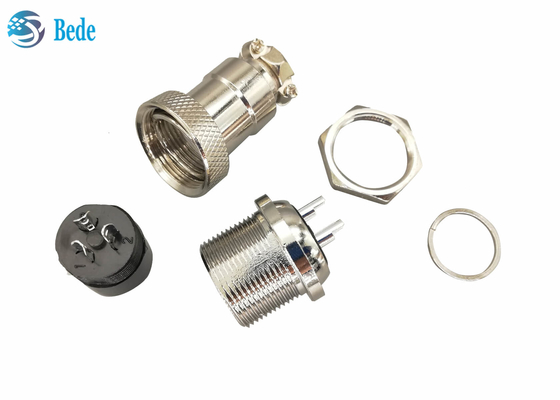

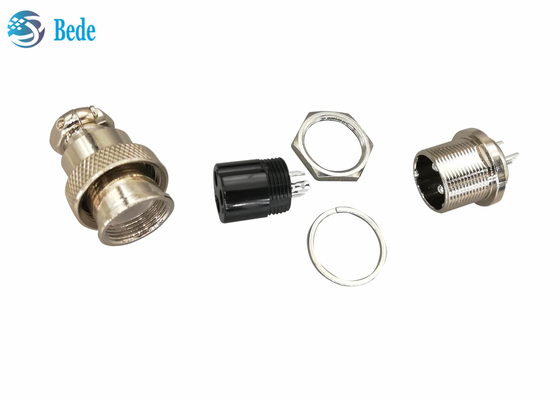

Structure

1. housing for female end, zinc alloy materials

2. female end, bakelite material, fixed in housing after wire welding

3. male end, mount on the panel after wire welding

4&5. nut and spring washer, used for fixing the male end to the panel.



Zinc Alloy Gx20 Connector Rear Mounting Connector For Industrial Control Panel M19 0

Electricity data

Poles Rated current Rated voltage Withstand voltage Contact hole size Φ
2 pin 10A 250V 1500V 2.95mm
3 4 5 pins 7A 250V 1500V 2.95mm
6 7 pins 5A 150V 1500V 2.0mm
8 9 pins 5A 150V 1200V 1.5mm
10 12 14 15 pins 5A 150V 1200V 1.5mm

Zinc Alloy Gx20 Connector Rear Mounting Connector For Industrial Control Panel M19 1



Similar products

  we have the follows GX20 Connectors  in stock, feel free to contact us if you are interested in it.

Zinc Alloy Gx20 Connector Rear Mounting Connector For Industrial Control Panel M19 2
