M25 Circular Aviation Connector 4 Pin With Round Flange And Dust Cover 300V 20A

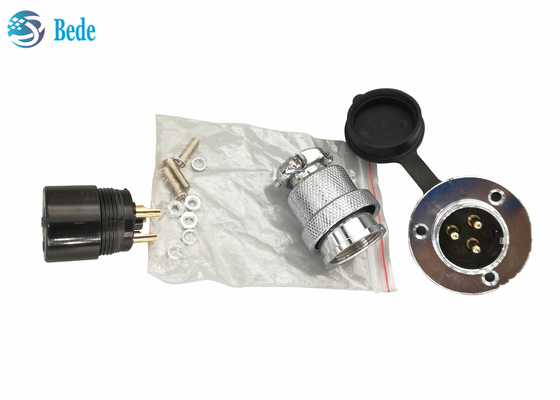

Large Image : M25 Circular Aviation Connector 4 Pin With Round Flange And Dust Cover 300V 20A

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE Rohs
Model Number:	GX-25-2 / 3 / 4 / 5 / 6

Payment & Shipping Terms:

Minimum Order Quantity:	100sets
Price:	negotiation
Packaging Details:	packing in PE bag each and then 100 sets per carton
Delivery Time:	within 48 hours
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	6000 sets per day

Contact Now

Detailed Product Description

Pins:	2 3 4 5 6 7	Materials:	Zinc Alloy
Rated Current:	12~20A	Reted Voltage:	300V / 250V
Wiring Type:	Welding	Connector Type:	Male And Female
Highlight:	M25 Aviation Connector , M25 Circular connector , 4 pin aviation connector 300V

M25 Circular Connectors Aviation Connector With Round Flange And Dust Cover 300V 20A

Description

High-current aviation connectors for rail transit, aviation, navigation, industrial control, test instruments and other fields
Panel mounting model, panel mounting hole size is 25mm
Suitable for temperature range of -50~+70℃
Wiring method: welding
Pins: 2 3 4 5 6 7 pins

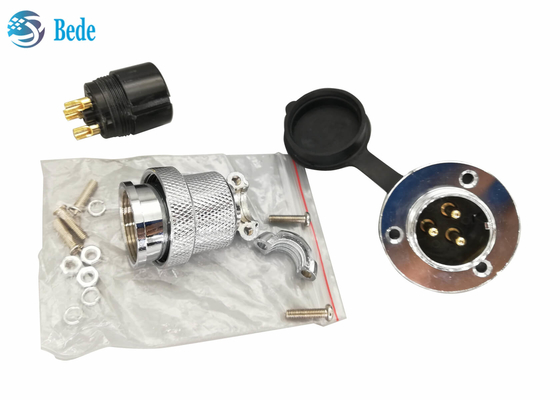

M25 Circular Aviation Connector 4 Pin With Round Flange And Dust Cover 300V 20A 0

Structure

1.Screw nut and washers for mounting male connector on panel

2 & 3.Silicone gaskets and dust caps

4. Female connector

5.Male end with flange

6. contact pins, brass material and silver plated

Electrical data

pins	2pin	3pin	4pin	5pin	6pin	7pin
Rated current / A	20	20	15	15	12	12
Rated voltage / V	300	300	250	250	250	250
Operating Voltage / V	500	500	400	400	300	200
size of contact hole / mm	3.5	3.5	3.5	3.0	3.0	3.0

Similer products

M25 circular connector with round flange 8 9 10 12 pins in stock

M25 circular connector with square flange in stock 2 3 4 5 6 7 8 9 10 12 pins in stock

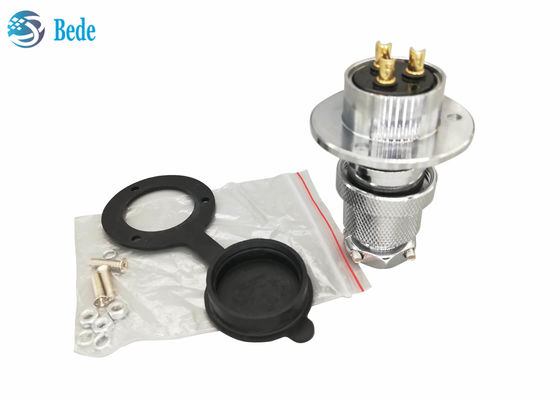

M25 Circular Aviation Connector 4 Pin With Round Flange And Dust Cover 300V 20A 2
