Self Locking M19 Waterproof Connector PA66 Material Cable To Panel Rear Mounting
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | CE RoHS |
| Model Number | EW-19-M-2/3 |
| Minimum Order Quantity | 100pcs |
| Price | negotiation |
| Packaging Details | packing in PE bags and 100pcs per carton |
| Delivery Time | within 5 days after payment |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 60000sets per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | PA66(UL94V-0) | Pins Material | Gold Plated Brass |
|---|---|---|---|
| Rated Current | 20A | Rated Voltage | 450V |
| Pins | 2~10 11 12 | Wiring Method | Welding |
| Waterproof | IP68 | Applicable Temperature | -40~+105℃ |
| High Light | PA66 M19 Waterproof Connector,Self Locking M19 Waterproof Connector,M19 self locking connector |
||
Product Description

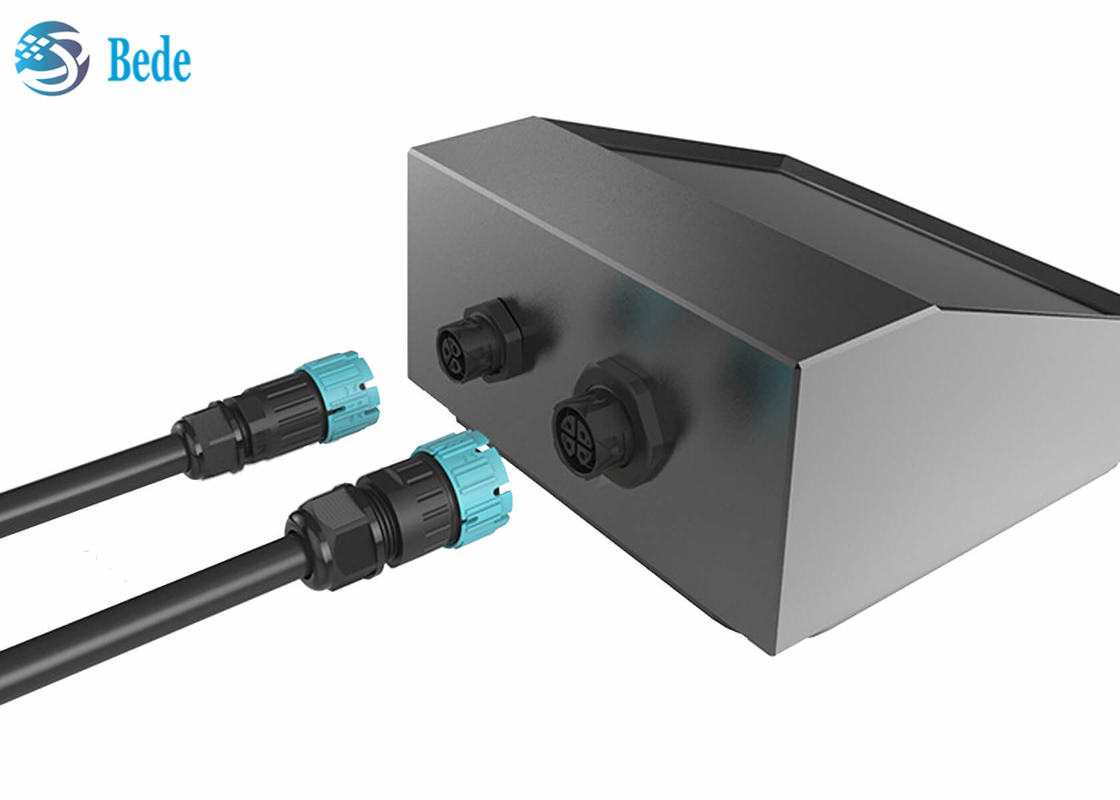

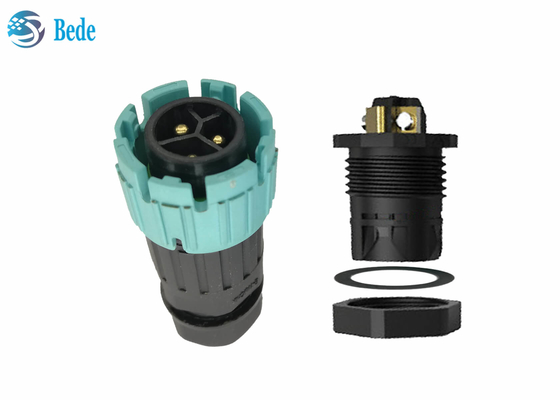

Self Locking M19 Waterproof Connector PA66 Material Cable To Panel Rear Mounting

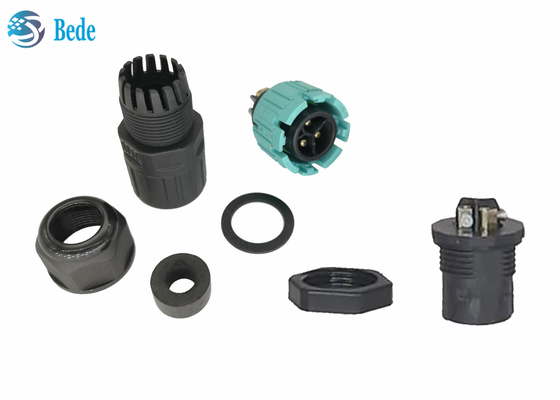

Product Structure
1.Female connector, panel mounting connector, rear mounting style, contact pins material is brass with 4μ gold plated;
2. Self lock parts, automatically lock male and female after connection, rotate it when unplugging
3.Contact materials and screws for wiring, contact pins material is brass with 4μ gold plated;
4. Housing for male connector
5.O-ring, rubber, grip the cable with 4 and 6 for waterproofing, available in the following three sizes to accommodate different cables
6. Nut, PA66 UL94V-0
Notice:
1. Tightening of all nuts is important for waterproofing
2. This waterproof connector has two wiring methods, there are 2pin, 3pin for crimping methods, 2 3 4 5 6 7 8 9 10 11 12pin for soldering methods
| wirinfg method | pin | rated current | rated voltage |
| crimping | 2 3 | 20A | 450V |
| pins | 2 3 pin | 4 pin | 5 6 7 8 9 10 11 12 pin |
| rated current | 20A | 15A | 15A |
| rated voltage | 450V | 450A | 300V |
| wirinfg method | tin welding | ||
