9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover

9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover

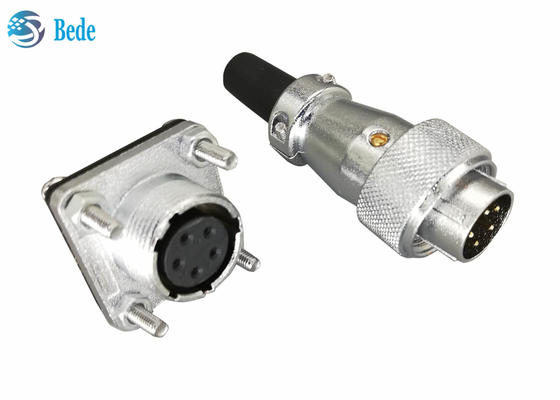

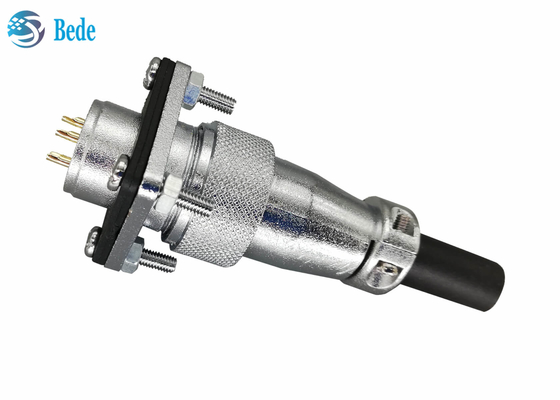

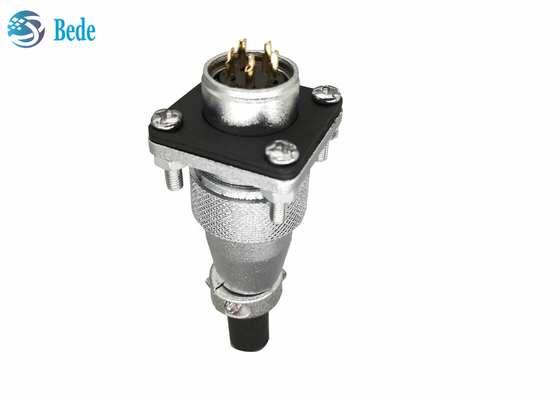

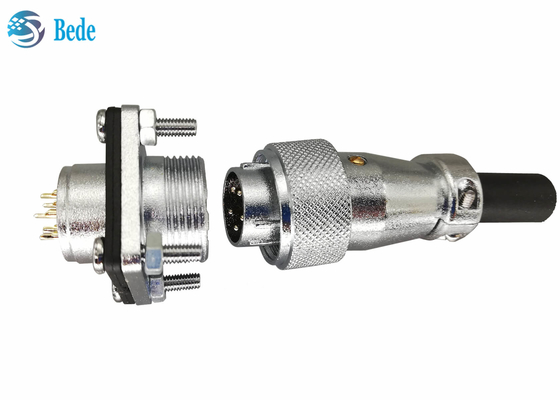

9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover 9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover 9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover 9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover

Large Image :  9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: CE ROHS
Model Number: WS20-SF-9 / 10 / 12 / 14
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: negotiation
Packaging Details: packing in PE bags and 100 sets per carton
Delivery Time: within 2 days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000 sets per day
Contact Now
Detailed Product Description
Rated Current: 5A Reted Voltage: 400V
Weight: 0.105kg Applicable Temperature: -40~+80℃
Insulation Resistance: 2000MΩ Contact Resistance: 0.005Ω
Applicable Wire: 18AWG Contact Material: Brass With Gold Plated
Highlight:

WS20 Circular Connectors

,

400V 5A Circular Connectors

,

400V 12 pin circular connector

WS20 Circular Connectors With Square Flange And Dust Cover 5 6 7 8 Pin 500V 10A



Product description

   A military-quality connector with a zinc alloy housing, PPS plastic insulator, and gold-plated copper contact pins. Its a panel mounting type, the wiring method is welding, 20.5mm mounting holes and 4 pcs  2.3mm flange mounting holes should be reserved on the panel. This circular connector suitable for -40~+85℃ environment, suitable cable diameter 6 mm, 11AWG, widely used in military industry, navigation, aviation, oil exploration, industrial control and other fields.

   There are 2~10, 12 and 14 pin in stock, the default delivery is the A model in the picture below, if the B model is required, please contact us.



9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover 0



Product Size

   Wiring end:  ΦD=25.8mm     L=49.5mm        Φdmax=11.6mm

   Panel mounting end and mounting hole:

Φd1 D L L1 L2 B Φd b Φ
M20 M22 14mm 28mm 23mm 22mm 20.5mm 22mm 3.2mm



9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover 1



Electrical data

Pin

Rated

current

Rated

voltage

Withstand

voltage

Contact

resistance

contact

hole

wire

size
9 / 10 / 12 /  14 5A 400V AC1200V*1min 0.005Ω Φ1.5 18AWG



Similar product

This page is about WS20, the WS16, WS24, WS28 on sales also, the series also includes panel mount mode, square flange mode, please feel free to contact us if you are interested

9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover 2
