Waterproof IP68 M16 Circular Connector Cable Docking Style 6~10 Pin 4A 200V

Waterproof IP68 M16 Circular Connector Cable Docking Style 6~10 Pin 4A 200V

Brand Name: BEDE
Model Number: GX-16-WP-6 7 8 9 10-D
MOQ: 160 sets
Price: negotiation
Packaging Details: packing in PE bag each and 80 sets per carton
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS
Rated Current:
4A
Working Voltage:
200V
Mounting Hole:
16mm
Applicable Temperature:
-50~+70℃
Applicable Cable:
Φ7.0mm
Waterproof:
IP68
Withstand Voltage:
1500V
Insulation Resistance:
≥1500MΩ
Supply Ability:
7800 sets per day
Highlight:

m16 circular connector 4A 200V

,

m16 circular connector 10Pin

,

ip68 circular connector 4A 200V

Product Description

IP68 M16 Circular Connector Waterproof Conectors Cable Docking Style 6~10 Pin 4A 200V



Description

  1. Military quality circular connector, male and female connector set, waterproof IP68
  2. cable to cable, cable docking model, wiring method is welding
  3. Applicable cable Φ≤7.0mm, applicable temperature range -50~70℃
  4. Suitable for navigation, aviation, oil exploration, industrial control, testing instruments and other fields
  5. factory outlet and no retail, MOQ 150 sets
  6. buy male or female only is available,MOQ 150pcs

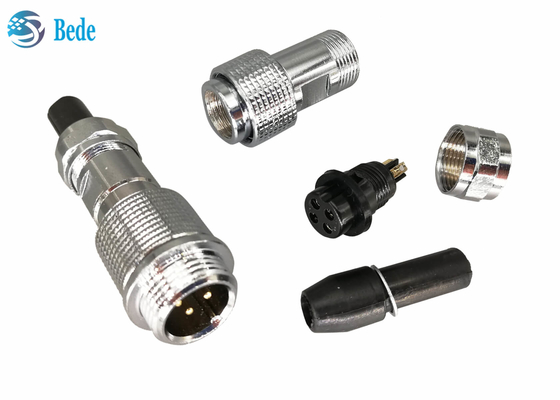

Waterproof IP68 M16 Circular Connector Cable Docking Style 6~10 Pin 4A 200V 0





Electrical data

pins rated current working voltage Contact resistance Withstand voltage
6 7 8 9 10 4A 200V ≤3mΩ 1500C

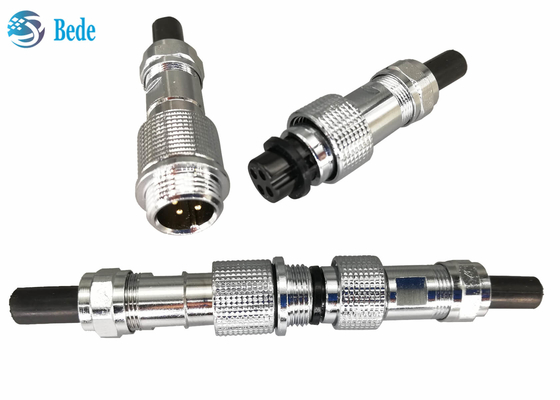

Waterproof IP68 M16 Circular Connector Cable Docking Style 6~10 Pin 4A 200V 1

All familier

About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.

1. Panel mounting model-- front mounting

2. Cable docking model

3. Panel mounting model--Rear mounting

4. Panel mounting model with round flange

5. Panel mounting model with square flange

6. Panel mounting model with rhombus flange

7. PCB welding model with elbow pins

8. PCB welding model with straight pins

9. Panel mounting model with right angle--front mounting

10. Waterproof cable docking model

11. Waterproof panel mount model

12. Panel mounting model with right angle--rear mounting



Waterproof IP68 M16 Circular Connector Cable Docking Style 6~10 Pin 4A 200V 2
