PA66 M19 Self Locking Round Connector Male To Female waterproof IP68

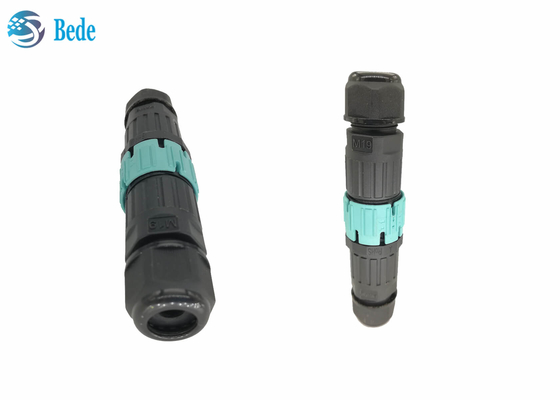

Large Image : PA66 M19 Self Locking Round Connector Male To Female waterproof IP68

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	EW-19-D-S

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	negotiation
Packaging Details:	packing in PE bags and 100pcs per carton
Delivery Time:	within 5 days after payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50000sets per week

Contact Now

Detailed Product Description

Housing Material:	PA66(UL94V-0)	Pins Material:	Gold Plated Brass
Rated Current:	20A	Rated Voltage:	450V
Pins:	2 / 3	Wiring Method:	Crimp
Waterproof:	IP68	Applicable Temperature:	-40~+105℃
Highlight:	Self Locking Round Connector , M19 Round Connector , m19 waterproof connector

PA66 M19 Self Locking Round Connector Male To Female waterproof IP68

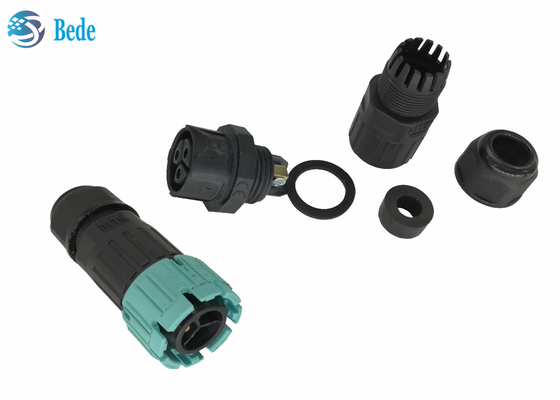

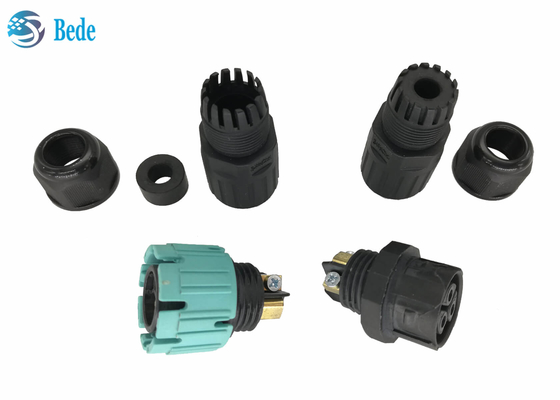

Product Structure

1. Nut, PA66 UL94V-0

2. Housing for male connector

3. Male connector and self locking nut, rotate it when unplugging the connector

4. Female connector, contact pins material is brass with 4μ gold plated

5.Screws for crimping wires

6.O-ring, rubber, grip the cable with 1 and 2 for waterproofing, available in the following three sizes to accommodate different cables

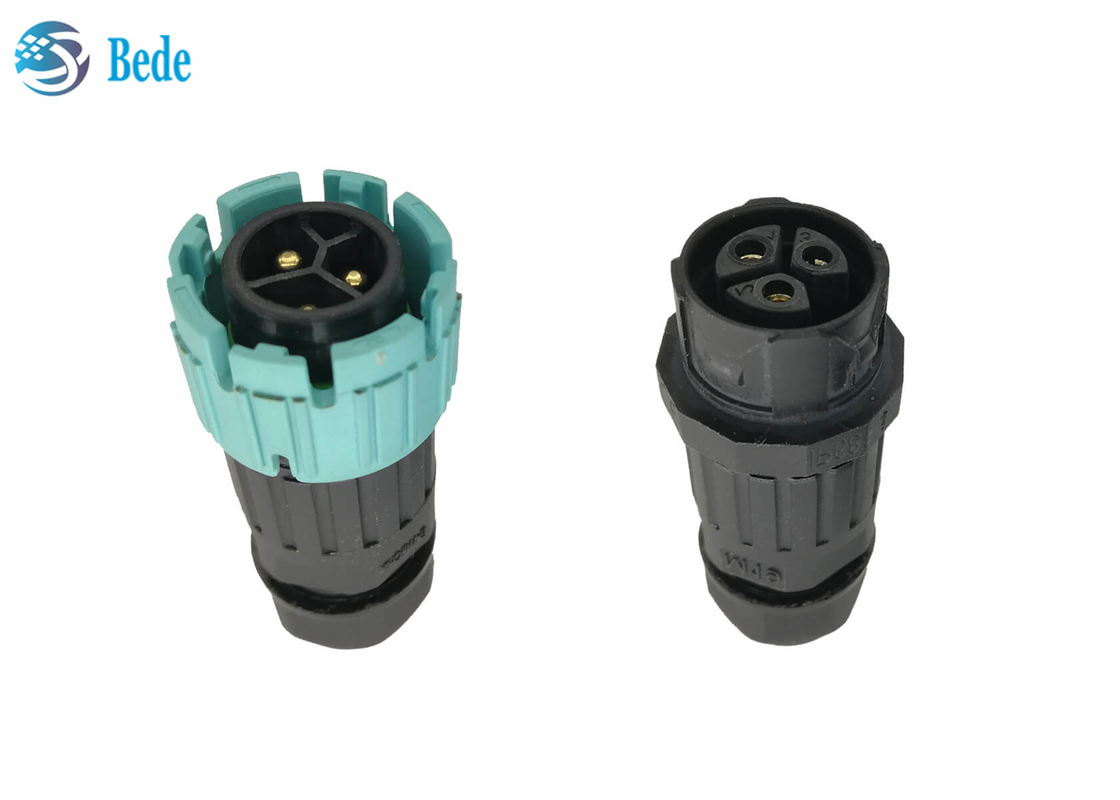

PA66 M19 Self Locking Round Connector Male To Female waterproof IP68 0

PA66 M19 Self Locking Round Connector Male To Female waterproof IP68 1

Similar products

1. waterproof connector, cable docking style, wiring method welding

2. waterproof connector, cable docking style, wiring method crimp

3. waterproof connector, panel mounting style, wiring method welding

4. waterproof connector, panel mounting style, wiring method crimp

PA66 M19 Self Locking Round Connector Male To Female waterproof IP68 2
