Round Flange And Dust Cover 8 9 10 12 Pin Circular Connectors For Panel Mounting
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | CE Rohs |
| Model Number | GX-25-8/ 9 / 10 / 12 |
| Minimum Order Quantity | 100sets |
| Price | negotiation |
| Packaging Details | packing in PE bag each and then 100 sets per carton |
| Delivery Time | within 48 hours |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 6000 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pins | 8 / 9 / 10 / 12 | Materials | Zinc Alloy |
|---|---|---|---|
| Rated Current | 5~12A | Reted Voltage | 150V |
| Wiring Type | Welding | Connector Type | Male And Female |
| High Light | 10 12 pin circular connectors,Round 8 pin circular connectors,Panel 9 pin circular connectors |
||
Product Description
Circular Connectors With Round Flange And Dust Cover 8 9 10 12 Pin For Panel Mounting
Description
- High-current aviation connectors for rail transit, aviation, navigation, industrial control, test instruments and other fields
- Panel mounting model, panel mounting hole size is 25mm
- Suitable for temperature range of -50~+70℃
- Wiring method: soldering
- Pins: 8 9 10 12 pins

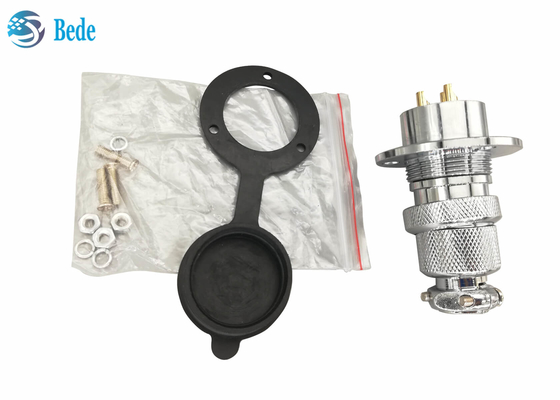

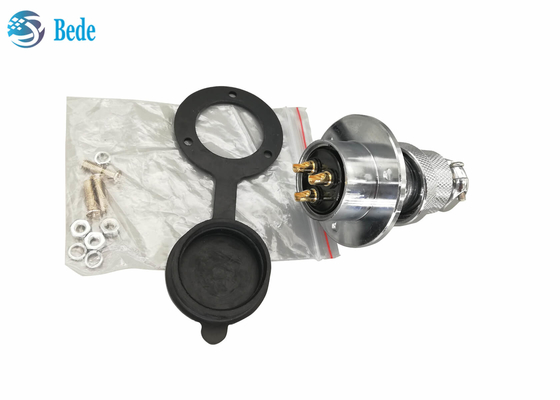

- Complete accessories, coming with all the nuts , washers and screws

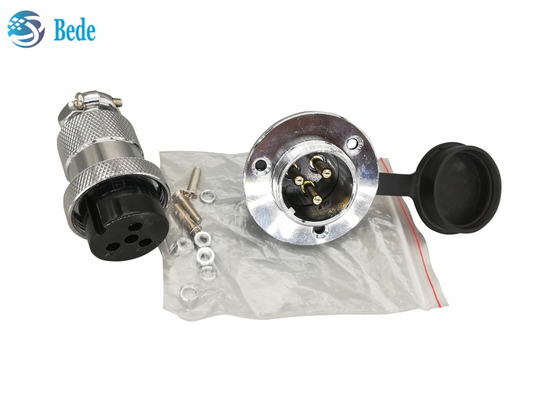

Structure
1.Silicone gaskets and dust cover
2.Male end with flange, zinc alloy materials,
3.Insulator, bakelite material
4.Screw nut and washers for mounting male connector on panel
5.Contacter, brass materials,
6. Nut, zinc alloy materials, fixed the male end and fermale end after connection
7.Female connector, zinc alloy moterials
Electrical data
| pins | 8pin | 9pin | 10pin | 12pin |
| Rated current / A | 12 | 7 | 7 | 5 |
| Rated voltage / V | 250 | 150 | 150 | 150 |
| Operating Voltage / V | 200 | 200 | 200 | 200 |
| size of contact hole / mm | 2.0 | 2.0 | 2.0 | 1.5 |
