2 3 4 Pin GX12 Aviation Connector With Square Flange Male And Female Sets

Large Image : 2 3 4 Pin GX12 Aviation Connector With Square Flange Male And Female Sets

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE
Model Number:	GX12-G-2 3 4

Payment & Shipping Terms:

Minimum Order Quantity:	200 sets
Price:	negotiation
Packaging Details:	PE bag, 100sets per carton
Delivery Time:	within 48 hours
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	6000 sets per day

Contact Now

Detailed Product Description

Pins:

2 / 3 / 4

Material:

Zinc Alloy

Rated Current:

Rated Voltage:

Highlight:

2Pin Gx12 Aviation Connector

4Pin Gx12 Aviation Connector

gx12 4 pin connector

GX12 Aviation Connector With Square Flange Male And Female Sets 2 3 4 Pin

Description

Panel Mounting type connector, male and female sets
mounting hole 12mm
2 pin, 3 pin, 4 pins
male end with square flange, coming with screws and nuts for panel mounting
applicable for -50℃~ +70℃
main body is zinc alloy material, light, strong and anti-rust
contact material is copper with siliver plated, small contact resistance and high electrical conductivity

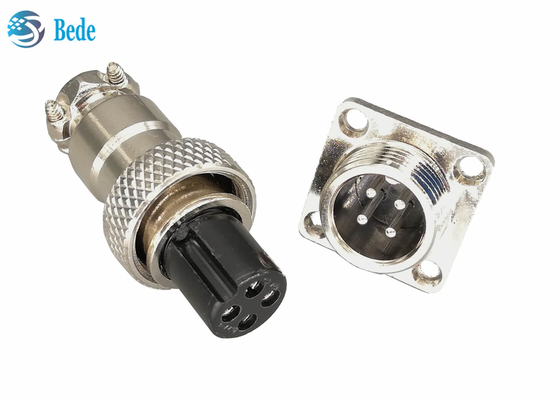

2 3 4 Pin GX12 Aviation Connector With Square Flange Male And Female Sets 0

Electrical data

Pins	rated current	rated voltage	Withstand voltage	Contact resistance
2	3A	150V	AC 1500V*1min	≤0.005Ω
3	3A	150V	AC 1500V*1min	≤0.005Ω
4	3A	150V	AC 1500V*1min	≤0.005Ω

Similar products

GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and elbow pins, GX12 waterproof type, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking type, GX12 docking type waterproof

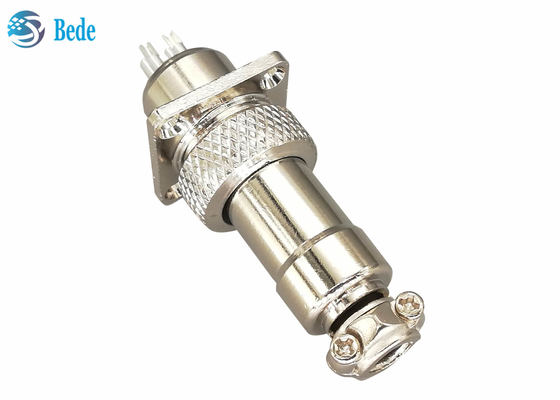

2 3 4 Pin GX12 Aviation Connector With Square Flange Male And Female Sets 1
