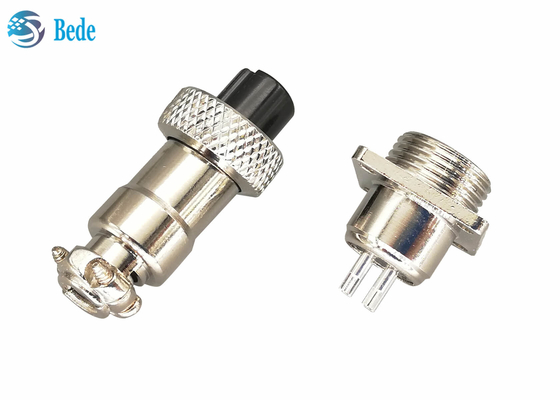

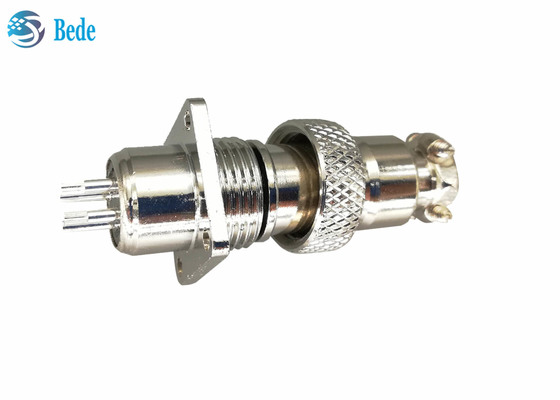

5 6 7 Pin M12 Circular Connector With Square Flange Male And Female Sets

Large Image : 5 6 7 Pin M12 Circular Connector With Square Flange Male And Female Sets

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE
Model Number:	GX12-SF-5 6 7

Payment & Shipping Terms:

Minimum Order Quantity:	100 sets
Price:	negotiation
Packaging Details:	PE bag, 100sets per carton
Delivery Time:	within 48 hours
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	6000 sets per day

Contact Now

Detailed Product Description

Pins:	5/6/7	Material:	Zinc Alloy
Rated Current:	3A	Woring Voltage:	200V
Mounting Hole:	M12	Weight:	40 Gram
Wiring Type:	Welding	Connect Type:	Male And Female
Highlight:	5Pin m12 circular connector , 6Pin m12 circular connector , 7Pin m12 circular connector

M12 Circular Connector With Square Flange Male And Female Sets 5 6 7 Pin

Structure

1. main body, zinc alloy

2. nut, fix the male and female after connection

3.Insulator, bakelite material

4.screw hole in flange, diameter 2.5mm

5, male connector plug, zinc alloy material

6,contact pins, brass material with silver plated

5 6 7 Pin M12 Circular Connector With Square Flange Male And Female Sets 0

Electrical data

Pins	rated current	rated voltage	Withstand voltage	Contact resistance	suit temperature
5	3A	150V	AC 1500V*1min	0.003Ω	-50℃~ +70℃
6	3A	150V	AC 1500V*1min	0.003Ω
7	3A	150V	AC 1500V*1min	0.003Ω

Similar products

GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and elbow pins, GX12 waterproof type, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking type, GX12 docking type waterproof

5 6 7 Pin M12 Circular Connector With Square Flange Male And Female Sets 2
