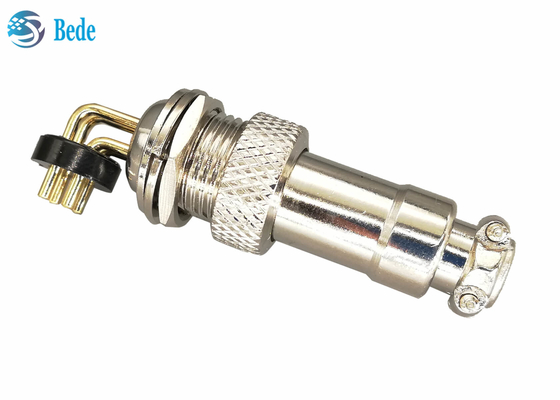

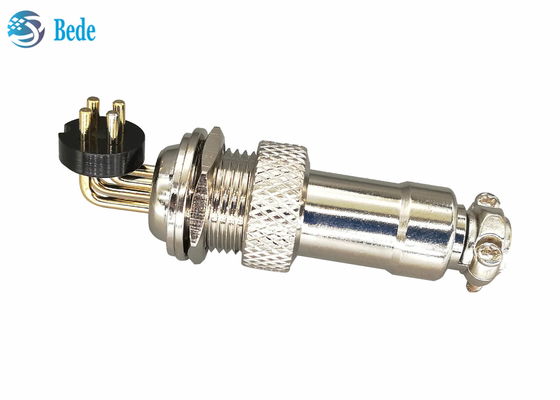

2~7 Pin PCB Welding GX12 Aviation Connector With Right Angle Pins 3A 200V

2~7 Pin PCB Welding GX12 Aviation Connector With Right Angle Pins 3A 200V
2~7 Pin PCB Welding GX12 Aviation Connector With Right Angle Pins 3A 200V 2~7 Pin PCB Welding GX12 Aviation Connector With Right Angle Pins 3A 200V 2~7 Pin PCB Welding GX12 Aviation Connector With Right Angle Pins 3A 200V 2~7 Pin PCB Welding GX12 Aviation Connector With Right Angle Pins 3A 200V

Large Image :  2~7 Pin PCB Welding GX12 Aviation Connector With Right Angle Pins 3A 200V

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: CE RoHS
Model Number: GX12-BP-2/3/4/5/6/7
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: negotiation
Packaging Details: 100sets per carton
Delivery Time: 5 days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 9000 sets per day
Detailed Product Description
Material: Zinc Alloy With Nickel Plated Pins Style: Brass, Right Angle
Rated Current: 3A Rated Voltage: 200V
Wire Diamete: 6 Millimeters Applicable Temperature: -50~+70℃
Insulation Resistance: 1500MΩ Contact Resistance: 0.003Ω
Highlight:

7Pin GX12 Aviation Connector

,

GX12 Aviation Connector 3A 200V

,

7Pin gx 12 connector

GX12 Aviation Connector 2~7 Pin PCB Welding Connector With Right Angle Pins 3A 200V

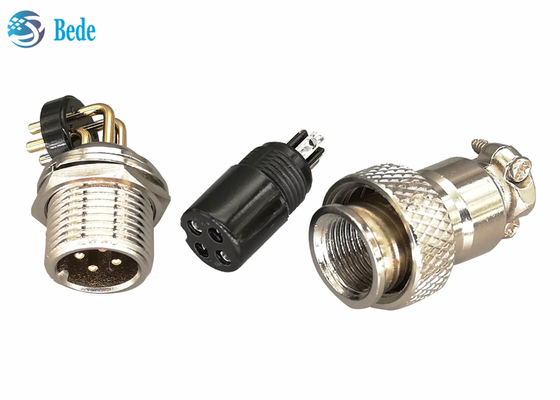

Product composition



1. male connector with right angle pins, housing material is zinc alloy with nickel plated, pins material is brass and insulator material is bakelite

2&3. spring washer and nut, stainless steel material, used for panel mounting

4. Female connector, bakelite material , black color

5, nut, zinc alloy with nickel plated, used for fixing male and female after connection

6, housing for female connecor, zinc alloy material with nickel palted



2~7 Pin PCB Welding GX12 Aviation Connector With Right Angle Pins 3A 200V 0

Description

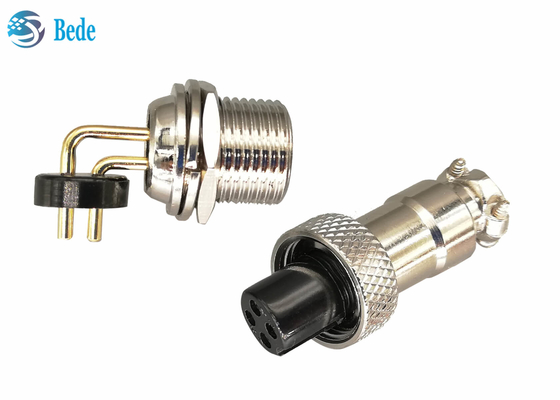

    This is a military grade connector for PCB soldering. Its housing is a zinc alloy material, nickel-plated, and the contact material is brass. The kit includes a female head and a male head, which are locked with a nut after connection, and are suitable for the external environment of -50~+70 degrees Celsius. The wiring method is welding; the size of the mounting hole is 12mm, and the applicable wire is 6mm.
    Buyers can buy the whole set of products, or buy male connectors or female connectors separately, there are 2 3 4 5 6 7 pins to choose from, but we are factory direct sales, not retail, please pay attention to our minimum order quantity

2~7 Pin PCB Welding GX12 Aviation Connector With Right Angle Pins 3A 200V 1

2~7 Pin PCB Welding GX12 Aviation Connector With Right Angle Pins 3A 200V 2

2~7 Pin PCB Welding GX12 Aviation Connector With Right Angle Pins 3A 200V 3

Similar products

   GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and elbow pins, GX12 waterproof type, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking type, GX12 docking type waterproof
