| Brand Name: | BEDE |
| Model Number: | WS16-P-2 / 3 / 4 |
| MOQ: | 200 sets |
| Price: | negotiation |
| Packaging Details: | 100 set per carton |
| Payment Terms: | T/T, Western Union, MoneyGram |

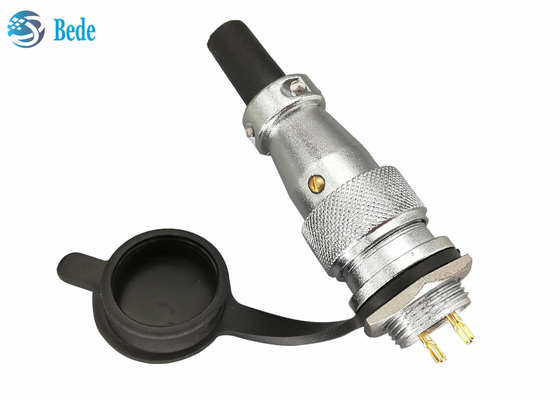

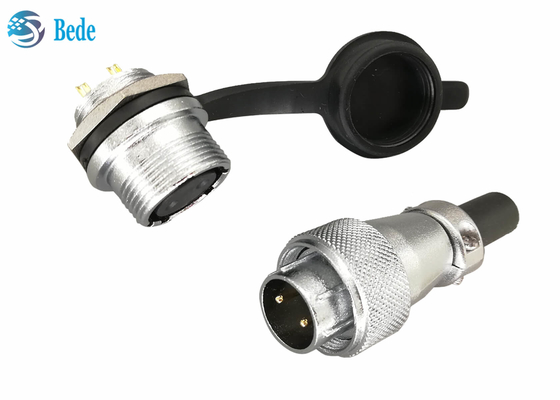

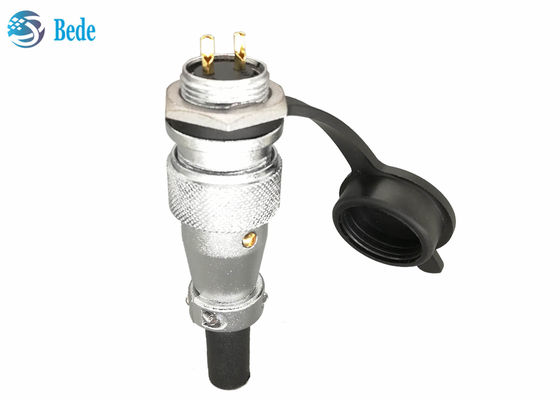

WS16 Circular Connector Panel Mounting Connectors 2 3 4 Pins 10A 500V With Dust Cover

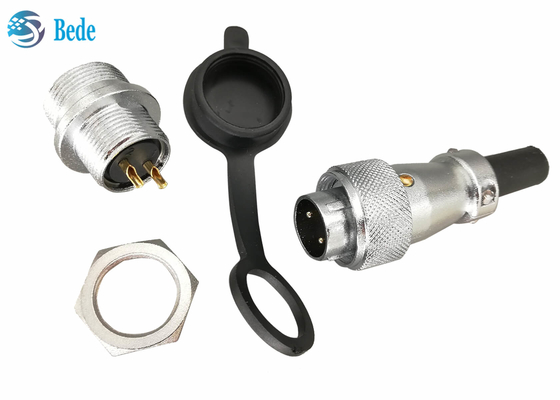

Product structure
1.Dust cover, PVC soft plastic
2&3,housing for male / female connector, zinc alloy with chrome plated, inner insulator material is PPS plastic
4.Nut,materials zinc alloy with chrome plated,used for fixing male and female adter connection
5.Housing, materials zinc alloy with chrome plated,used for fixing male end and cable
6.Cable protection sleeve, PVC soft plastic, suitable for cable diameter 6mm
7.nut for panel mounting
8.contact pins, brass material with gold plated
Product Size
Wiring end: ΦD=21 L=44.8mm Φd max=10mm
Panel mounting end: d=M16 D=M18 Cmax= 5mm L= 9.7mm L1=26 mm L2= 22mm B= 21mm
Mounting hole: Φd=16mm h=15.4mm
Notice
Our default that the wiring end is male connector and panel mounting end is the female connector, as shown in the following figure A type, if B type is required, please contact us in advance
Electrical data
| pins | rated current | rated voltage | contact hole diameter | contact resistance | wire section (AWG) |
| 2 / 3 | 10A | 500V | φ1.5 | 2.5mΩ | 14 |
| 4 | 5A | 500V | φ1.0 | 5mΩ | 18 |
Similar product
This page is about WS16, WS20, WS24, WS28 on sales also, the series also includes wire docking mode, square flange mode, please feel free to contact us if you are interested
|
|
| Brand Name: | BEDE |
| Model Number: | WS16-P-2 / 3 / 4 |
| MOQ: | 200 sets |
| Price: | negotiation |
| Packaging Details: | 100 set per carton |
| Payment Terms: | T/T, Western Union, MoneyGram |
WS16 Circular Connector Panel Mounting Connectors 2 3 4 Pins 10A 500V With Dust Cover
Product structure
1.Dust cover, PVC soft plastic
2&3,housing for male / female connector, zinc alloy with chrome plated, inner insulator material is PPS plastic
4.Nut,materials zinc alloy with chrome plated,used for fixing male and female adter connection
5.Housing, materials zinc alloy with chrome plated,used for fixing male end and cable
6.Cable protection sleeve, PVC soft plastic, suitable for cable diameter 6mm
7.nut for panel mounting
8.contact pins, brass material with gold plated
Product Size
Wiring end: ΦD=21 L=44.8mm Φd max=10mm
Panel mounting end: d=M16 D=M18 Cmax= 5mm L= 9.7mm L1=26 mm L2= 22mm B= 21mm
Mounting hole: Φd=16mm h=15.4mm
Notice
Our default that the wiring end is male connector and panel mounting end is the female connector, as shown in the following figure A type, if B type is required, please contact us in advance
Electrical data
| pins | rated current | rated voltage | contact hole diameter | contact resistance | wire section (AWG) |
| 2 / 3 | 10A | 500V | φ1.5 | 2.5mΩ | 14 |
| 4 | 5A | 500V | φ1.0 | 5mΩ | 18 |
Similar product
This page is about WS16, WS20, WS24, WS28 on sales also, the series also includes wire docking mode, square flange mode, please feel free to contact us if you are interested
