BEDE Dust Cover 5 6 7 Pin Circular Connectors 5A 500V WS16

  • BEDE Dust Cover 5 6 7 Pin Circular Connectors 5A 500V WS16
  • BEDE Dust Cover 5 6 7 Pin Circular Connectors 5A 500V WS16
  • BEDE Dust Cover 5 6 7 Pin Circular Connectors 5A 500V WS16
  • BEDE Dust Cover 5 6 7 Pin Circular Connectors 5A 500V WS16
  • BEDE Dust Cover 5 6 7 Pin Circular Connectors 5A 500V WS16
  • BEDE Dust Cover 5 6 7 Pin Circular Connectors 5A 500V WS16
Place of Origin China
Brand Name BEDE
Certification CE RoHS
Model Number WS16-P-5 / 6 / 7
Minimum Order Quantity 100 sets
Price negotiation
Packaging Details 100 set per carton
Delivery Time 3 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 4000 sets per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Chrome Plated Zinc Alloy Contact Material Brass With Gold Plated
Insulation Materials PPS Plastic Applicable Temperature -45℃ ~ +75℃
Rated Current 5A Rated Voltage 500V
Wiring Type Welding Model Panel Mounting
High Light

7 pin circular connectors 500V

,

7 pin circular connectors WS16

,

BEDE circular connector 7 pin
Leave a Message
Product Description

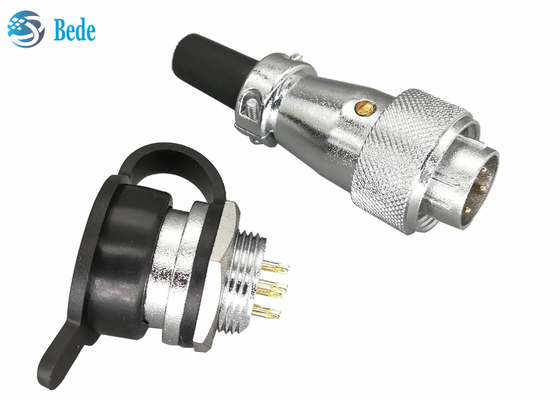

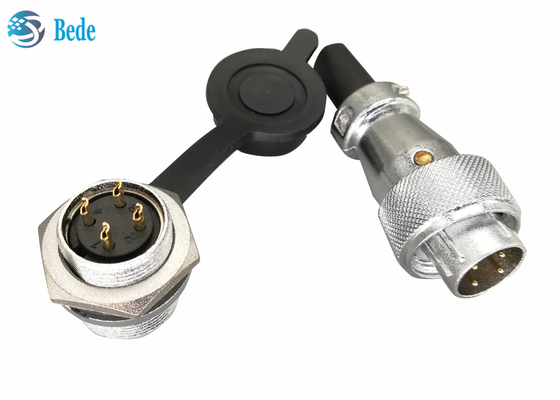

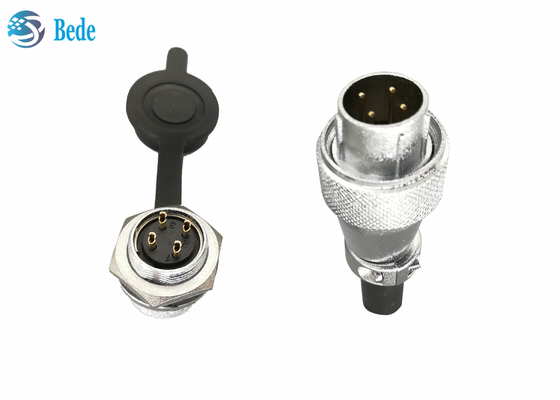

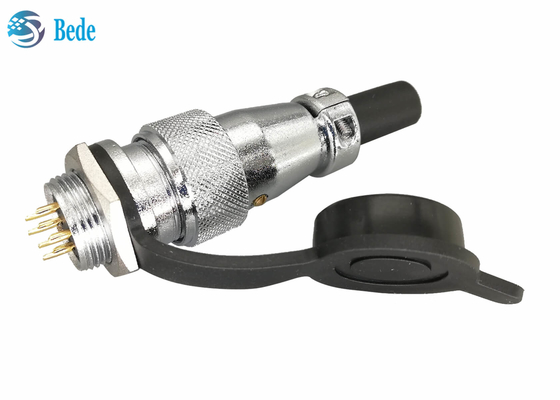

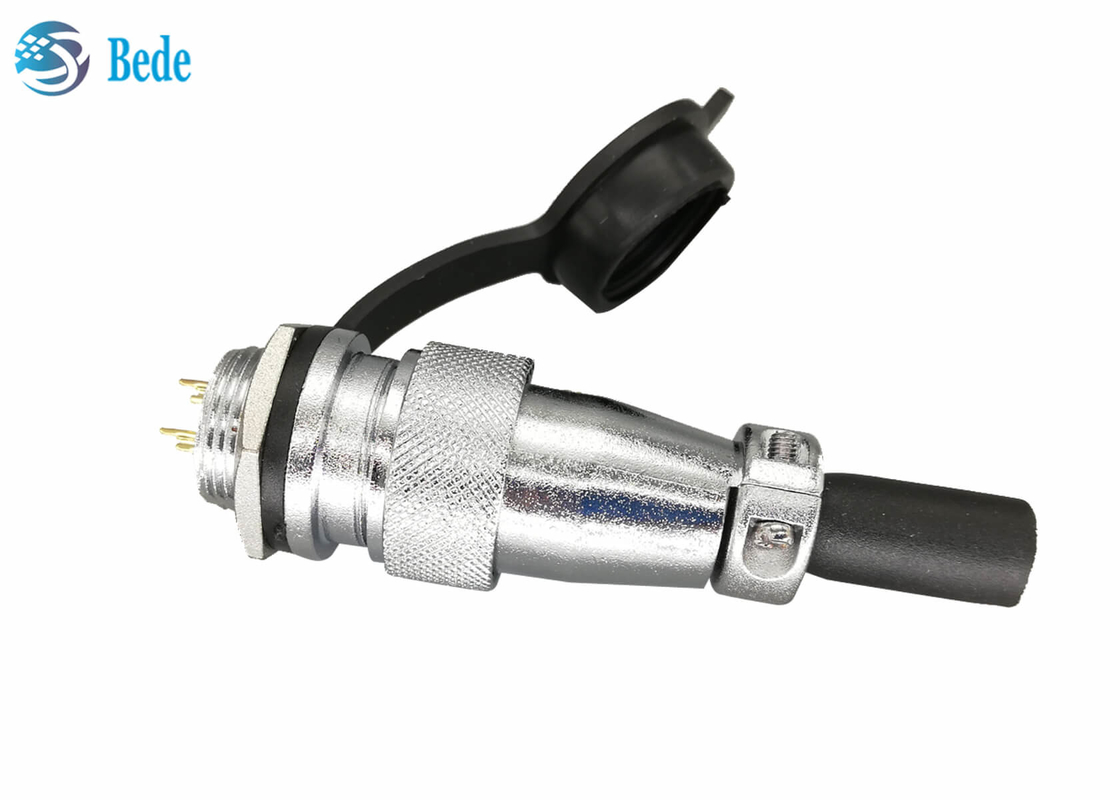

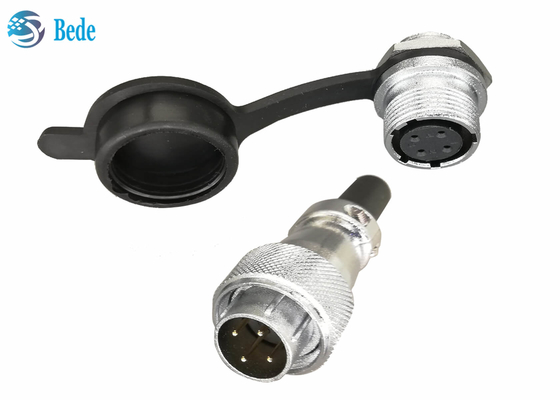

WS16 Circular Connector With Dust Cover Panel Mounting Connectors 5 6 7 Pins 5A 500V





Product Description

  1. WS16 circular connector kits, buy only the female connector or male connector are available
  2. Dust cover and cable cover material is PVC soft plastic, dustproof and moistureproof,
  3. Main body material is zinc alloy with chrome plated
  4. The insulator material is PPS plastic, the insulation resistance is greater than 2000MΩ
  5. Material of contact pins is brass, has good electrical conductivity, in order to reduce the contact resistance, it also has a gold-plated surface treatment
  6. Pins: 5  6 7



BEDE Dust Cover 5 6 7 Pin Circular Connectors 5A 500V WS16 0



Product Size

Wiring end:   ΦD=21   L=44.8mm   Φd max=10mm

 Panel mounting end:    d=M16   D=M18  Cmax= 5mm L= 9.7mm   L1=26 mm   L2= 22mm   B= 21mm

Mounting hole:    Φd=16mm   h=15.4mm

BEDE Dust Cover 5 6 7 Pin Circular Connectors 5A 500V WS16 1



Notice

  Our default that the wiring end is male connector and panel mounting end is the female connector, as shown in the following figure A type, if B type is required, please contact us in advance

BEDE Dust Cover 5 6 7 Pin Circular Connectors 5A 500V WS16 2



Electrical data



pins rated current rated voltage Withstand voltage working voltage wire section (AWG)
5 5A 500V 1500V 500V 18
6 5A 500V 1500V 500V 18
7 5A 500V 1200V 400V 18

BEDE Dust Cover 5 6 7 Pin Circular Connectors 5A 500V WS16 3

Similar product

This page is about WS16, WS20, WS24, WS28 on sales also, the series also includes wire docking mode, square flange mode, please feel free to contact us if you are interested



BEDE Dust Cover 5 6 7 Pin Circular Connectors 5A 500V WS16 4

Tags:

circular connector

military circular connector

Docking Circular Connectors
