WS16 Panel Mounting 8 9 10 Pin Circular Connector PVC soft plastic With Dust Cover

  • WS16 Panel Mounting 8 9 10 Pin Circular Connector PVC soft plastic With Dust Cover
  • WS16 Panel Mounting 8 9 10 Pin Circular Connector PVC soft plastic With Dust Cover
  • WS16 Panel Mounting 8 9 10 Pin Circular Connector PVC soft plastic With Dust Cover
  • WS16 Panel Mounting 8 9 10 Pin Circular Connector PVC soft plastic With Dust Cover
Place of Origin China
Brand Name BEDE
Certification CE RoHS
Model Number WS16-P-8 / 9 / 10
Minimum Order Quantity 100 sets
Price negotiation
Packaging Details 100 set per carton
Delivery Time 3 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 4000 sets per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applicable Temperature -50℃ ~ +70℃ Rated Current 5A
Rated Voltage 400V Wiring Type Welding
Applicable Wire 18AWG Wire Diameter 6mm
High Light

WS16 10 pin circular connector

,

PVC 9 pin circular connector

,

Dust Cover 10 pin circular connector
Leave a Message
Product Description

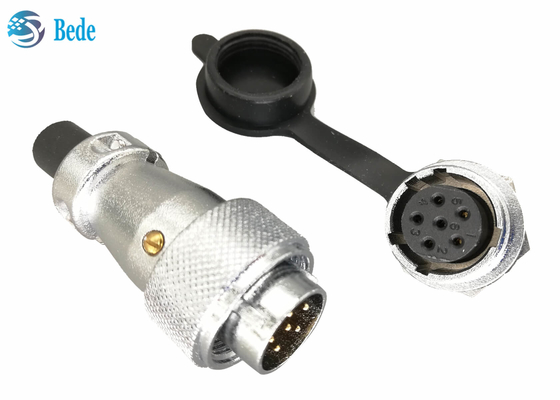

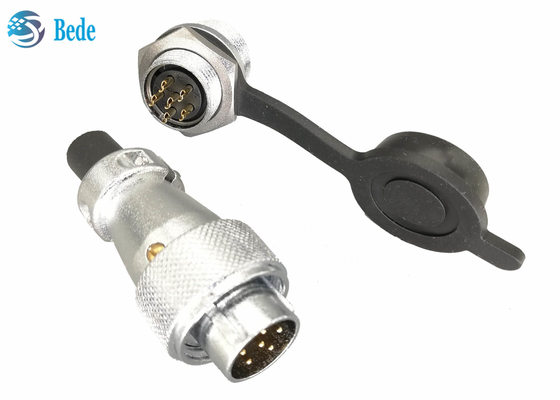

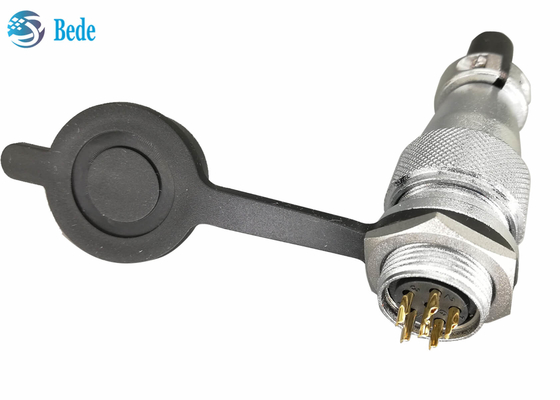

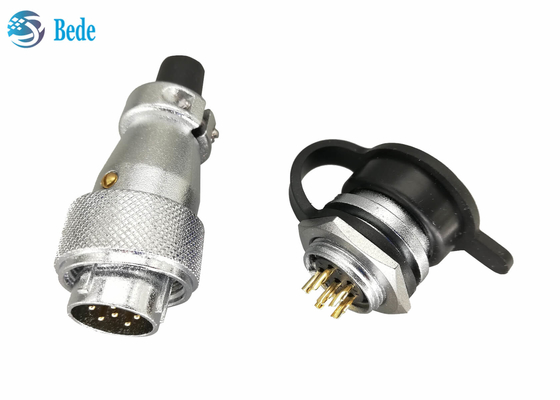

WS16 Circular Connector With Dust Cover Panel Mounting Connectors 8 9 10 Pins





Product Description

  1. WS16 circular connector kits, buy only the female connector or male connector are available
  2. Dust cover and cable protector sleeve material is PVC soft plastic, dustproof and moistureproof,
  3. Material: Main body  is zinc alloy with chrome plated; insulator material is PPS plastic;  contact pins material is brass with gold plated
  4. Pins: 2 3 4 5 6 7 8 9 10
  5. Applicable temperature range: -45℃ ~ + 75℃
  6. applicable cable diameter : 6mm
  7. Panel mounting hole size 16 mm



WS16 Panel Mounting 8 9 10 Pin Circular Connector PVC soft plastic With Dust Cover 0



Product Size

Wiring end:



ΦD L Φd max
21mm 44.8mm 10mm



 Panel mounting end:

d D L L1 L2 Cmax B
M16 M18 9.7mm 26mm 22mm 5mm 21mm



Mounting hole:    Φd=16mm   h=15.4mm



WS16 Panel Mounting 8 9 10 Pin Circular Connector PVC soft plastic With Dust Cover 1



Notice

  Our default that the wiring end is male connector and panel mounting end is the female connector, as shown in the following figure A type, if B type is needed, please feel free contact us

WS16 Panel Mounting 8 9 10 Pin Circular Connector PVC soft plastic With Dust Cover 2



Electrical data



pins rated current rated voltage Withstand voltage working voltage wire section (AWG)
8 pin 5Ampere 400V 1200Volt 400V 18
9 pin 5Ampere 400V 1200Volt 400V 18
10 pin 5Ampere 400V 1200Volt 400V 18

WS16 Panel Mounting 8 9 10 Pin Circular Connector PVC soft plastic With Dust Cover 3

Similar product

This page is about WS16, WS20, WS24, WS28 on sales also, the series also includes wire docking mode, square flange mode, please feel free to contact us if you are interested



WS16 Panel Mounting 8 9 10 Pin Circular Connector PVC soft plastic With Dust Cover 4

Tags:

circular connector

military circular connector

Docking Circular Connectors
