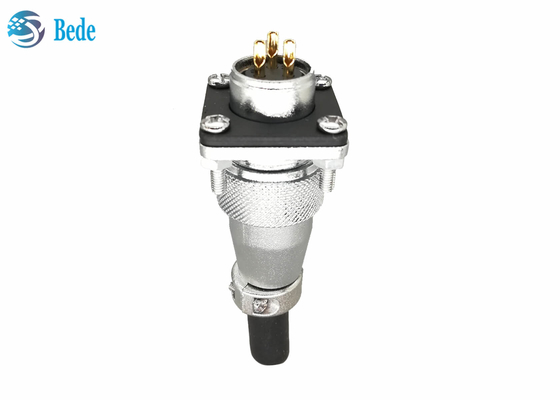

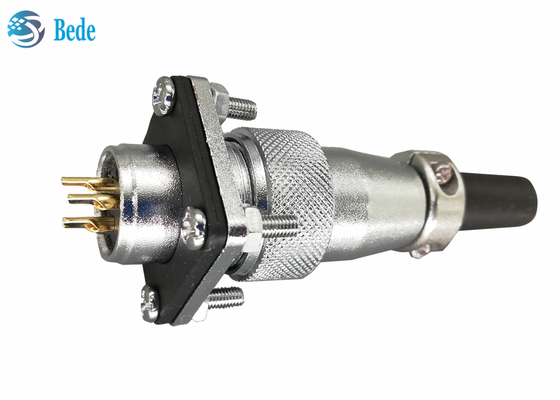

Square Flange And Dust Cover WS20 Circular Connectors With 2 3 4 Pin 500V 25A

  • Square Flange And Dust Cover WS20 Circular Connectors With 2 3 4 Pin 500V 25A
  • Square Flange And Dust Cover WS20 Circular Connectors With 2 3 4 Pin 500V 25A
  • Square Flange And Dust Cover WS20 Circular Connectors With 2 3 4 Pin 500V 25A
Place of Origin China
Brand Name BEDE
Certification CE ROHS
Model Number WS20-SF-2 3 4
Minimum Order Quantity 100 sets
Price negotiation
Packaging Details packing in PE bags and 100 sets per carton
Delivery Time within 3 days after payment
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 5000 sets per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Current 25A Reted Voltage 500V
Weight 0.105kg Applicable Temperature -40~+85℃
Insulation Resistance 2000MΩ Contact Resistance 1mΩ
High Light

500V Square Flange Circular Connectors

,

Circular Connectors 500V 25A

,

Square Flange 4 pin circular connector
Leave a Message
Product Description

WS20 Circular Connectors with square flange and dust cover 2 3 4 pin 500V 25A

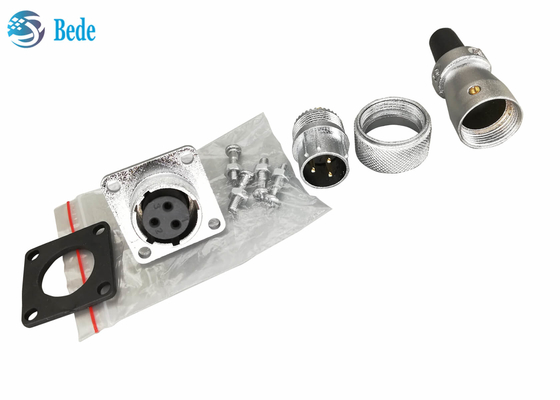

Product structure

  ​1. Rubber pads and dust cover, two models as shown in the figure below, with or without dust cover as required

  2. Housing for panel mounting end, zinc alloy with chrome plated,

  3. Housing for wiring end,zinc alloy with chrome plated,

  4. Nut,zinc alloy with chrome plated, used for fixing male and female after connection

  5. Screws, washers and nuts, stainless steel material, used for panle mounting

  6. Housing for wire,zinc alloy with chrome plated,

  7. Cable protection cover, rubber material,

  8. Insulator, PPS engineering plastic

  9. Contact pins, brass material with gold plated

Square Flange And Dust Cover WS20 Circular Connectors With 2 3 4 Pin 500V 25A 0



Quick detail

  • pins: 2 3 4
  • applicable temperature:-40℃ ~ +75℃
  • applicable wire: 11AWG
  • Plug and unplug times: ≥500
  • The default delivery is the A model in the picture below, if the B model is required, please contact us

Square Flange And Dust Cover WS20 Circular Connectors With 2 3 4 Pin 500V 25A 1



Product Size

   Wiring end:  ΦD=25.8mm     L=49.5mm        Φdmax=11.6mm

   Panel mounting end: Φd1=M20   D=M22   L=14mm    L1=28mm   L2=23mm

                                     B=22mm    Φd=20.5mm     b=22mm   Φ=3.2mm



Square Flange And Dust Cover WS20 Circular Connectors With 2 3 4 Pin 500V 25A 2



Electrical data

pin Rated current Rated voltage Withstand voltage Contact resistance Insulation resistance wire size
2 3 4pin 25A 500V AC1500V*1min 0.001Ω 2000MΩ 11AWG
