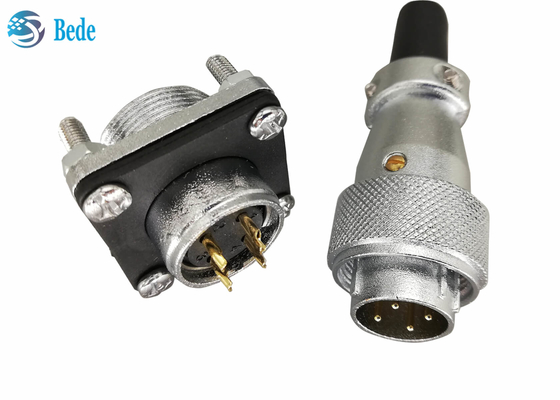

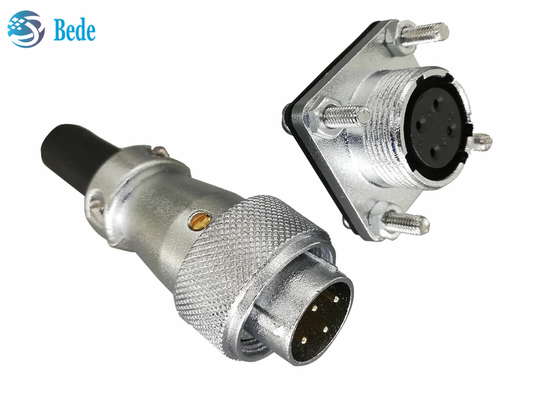

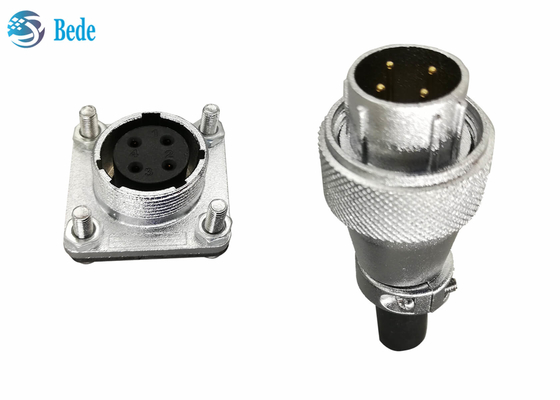

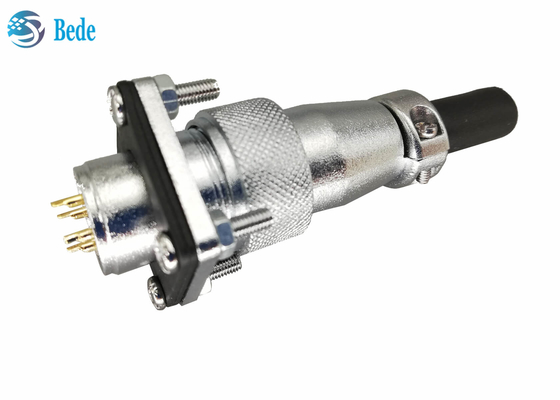

WS20 5 6 7 8 Pin Circular Connector With Square Flange And Dust Cover 500V 10A

WS20 5 6 7 8 Pin Circular Connector With Square Flange And Dust Cover 500V 10A
WS20 5 6 7 8 Pin Circular Connector With Square Flange And Dust Cover 500V 10A WS20 5 6 7 8 Pin Circular Connector With Square Flange And Dust Cover 500V 10A WS20 5 6 7 8 Pin Circular Connector With Square Flange And Dust Cover 500V 10A WS20 5 6 7 8 Pin Circular Connector With Square Flange And Dust Cover 500V 10A

Large Image :  WS20 5 6 7 8 Pin Circular Connector With Square Flange And Dust Cover 500V 10A

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: CE ROHS
Model Number: WS20-SF-5 6 7 8
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: negotiation
Packaging Details: packing in PE bags and 100 sets per carton
Delivery Time: within 2 days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000 sets per day
Contact Now
Detailed Product Description
Rated Current: 10A Reted Voltage: 500V
Weight: 0.105kg Applicable Temperature: -40~+85℃
Insulation Resistance: 2000MΩ Contact Resistance: 2.5mΩ
Highlight:

WS20 8 pin circular connector

,

5 pin circular connector 500V

,

7 pin circular connector 10A

WS20 Circular Connectors With Square Flange And Dust Cover 5 6 7 8 Pin 500V 10A



Product description

   A military-quality connector with a zinc alloy housing, PPS plastic insulator, and gold-plated copper contact pins. Its a panel mounting type, the wiring method is welding, 20.5mm mounting holes and 4 pcs  2.3mm flange mounting holes should be reserved on the panel. This circular connector suitable for -40~+85℃ environment, widely used in military industry, navigation, aviation, oil exploration, industrial control and other fields.



WS20 5 6 7 8 Pin Circular Connector With Square Flange And Dust Cover 500V 10A 0



Quick detail

  • pins: 5 6 7 8
  • applicable temperature:-40℃ ~ +75℃
  • applicable wire: 14AWG
  • Plug and unplug times: ≥500
  • The default delivery is the A model in the picture below, if the B model is required, please contact us

WS20 5 6 7 8 Pin Circular Connector With Square Flange And Dust Cover 500V 10A 1



Product Size

   Wiring end:  ΦD=25.8mm     L=49.5mm        Φdmax=11.6mm

   Panel mounting end: Φd1=M20   D=M22   L=14mm    L1=28mm   L2=23mm

                                     B=22mm    Φd=20.5mm     b=22mm   Φ=3.2mm



WS20 5 6 7 8 Pin Circular Connector With Square Flange And Dust Cover 500V 10A 2



Electrical data

pin Rated current Rated voltage Withstand voltage Contact resistance contact hole wire size
5 pin 10A 500V AC1500V*1min 0.0025Ω 5*Φ1.5 14AWG
6 pin

5A

25A

 500V AC1500V*1min

0.005Ω

0.001Ω

2*Φ1.0

4*Φ2.5

18AWG

11AWG
7 pin 10A 500V AC1500V*1min 0.0025Ω 7*Φ1.5 14AWG
8 pin 10A 500V AC1500V*1min 0.0025Ω 8*Φ1.5 14AWG
