Round Flange 2~7 Pins Gx12 Aviation Connector 3A 200V For Panel Mounting

Large Image : Round Flange 2~7 Pins Gx12 Aviation Connector 3A 200V For Panel Mounting

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	gx12-CF-2~7

Payment & Shipping Terms:

Minimum Order Quantity:	200 sets
Price:	negotiation
Packaging Details:	packing with pe bags and 100 sets per carton
Delivery Time:	within 48 hours after payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	7000 sets per day

Contact Now

Detailed Product Description

Style:	Panel Mounting Connector	Pins:	2~7
Rated Current:	3A	Working Voltage:	200V
Contact Hole:	1.15mm	Mounting Hole:	12mm
Wring Type:	Welding	Main Material:	Zinc Alloy With Nickel Plated
Highlight:	7Pins Gx12 Aviation Connector , Gx12 Aviation Connector 3A 200V , aviator connector gx12 200V

GX12 Aviation Connector With Round Flange 2~7 Pins 3A 200V For Panel Mounting

Description

Military grade connector set, male and female
Female connector is wire welding model, suitable for cable diameter φ6mm
The male connector is panel mount model, with circular flange, the panel needs to reserve 12mm mounting holes, 3 flange mounting holes, diameter φ2.5mm
Applicable ambient temperature -50~+70℃
service life: plug and unplug more than 500 times

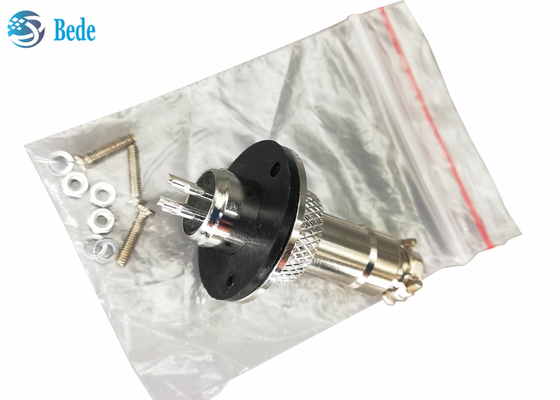

Round Flange 2~7 Pins Gx12 Aviation Connector 3A 200V For Panel Mounting 0

Materials

mine bady, zinc alloy with nickel plated, silver color
insulator, bakelite material, black color
contact pins, brass with silver plated, silver color

Electrical data

pins	rated current	rated voltage	Insulation resistance	Contact resistance
2~7	3A	200	1500MΩ	0.003Ω

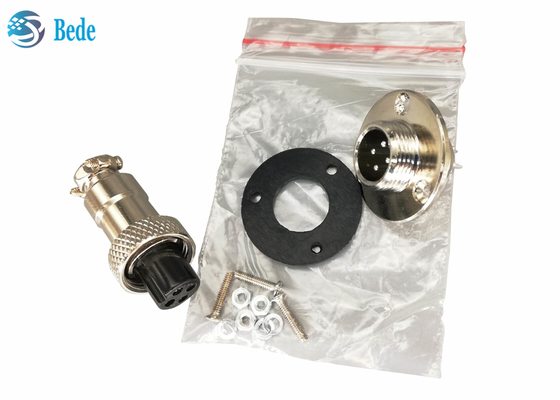

Round Flange 2~7 Pins Gx12 Aviation Connector 3A 200V For Panel Mounting 1

Similar product

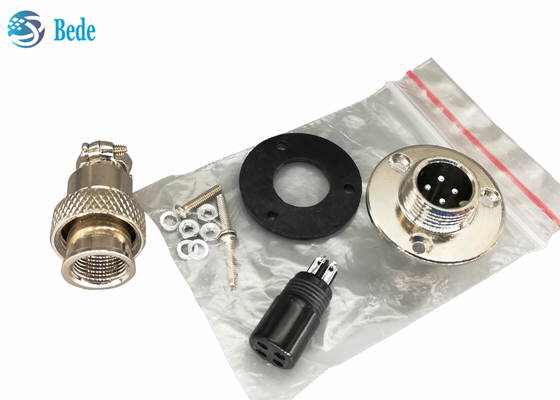

GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and right angle pins, GX12 waterproof type, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking type Round Flange 2~7 Pins Gx12 Aviation Connector 3A 200V For Panel Mounting 2
