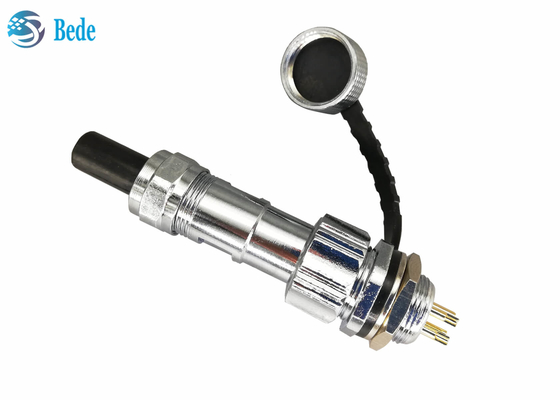

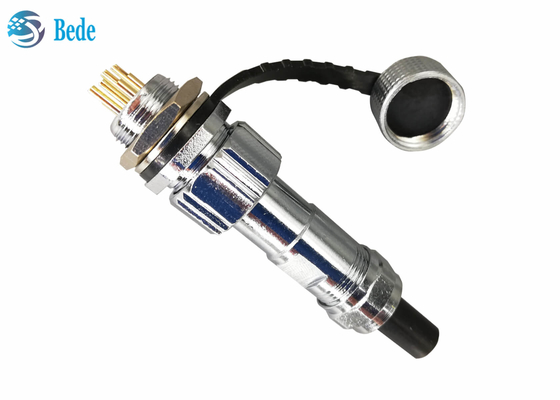

GX12 Panel Mounting Connector Set Female And Male IP67 Waterproof 2~7pin 3A 200V

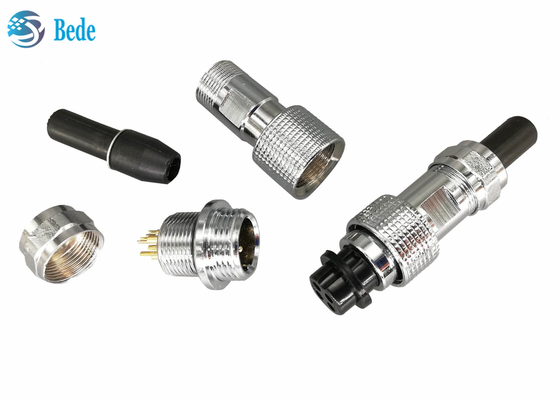

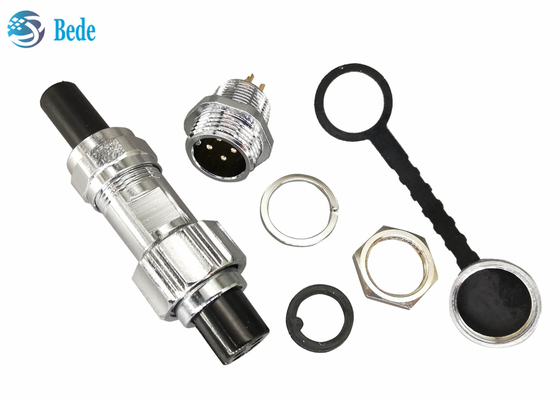

Products structure
1.nut and washer for panel mounting, stainless steel material
2.O-ring with dust cover, protect the female connector when it is not connected
3.Contact pins, brass with gold plated, good electrical conductivity and low contact resistance
4.Male connector, shell material is zinc alloy with nickel plated, insulator material is bakelite
5.O-Ring for waterproof, rubber material
6.Female connector, bakelite shell and brass with gold plated contact pins
7.Nut for fixing male and female after contaction
8.Housing for female connector, Zinc alloy material with nickle plated,
9. Washer, Stainless steel material
10.Cable protector, rubber, for waterproof
11. Nut, for gripping the cable and waterproof
Description
- Military quality connectors
- Waterproof grade IP68
- Panel mount type, mounting hole 12mm
- pins 2~7
- Applicable temperature -50~+70℃
- Applicable cable Φ≤6mm
Similar Product
GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and right angle pins, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking type
