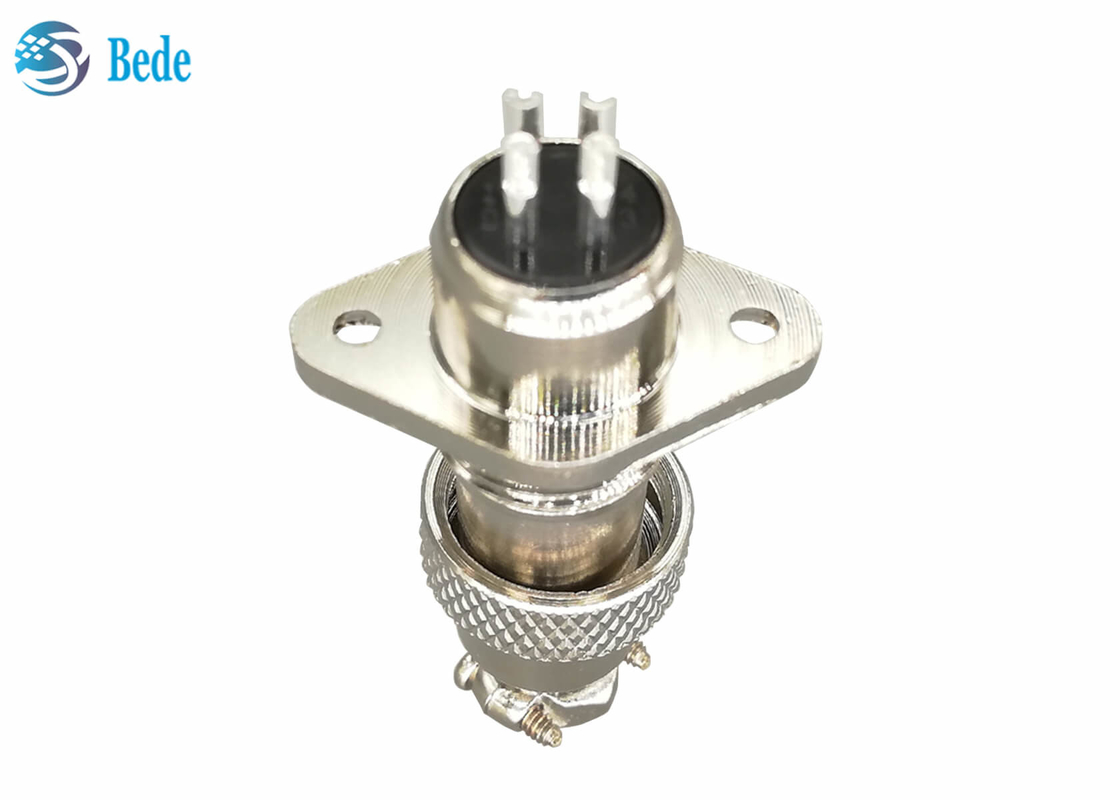

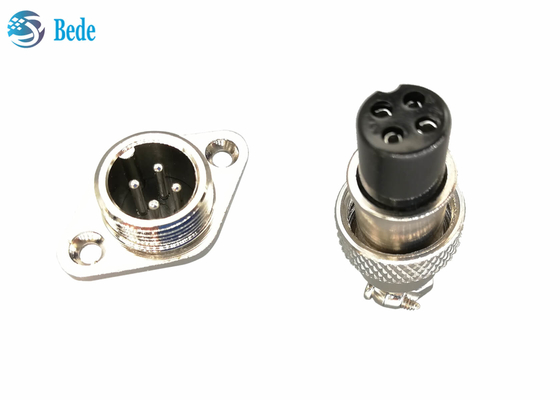

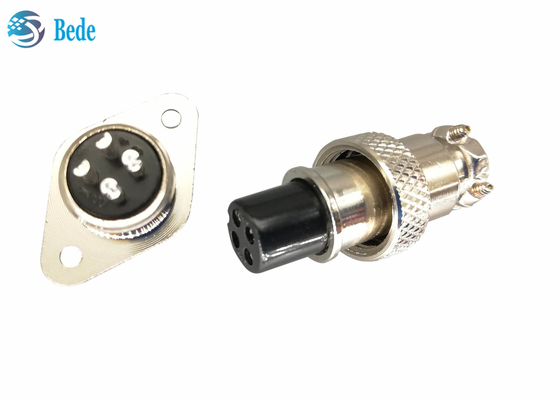

GX16 Aviation Connector Panel Mounting Connector Sets With Rhombus Flange 2~10 Pins
Product structure
1.Contact pins, brass material with silver plated,
2.panel mounting end, male connector(the end be female connector is available, please notify us when you place an order)
3. Insulators,female connector, bakelite material,
4.Nut for fixing male and female connector after connection
5.Housing of female connector, Zinc alloy materials with zinc plated
Electrical data
pins | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
Rated current | 7A | 7A | 7A | 7A | 4A | 4A | 4A | 4A | 4A |
working voltage | 200V | 200V | 200V | 200V | 200V | 200V | 200V | 200V | 200V |
Insulation resistance | 1500V | 1500V | 1500V | 1500V | 1500V | 2000V | 2000V | 2000V | 2000V |
Contact resistance | 3mΩ | 5mΩ | |||||||
Contact hole size | 2.45mm | 2.45mm | 2.45mm | 2mm | 1.15mm | 1.15mm | 1.15mm | 1.15mm | 1.15mm |
All familier
About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.
