| Brand Name: | BEDE |
| Model Number: | GX16-RM-2 3 4 5 |
| MOQ: | 150 sets |
| Price: | negotiation |
| Packaging Details: | packing with PE bags, 150 sets per carton |
| Payment Terms: | T/T, Western Union, MoneyGram |

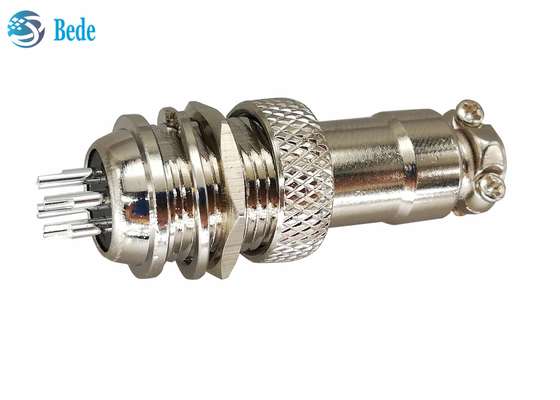

GX16 Aviation Connector Panel Mounting Sets Rear Mounting Style 2 3 4 5 Pins

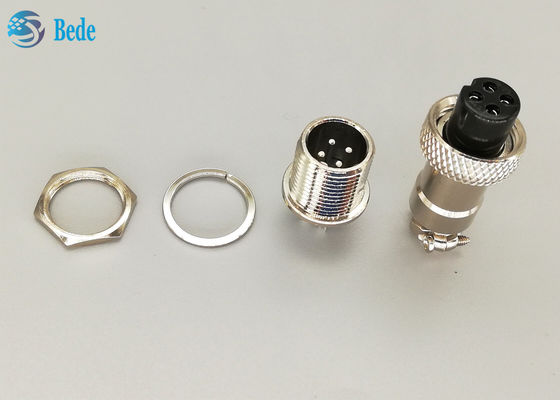

Product structure
1. Contact pins, brass material with silver plated,
2. Male connector, shell material is nickel plated zinc alloy, rear mounting style
3&4, Nut and spring washer for panel mounting, stainless steel material
5. Insulators,female connector, bakelite material, balck color, insulation resistance greater than 1500 MΩ
6. Nut for fixing male and female connector after connection
5. shell of female connector and cable, Zinc alloy materials with zinc plated
Electrical data
| pins | 2 | 3 | 4 | 5 |
| Rated current | 7A | 7A | 7A | 7A |
| working voltage | 200V | 200V | 200V | 200V |
| Insulation resistance | 1500V | 1500V | 1500V | 1500V |
| Contact resistance | 3mΩ | |||
| Contact hole size | 2.45mm | 2.45mm | 2.45mm | 2mm |
Size and pins location
Product size and pins location as following picture, customization is welcome, please feel free to contact us.
All familier
About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.
1.Panel mounting model-- front mounting
2.Cable docking model
3.Rear mounting model
4.Panel mounting model with round flange
5.Panel mounting model with square flange
6.Panel mounting model with rhombus flange
7.PCB welding model with elbow pins
8.PCB welding model with straight pins
9.Panel mounting model with right angle--front mounting
10.Waterproof cable docking model
11.Waterproof panel mount model
12.Panel mounting model with right angle--rear mounting
|
|
