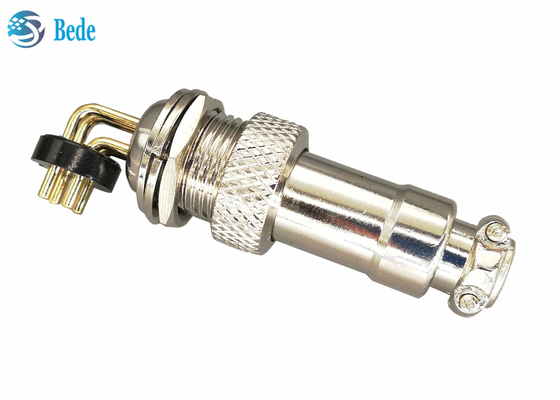

GX16 PCB Welding Connector With 90 Angle Pins Male And Female Connector 2 3 4 5 Pins

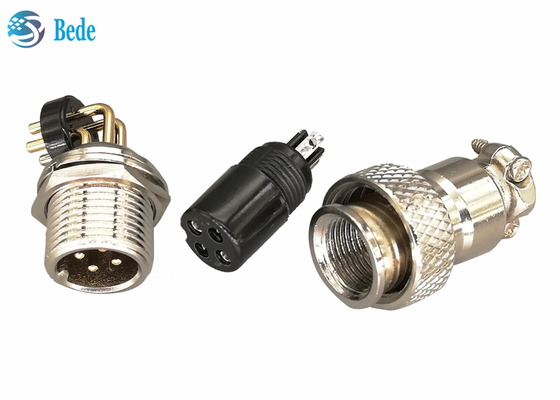

Structure
1. male connector, mounting in panel after welding PCB, shell material is zinc alloy with nickel plated
2.stainless steel nut and washer, for panel mounting
3.Female connector, insulator is black color bakelite
4.Nut for fixing male and female after connection
5.housing of female connector, zine alloy material with nickel plated, for fixing the female connector and cable
6.contact pins, brass material with silver plated
Electrical data
| pins | 2 pin | 3 pin | 4 pin | 5 pin |
| Rated current / A | 7 | 7 | 5 | 5 |
| working voltage / V | 200 | 200 | 200 | 200 |
| Insulation resistance/MΩ | 1500 | 1500 | 1500 | 1500 |
| Contact resistance/ mΩ | 3mΩ | |||
| Contact hole size/mm | 2.45 | 2.45 | 2.45 | 2 |
All familier
About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.
1.Panel mounting model-- front mounting
2.Cable docking model
3.Rear mounting model
4.Panel mounting model with round flange
5.Panel mounting model with square flange
6.Panel mounting model with rhombus flange
7.PCB welding model with elbow pins
8.PCB welding model with straight pins
9.Panel mounting model with right angle--front mounting
10.Waterproof cable docking model
11.Waterproof panel mount model
12.Panel mounting model with right angle--rear mounting
|
|
