GX16 Aviation Connector Kits PCB Welding Style 7~10 Pin Plug And Socket 4A 200V

Large Image : GX16 Aviation Connector Kits PCB Welding Style 7~10 Pin Plug And Socket 4A 200V

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	GX16-PW-S-7 8 9 10

Payment & Shipping Terms:

Minimum Order Quantity:	150pcs
Price:	negotiate
Packaging Details:	packing with PE bag, 150pcs per carton
Delivery Time:	4 days after payment
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	5000pcs per week

Contact Now

Detailed Product Description

Rated Current:	4A	Working Voltage:	200V
Contact Resistance:	3mΩ	Applicable Wire:	Φ7.5mm
Applicable Temperatrue:	-55~+75℃	Pins:	7 8 9 10
Highlight:	Gx16 Aviation Connector 10Pin , Gx16 Aviation Connector 4A 200V , gx16 7 pin 4A 200V

GX16 Aviation Connector Kits PCB Welding Style 7~10 Pin Plug And Socket 4A 200V

Product Description

Aviation connector set, male and female connector, PCB soldering model, rear mounting style
Suitable for temperature range of -45~+75℃
Suitable for wire outer diameter Φ≤7.5mm
Silver color usually, black color is avaiable,

Electrical date

pins	7	8	9	10
Rated current	4A	4A	4A	4A
working voltage	200V	200V	200V	200V
Insulation resistance	1500V	1500V	1500V	1500V
Contact resistance	≤3mΩ			≤5mΩ
Contact hole size	1.15mm	1.15mm	1.15mm	1.15mm

Materials and Surface Treatment

Parts	material	surface treatment
Shell	Zinc alloy	nickel plated
insulator	bakelite	non
Contact pins	brass	silver plated

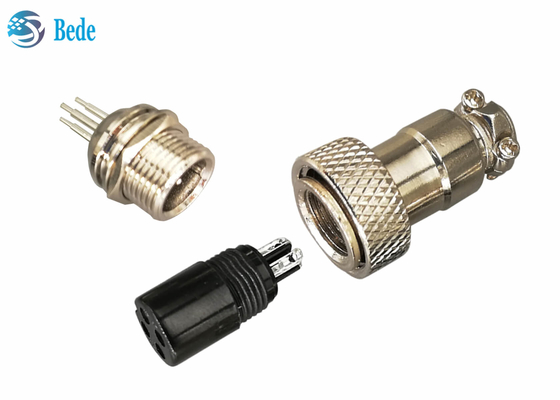

GX16 Aviation Connector Kits PCB Welding Style 7~10 Pin Plug And Socket 4A 200V 0

All familier

About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.

1.Panel mounting model-- front mounting

2.Cable docking model

3.Panel mounting model--Rear mounting

4.Panel mounting model with round flange

5.Panel mounting model with square flange

6.Panel mounting model with rhombus flange

7.PCB welding model with elbow pins

8.PCB welding model with straight pins

9.Panel mounting model with right angle--front mounting

10.Waterproof cable docking model

11.Waterproof panel mount model

12.Panel mounting model with right angle--rear mounting

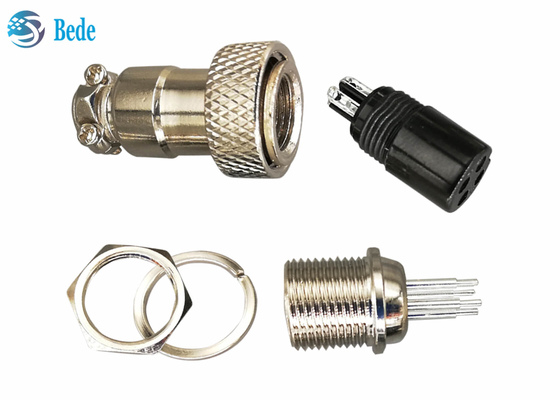

GX16 Aviation Connector Kits PCB Welding Style 7~10 Pin Plug And Socket 4A 200V 1
