Gx16 Aviation Connector
>
Welding Type 2~10 Pin GX16 Aviation Connector 200V Black Color Panel Mounting Style

Welding Type 2~10 Pin GX16 Aviation Connector 200V Black Color Panel Mounting Style

Brand Name: BEDE
Model Number: GX-16-2~10-B
MOQ: 150 sets
Price: negotiation
Packaging Details: packing in PE bag each and 150sets per carton
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS
Rated Current:
4~7A
Working Voltage:
200V
Pins:
2~10 Pin
Applicable Temperature:
-55~+75℃
Applicable Cable:
Φ7.5mm
Color:
Black
Supply Ability:
8800 sets per day
Highlight:

Welding GX16 Aviation Connector

,

GX16 Aviation Connector 200V

,

gx16 aviation plug 200V

Product Description

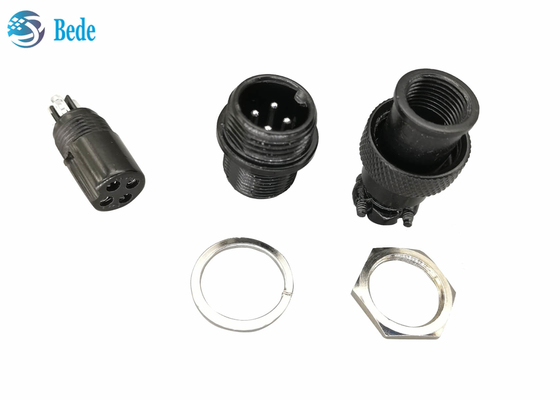

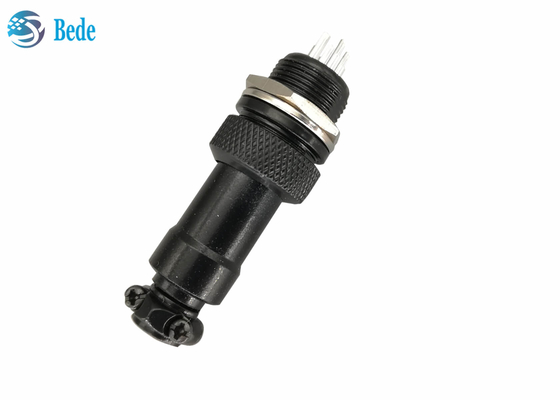

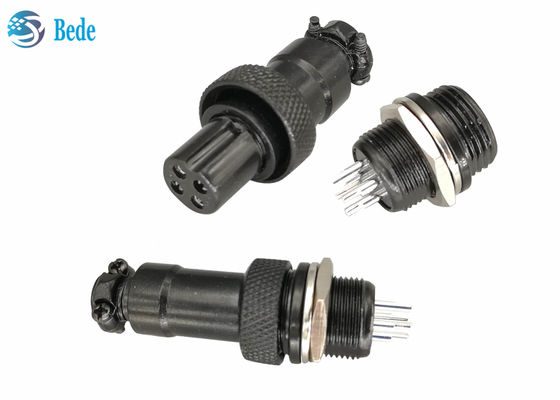

GX16 Aviation Connector Black Color Panel Mounting Style Welding Type 2~10 Pin



Structure

  1. Insulator, bakelite material, black color, insulation resistance greater than 1500 MΩ
  2. nut, used to lock the male and female after connection
  3. male connector, mountiing in the panel, zinc alloy materials with Oxidation treatment
  4. contact pins, brass material with silver plated
  5. nut and spring washer, used for mounting the male end, stainless steel materials

Welding Type 2~10 Pin GX16 Aviation Connector 200V Black Color Panel Mounting Style 0



Electrical data

pins 2 pin  3pin 4pin 5pin 6 7 8 9 10 pin
rated current 7A 5A 5A 4A
working voltage 200V
Contact resistance 3mΩ max
Insulation resistance 1500MΩ
Withstand voltage 1500V
Contact hole size Φmm 2.45 2.45 2.00 1.15



All familier

About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.
