Gx16 Aviation Connector
>
GX16 Aviation Waterproof IP68 Cable To Cable Docking Connector Style 2~10 Pin

GX16 Aviation Waterproof IP68 Cable To Cable Docking Connector Style 2~10 Pin

Brand Name: BEDE
Model Number: GX-16-WP-2~10
MOQ: 150 sets
Price: negotiation
Packaging Details: packing in PE bag each and 150sets per carton
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS
Rated Current:
4~7A
Working Voltage:
200V
Mounting Hole:
M16
Applicable Temperature:
-45~+85℃
Applicable Cable:
Φ7.0mm
Waterproof:
IP68
Supply Ability:
7800 sets per day
Highlight:

GX16 Cable Docking Connector

,

GX16 Aviation Docking Connector

,

GX 16 aircraft cable connectors

Product Description

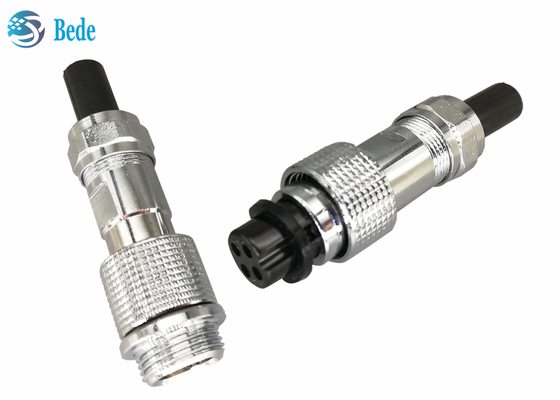

GX16 Aviation Connector Waterproof IP68 cable to cable docking connector Style 2~10 Pin

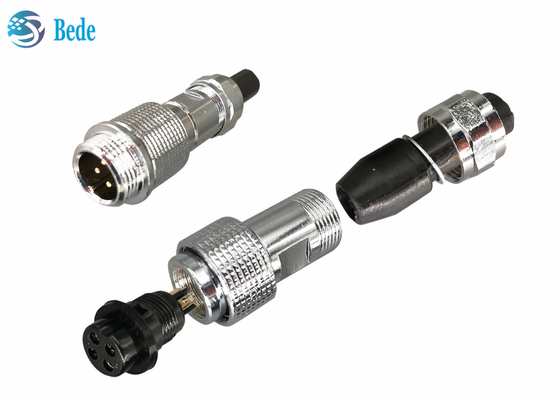

Structure

1.Male connector, shell material is zinc alloy with nickel plated, contact pins material is brass with gold plated

2.Optional accessories, protective cover, zinc alloy and rubber materials

3.O-rings for waterproofing

4.Female connector, black bakelite material, contact pins material is brass with gold plated

5,Housing of female connector,zinc alloy with nickel plated

6/7/8,Cable gripping parts for waterproofing,

Notice: It is critical that all nuts are tightened after connection, otherwise the waterproofing effect may be adversely affected

GX16 Aviation Waterproof IP68 Cable To Cable Docking Connector Style 2~10 Pin 0







Electrical data

pins 2 pin  3pin 4pin 5pin 6 7 8 9 10 pin
rated current 7A 5A 5A 4A
working voltage 200V
Contact resistance 3mΩ max
Insulation resistance 1500MΩ
Withstand voltage 1500V
Contact hole size Φmm 2.45 2.45 2.00 1.15

GX16 Aviation Waterproof IP68 Cable To Cable Docking Connector Style 2~10 Pin 1

All familier

About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.
